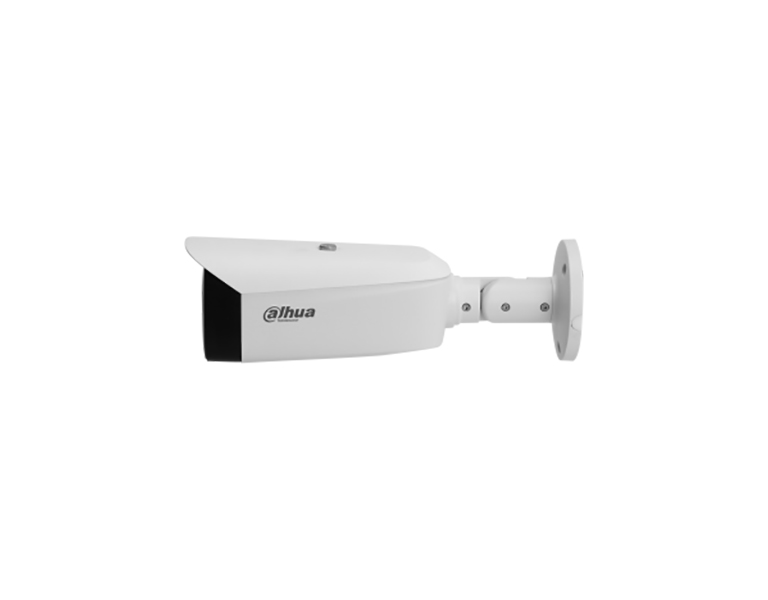

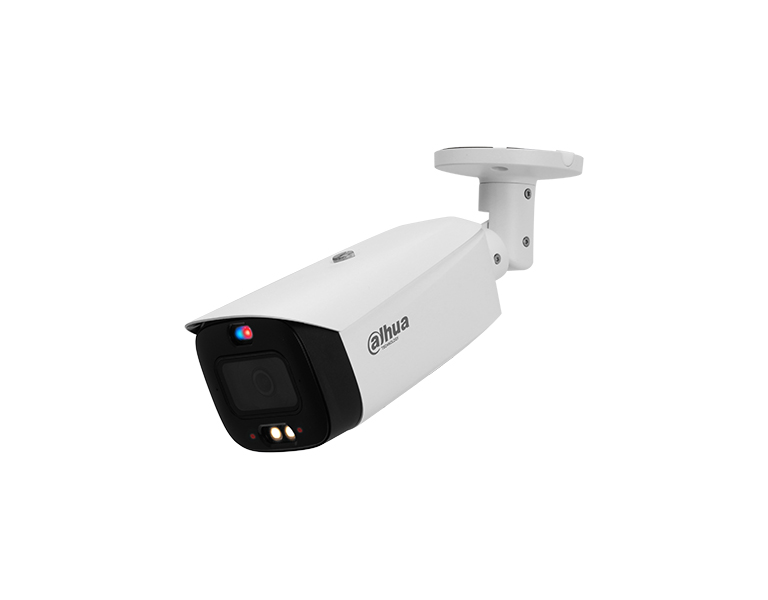

DAHUA IPC-HFW3549T1-AS-PV-0280B-S5 5MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera (2.8mm)

Κωδικός προϊόντος:
IPC-HFW3549T1-AS-PV-0280B-S5
Κατασκευαστής Dahua
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών
DAHUA IPC-HFW3549T1-AS-PV-0280B-S5 5MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera (2.8mm)
• 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
• Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk
• 12 VDC/PoE power supply
• IP67 protection
• Sound and light alarm (red and blue lights)
• SMD 4.0
• One-tap arming/disarming through alarm input

Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Functions
Siren And Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 36 μήνες
SPECIFICATIONS
Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (IR)
Up to 30 m (warm light)
Illuminator On/Off Control Auto/ manual
Illuminator Number 2 (IR LED)
2 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  2.8 mm
Mount Type M12
Field of View H: 97°, V: 70°, D: 128°
Iris Type Fixed
Close Focus Distance 1.5 m
DORI Distance Detect: 66.0 m
Observe: 26.4 m
Recognize: 13.2 m
Identify: 6.6 m
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD  SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG (only supported by sub stream)
Smart Codec Smart H.265+
Smart H.264+
AI Coding AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)
Video Frame Rate Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@ (1 fps–25/30 fps)
*The values above are the max. frame rates of each stream, for multple streams, the values will be subjected to the total encoding capacity
Stream Capability 3 streams
Resolution 5M (2880 × 1620/2960 × 1668), 4M (2688 × 1520/2560 × 1440), 3M (2304×1296/2048 × 1536), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
BLC Yes
HLC Yes
Bit Rate Control VBR, CBR, ABR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto, manual
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Noise Reduction 3D NR
Defog Yes
Smart Illumination Yes
Mirror Yes
Privacy Masking 4 areas
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Audio Compression PCM, G.711a, G.711Mu, G.726, G.723
Built-in speaker Yes, built-in speaker
Alarm
Alarm Event No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, scene changing, audio detection, voltage detection, external alarm, SMD, security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption, Firmware encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/ MAC filtering, Generation and importing of X.509 ce rtification,syslog,HTTPS,802.1x,Trusted boot, Trusted execution, Trusted upgrade
Network Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
Interoperability ONVIF (Profile S,Profile G,Profile T), CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP, SFTP, Micro SD card (support max. 256 G), NAS
Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Client IOS, Android
Certification
Certifications CE-LVD: EN 62368-1
CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3–5 VDC
Alarm Output 1 channel out: 300mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 3.7 W (12 VDC), 4.8 W (PoE)
Max. (pulling stream+ warning light+ speaker+ warm light on): 8.3 W (12 VDC), 8.8 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C
Storage Humidity ≤95% (RH), non-condensing
Protection Grade IP67
Structure
Casing Metal + plastic
Dimensions 288.4 mm × 94.4 mm × 84.7 mm
Net Weight 1.0 kg
Gross Weight 1.23 kg
