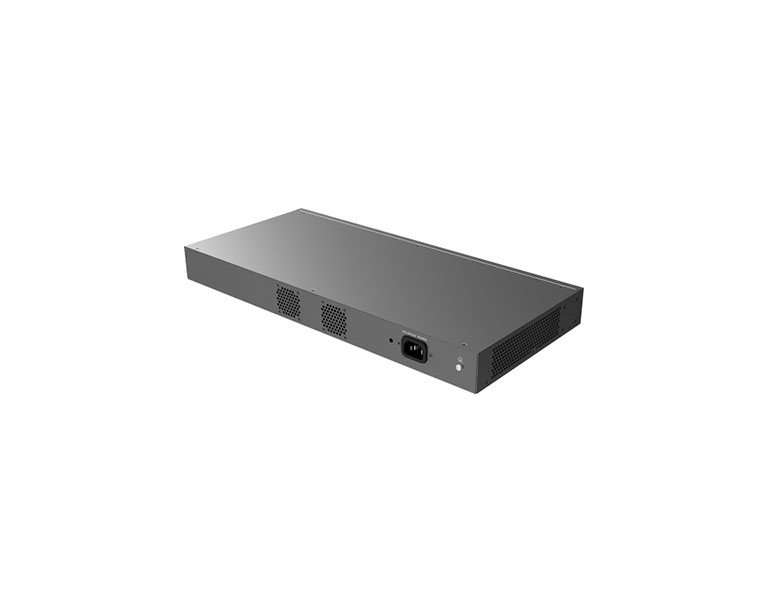

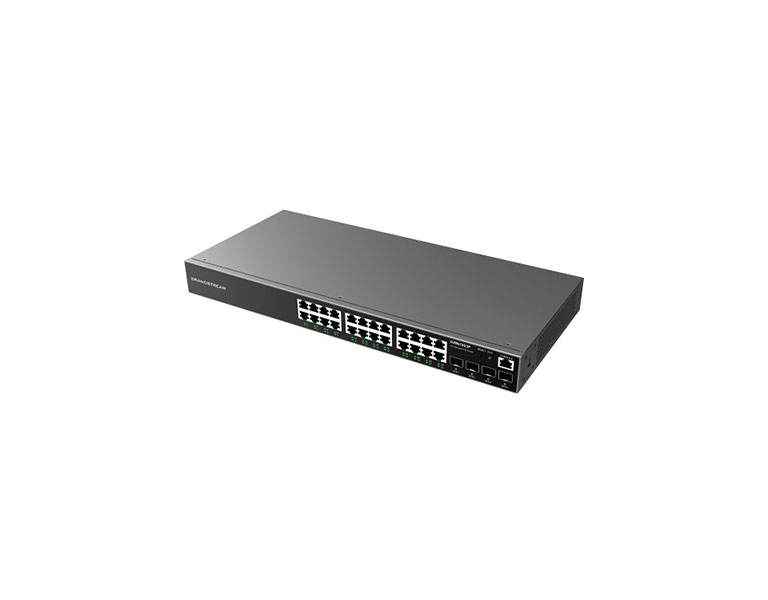

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for automated detection & prioritization of latency sensitive voice/video traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local network controller embedded in the GWN7800 series switch, any GWN7000 series router with integrated local master, Grandstream’s free on-premise network management software (GWN Manager), as well as Grandstream’s cloud network management platform (GWN.Cloud). The GWN7800 series are best value enterprisegrade managed network switches for small-to-medium businesses.

Features:
• 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
• Advanced QoS auto detects and prioritizes latencysensitive audio/video/RTP/ VoIP/SIP packets

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων:	Επισκευή - Αντικατάσταση:
20 ημέρες	36 μήνες

Specifications
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports	24
Gigabit SFP Ports	4
Console	1
# of PoE Ports	24
Integrated Power Supply	400W
Max Output Power per PoE Port	30W
Max Total PoE Output Power	360W
PoE Standards	IEEE 802.3af/at
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	28Gbps
Switching Capability	56Gbps
Forwarding Rate	41.66M packets per second
Packet Buffer	4.1MB
Switching	• 8K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP • 8 link aggregation groups • Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast	IGMP Snooping, MLD Snooping, MVR
QoS/ACL	• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance	CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security	• User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
LEDs	1x tri-color LED for device tracking and status indication, 28x green-color LEDs for data ports, 24x yellow-color LEDs for PoE ports
Fan	2
Environmental	Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Dimensions	440mm(L)200mm(W)44mm(H)
Unit Weight(TBD)	3.3Kg
Package Content	• 1x Switch • 1x 1.2m(10A) AC Cable • Rack-mounting Standard Brackets • 1x Ground Cable • 4x Rubber Feet • 2x Lug Ear
Compliance	FCC, CE, RCM, IC, UKCA
