• 5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for all PoE ports^*• Requires no configuration and installation

Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
QoS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων:	Επισκευή - Αντικατάσταση:
20 ημέρες	60 μήνες

HARDWARE FEATURES
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m)
Max Power Consumption	11.44 W (220 V/50 Hz. no PD connected) 75.74 W (220 V/50 Hz. with 65 W PD connected)
Max Heat Dissipation	39.03 BTU/h (no PD connected) 258.42 BTU/h (with 65 W PD connected)
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 Power Supply: 65 W

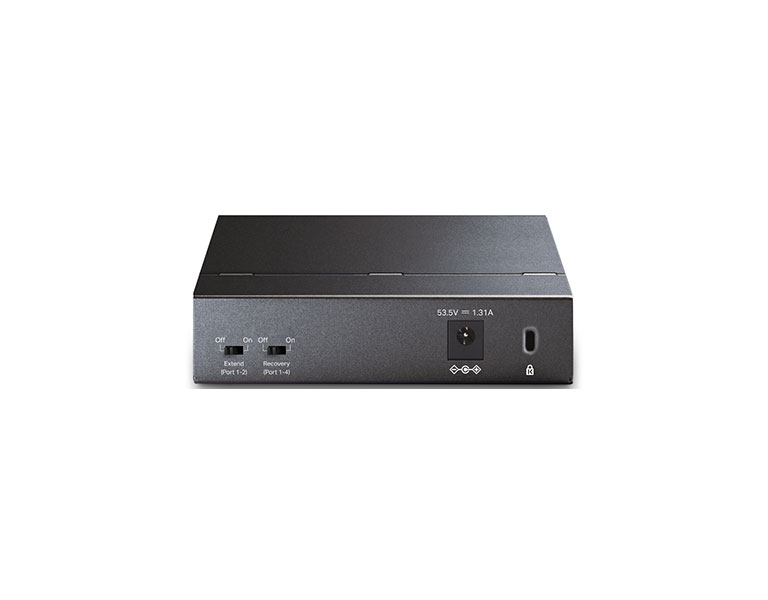

External Power Supply	External Power Adapter (Output: 53.5 VDC / 1.31 A)
Transmission Method	Store-And-Forward
Switch Capacity	10Gbps
Mac Address Table	2K
Fan Quantity	Fanless
LED	Power, Link/Act, PoE Status, PoE Max
Dimensions ( W x D x H )	99.8 x 98 x 25 mm
Certification	FCC, CE, RoHS
Package Contents	Switch Power Adapter Installation Guide

Note: PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
