• 120 W PoE Budget : 16 × 802.3af/at-compliant PoE+ ports with a total power supply of 120 W^*.
• Gigabit Ethernet Ports: 16 x gigabit PoE+ RJ45 ports provide high-speed connections.
• Extended Distance Transmission: Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode: Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
• Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance.
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and Play: Plug and play with no configuration required

Dedicated 16 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 16× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required
1) Plug In
2) Connect The Devices
3) Enjoy

Ideal for IP Surveillance —Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management
When total power consumption exceeds 120 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

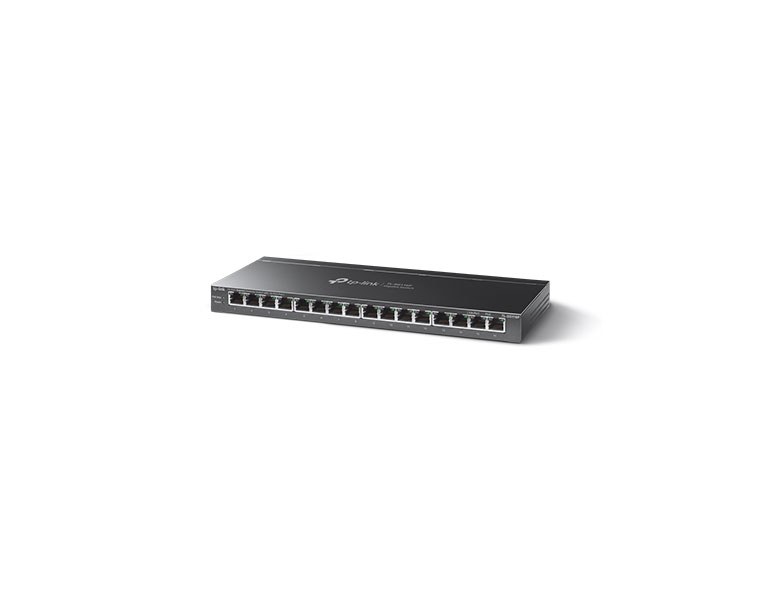

Durable Metal Casing
The interior components of TL-SG116P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116P delivers switching performance you can depend on.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων:	Επισκευή - Αντικατάσταση:
20 ημέρες	60 μήνες

SPECIFICATIONS
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
Network Ports	16 10/100/1000 Mbps RJ45 Ports
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m)
PoE	PoE Standard: IEEE 802.3af, IEEE 802.3at PoE Port 1–16, up to 30 W per port PoE Power Budget 120 W*
Auto-Negotiation	YES
Auto MDI/MDIX	YES
PoE Power on RJ45	Power+: pin 3 & pin 6 Power -: pin 1 & pin 2
Max Power Consumption	11.72 W (220 V/50 Hz no PD connected) / 11.56 W (110 V/60 Hz no PD connected) 142.51 W (220 V/50 Hz with 120 W* PD connected) / 144.28 W (110 V/60 Hz with 120 W* PD connected)
Max Heat Dissipation	39.85 BTU/h (220 V/50 Hz no PD connected) / 39.31 BTU/h (110 V/60 Hz no PD connected) 484.53 BTU/h (220 V/50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V/60 Hz with 120 W* PD connected)
Forwarding Mode	Store and Forward
Switch Capacity	32 Gbps
MAC Address Table	8K, Auto-learning, Auto-aging
Extend Mode	YES (for Ports 1–4)
Priority Mode	YES (for Ports 1–4)
Isolation Mode	YES (for Ports 1-7/8-14)
PoE Auto Recovery	YES (for Ports 1-16)
Flow Conrol	YES
Fanless	YES
LED	Power, Link/Act, PoE Status, PoE MAX
Dimensions	286 x 111.7 x 25.4 mm
Certification	CE, FCC
Environment	Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing

Note:
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
