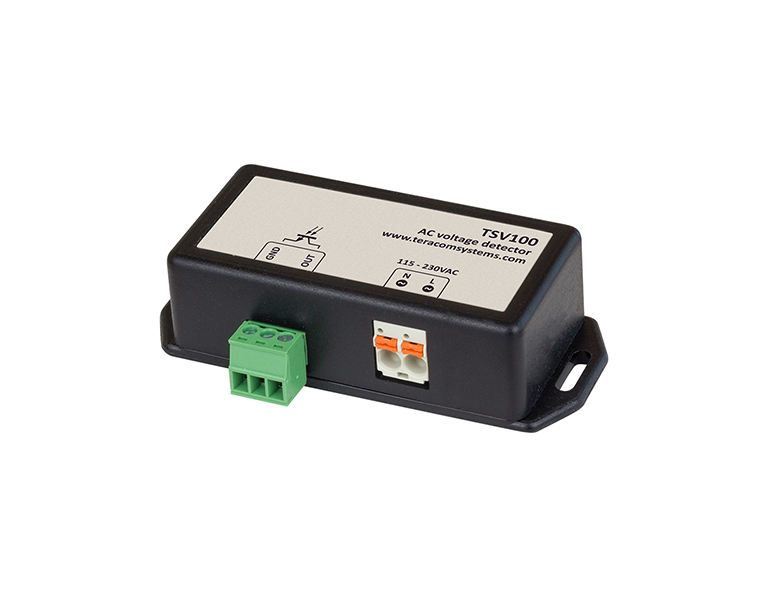

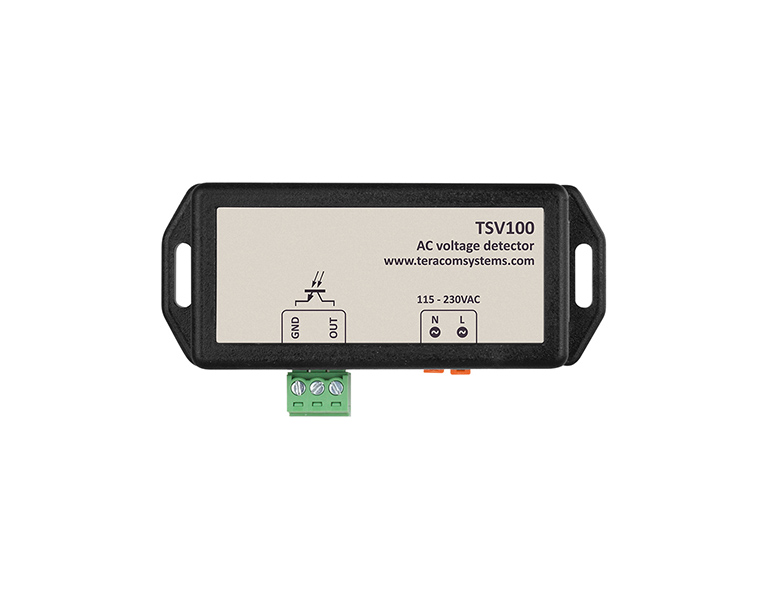

Teracom TSV100 - AC voltage detector
TSV100 is an AC voltage detector with optoisolated open collector output. It detects voltage in two ranges – from 85 to 250 VAC (default) and from 170 to 250 VAC. The range is settable by jumper inside the detector.
TSV100 utilizes only electronic components, there aren’t any mechanical and electro-mechanical components. This improves detector’s durability.
Galvanic isolation is achieved by used optoisolator on the output. The detector is powered by monitored voltage only.
The AC voltage detector can be used to indicate the presence or absence of line voltage in uninterruptible power supplies (UPS), power supplies, electrical sources and power lines.
Features:
• Galvanically isolation between AC line and digital output
• Two AC voltages detection levels, settable by a jumper
• Usable for 115 and 230 VAC networks
• IP30 ingress protection
• Low-temperature drift
• Powered by monitored voltage only
Applications:
• AC Voltage monitoring on input of UPS (uninterruptible power supply)
• Alarm notification for AC voltage failure
• Smart consumtion managment on battery operation
• Industrial automation processes
The detector can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Remote IO module TCW122B-CM
• GSM-GPRS remote monitoring controller TCG120
• Ethernet digital IO module TCW181B-CM
• IP watchdog monitoring module TCW122B-WD
• Remote environmental monitoring module TCW112-CM
• IP watchdog relay board TCW112-WD
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | ||
| Working voltage range | 0 to 250 VAC | |
| Detection level with open jumper (default) | 85 VAC | |
| Detection level with close jumper | 170 VAC | |
| Threshold | ±8 VAC | |
| Operating temperature range | 0 to 40 °C | |
