• Authentication to prevent forgery
• Jamming detection and communication channels encryption
• Tampering alarm
• Uses Wi-Fi, Ethernet, WCDMA and GSM to send alarms to the Central Monitoring Station and the system’s owner
• Sends a notification in case of electrical power loss and operates for up to 16 hours from battery backup
• Checks the functionality of detectors at least every 12 seconds

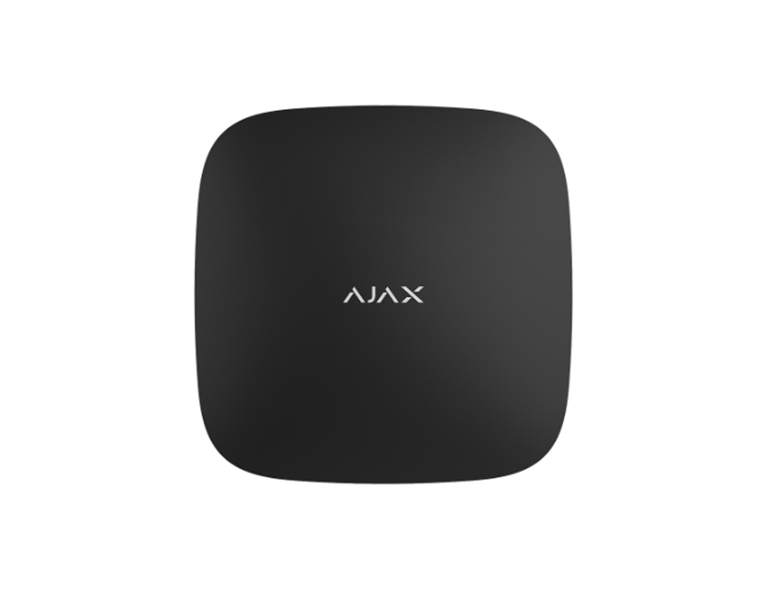

Hub Plus
Second-generation intelligent control panel with four communication channels, a new powerful processor, tripled RAM capacity and doubled flash memory capacity. The Hub Plus monitors the operation of all Ajax detectors and instantly alerts the owner and the security company.

Protects large areas
The Hub Plus is designed to protect large facilities with a great number of rooms and people. New powerful processor and increased memory capacity have expanded the capabilities of the control panel: up to 150 detectors and 50 cameras can be connected to the hub and you can add 99 users and create 25 groups for room security management.

Uses all possible alarm transmission methods
The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.

Increases stability by 4 times
The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.

Improved reliability
The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.

Safe home and office automation
Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system; program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustainable anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost.

Simplifies installation and set up
The Hub Plus has a Wi-Fi module now, so it is not necessary to lay a cable for connection to the router. The control panel is ready to operate straight out the box. It is set using the mobile application, and the detectors are connected with just one click. The device can be mounted in just a few minutes using the SmartBracket mount.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Technical Specifications
Classification	Intelligent central unit of the security system with Wi-Fi and Ethernet modules, and dual SIM
Installation	Indoors
Connected devices	150
Video surveillance	Up to 50 cameras or DVRs
Users	99
Rooms	50
Security groups	25
Connected ReX	5
Connected sirens	up to 10 sirens or keypads with a built-in siren
Scenarios	64
Mobile Apps	iOS 13.0 and later Android 5.0 and later
Communication channels	• Ethernet: 2G / 3G • Wi-Fi: 2.4 GHz (802.11 b/g/n)
Alarm signal	Delivery time: 0.15 s Types of notifications: SMS, call, push
Switching between 2G and 3G	Instant
Switching between SIM cards	4 minutes
Communication with the CMS	Contact ID, SIA
Processor	ARM
Operating system	OS Malevich
Power supply	110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX Built-in back-up battery: Li-Ion 2 А·h Up to 16 hours of battery life when Ethernet and Wi-Fi connections are disabled Energy consumption from the grid — 10 W
Jeweller radio protocol	• Communication range with detectors — up to 2000 m in an open area • Two-way communication between devices • Self-adjusting RF output power — up to 20 mW • Block encryption based on AES algorithm • Detector polling period — 12–300 seconds • Frequency hopping
SIM card support	2 × Micro SIM (3FF)
Operating temperature range	−10°C to +40°C
Anti-sabotage features	• Protection against fraud • Jamming detection and notification • Tamper-resistant
Remote set up	Yes
Dimensions	163 × 163 × 36 mm
Weight	350 g
Package Contents	Ajax Hub Plus intelligent central unit SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM cards (depending on region) User’s guide
