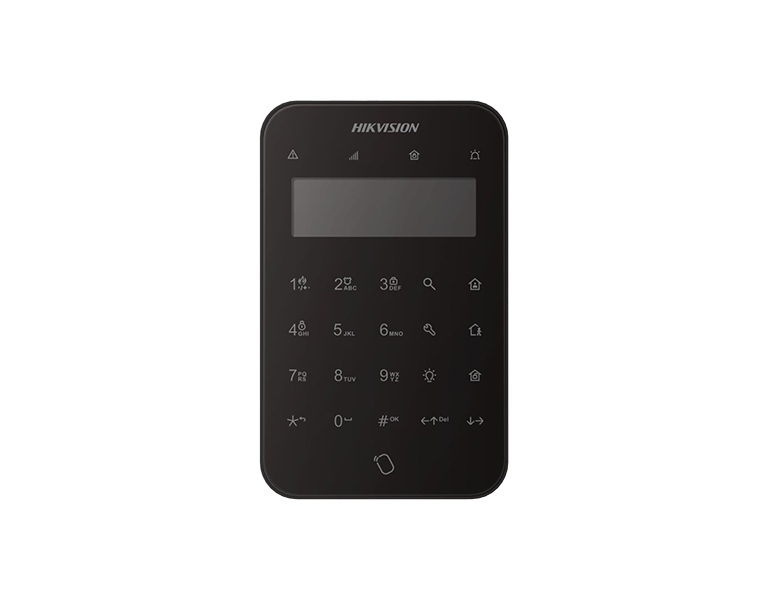

Hikvision DS-PK1-LT-WE-B AX Pro Wireless LCD Keypad, Black
Product Code:
DS-PK1-LT-WE-B
Manufacturer Hikvision
- Description
- Specifications
- Downloads
- Reviews
Hikvision DS-PK1-LT-WE-B AX Pro Wireless LCD Keypad, Black
• 868MHz two-way wireless communication
• LCD screen and LED to indicate system status
• System configuration through LCD screen
• Multiple operations like stay/away arm, disarm, silent alarm, output control
• One-Push fire alarm, panic alarm, and medical alarm
• Full touch key design with LED backlight
• Fully remote configurable through App
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor and outdoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Technical specifications | |
| Hardware features | |
| Tag reader built in | Supported |
| Serial port | 3 |
| Tamper-Proof | Supported, front and rear |
| Buzzer | Supported |
| Power switch | Power on/off |
| Electrical characteristics | |
| Battery type | Four CR123 batteries |
| Operation humidity | 10% to 90% |
| Operation temperature | -10 °C to 55 °C |
| Battery life span | Up to 2 years (standby time) |
| Battery life | Up to 2 years |
| Power consumption | • Quiescent current: 80uA • Max current: 300mA • Voltage: 3v |
| Wireless transmission | |
| RF frequency | 868 MHz |
| RF modulation | 2GFSK |
| RF distance | 1200m (open area) |
| Wireless technology | Tri-X Wireless Technology |
| Display | |
| Numeric key | Number key: 0-9 Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left |
| LED Indicator | Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red) |
| General | |
| Installation method | Wall-mounting |
| Dimension(WxHxD) | 174.63 mm × 109.62 mm × 25.25 mm |
| Weight | With batteries: 348 g Without batteries: 282 g |
| Color | Black |
