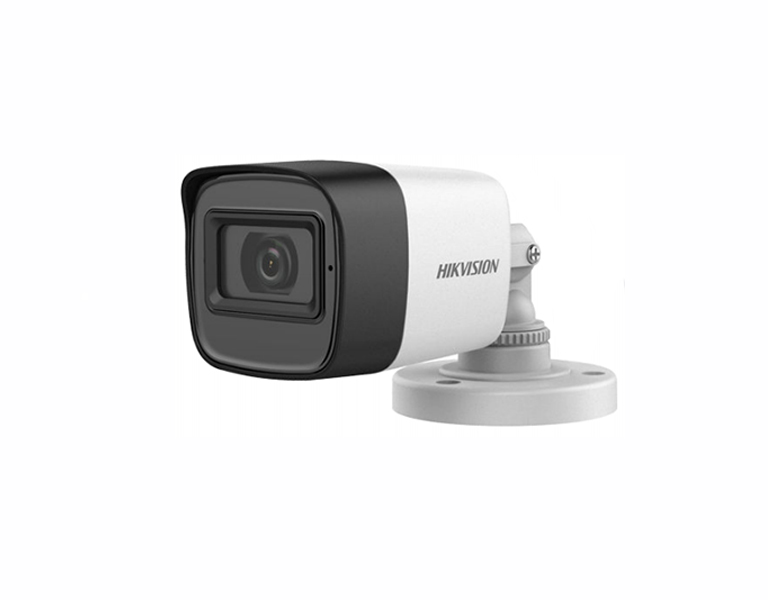

Hikvision DS-2CE16H0T-ITFS-2.8 5MP Audio Fixed Mini Bullet Camera (2.8mm)

Product Code:
DS-2CE16H0T-ITFS-2.8
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2CE16H0T-ITFS-2.8 5MP Audio Fixed Mini Bullet Camera (2.8mm)

CAUTION!!! Package doesn't include power supply!!!

• 5 MP, 2560 x 1944 resolution
• Digital WDR
• 2.8 mm fixed focal lens
• Smart IR, up to 30 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 5 MP CMOS
Max. Resolution 2560 (H) × 1944 (V)
Min. Illumination 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm fixed lens
Focal Length & FOV horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
Lens Mount M12
Image Settings Brightness, Sharpness, Mirror, Smart IR
Frame Rate TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Image Enhancement BLC
White Balance ATW/MANUAL
AGC Support
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Material Metal
Dimension 58 mm × 61 mm × 158.6 mm
Weight Approx. 292 g
Operating Condition -40° C to 60° C , Humidity 90% or less (no condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.7 W
IR Range Up to 30 m
Approval
Protection IP67
There are yet no reviews for this product.
