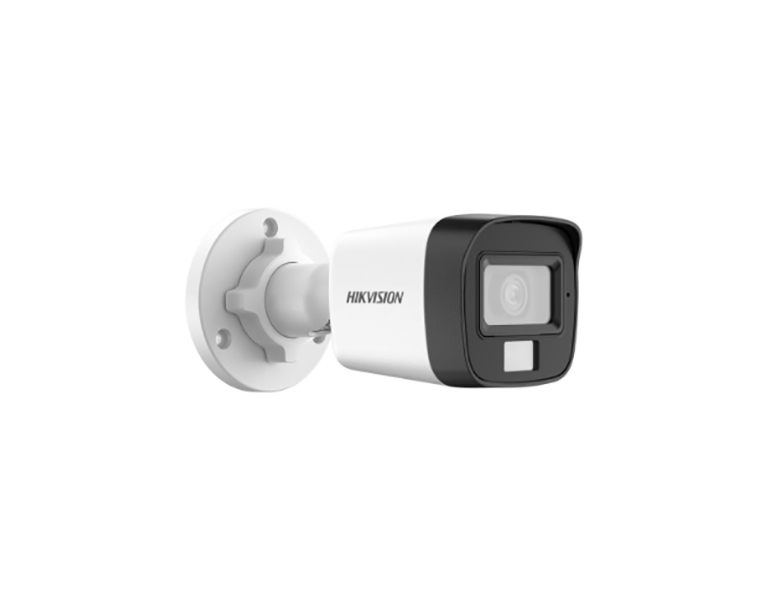

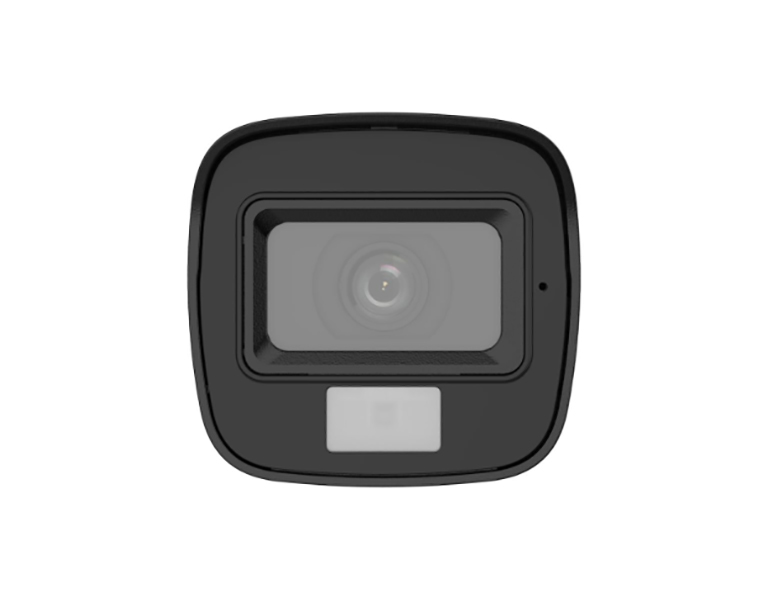

Hikvision DS-2CE16K0T-LFS-2.8 3K Dual Light Audio Fixed Mini Bullet Camera (2.8mm)

CAUTION!!! Package doesn't include power supply!!!
Dual-Light technology is only supported if the camera is connected to a recorder with AcuSense technology!

• High quality imaging with 3K, 2960 × 1665 resolution
• 2.8 mm fixed focal lens
• Up to 30 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 3K CMOS
Signal System PAL/NTSC
Max. Resolution 2960 (H) × 1665 (V)
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Illuminator
Lens Type 2.8 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
Lens Mount M12
Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Built-in Microphone Yes
General
Material Metal
Dimension 138.8 mm × Ø 70 mm
Weight Approx. 270 g
Operating Condition -40 °C to 60 °C
humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.3 W
Approval
Protection IP67
