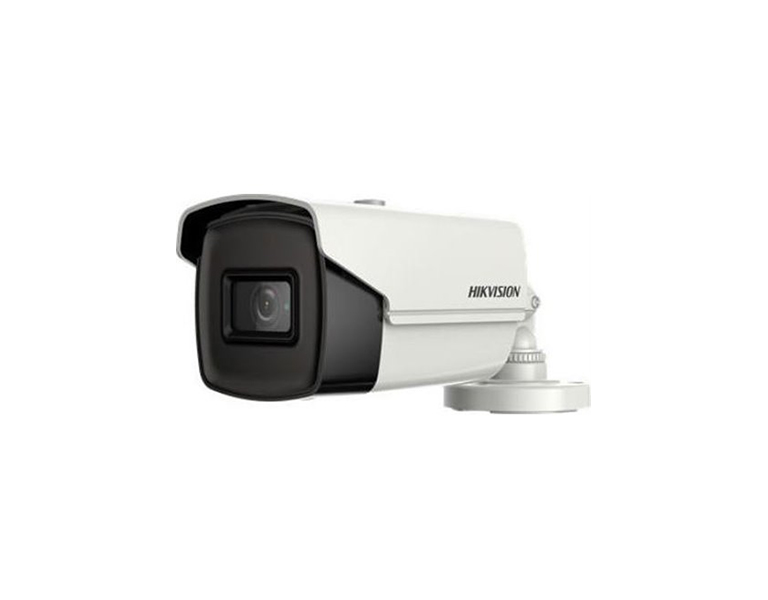

Hikvision DS-2CE16U1T-IT5F-3.6 4K Fixed Bullet Camera (3.6mm)

Product Code:
DS-2CE16U1T-IT5F-3.6
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2CE16U1T-IT5F-3.6 4K Fixed Bullet Camera (3.6mm)

CAUTION!!! Package does not include power supply!!!

• 8 MP bullet camera
• EXIR 2.0: advanced infrared technology with 80 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Max. Resolution 3840 (H) × 2160 (V)
Min. Illumination Color: 0.01 Lux@(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Signal System PAL/NTSC
Lens
Lens Type 3.6 mm fixed lens
Focal Length & FOV Horizontal FOV 79° (3.6 mm)
Lens Mount M16
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 80 m
Smart Supplement Light Yes
Image Settings Brightness,Sharpness,AGC
Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC,HLC
Noise Reduction 2D DNR
White Balance Auto/Manual
Interface
Video Output Switchable TVI/AHD/CVI/CVBS,1 HD analog output
General
Power 12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Max. 5.9 W
Material Front cover: Metal, Main body: Plastic
Dimension 81.9 mm × 86.7 mm × 217.9 mm
Operating Condition -40 °C to 60 °C, humidity: 90% or less (non-condensing)
Communication HIKVISION-C
Language English
Approval
Protection IP67
There are yet no reviews for this product.
