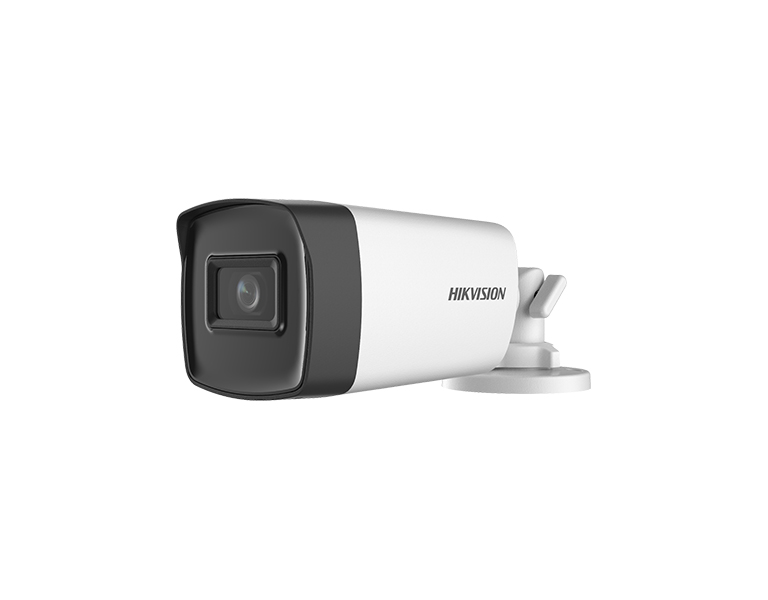

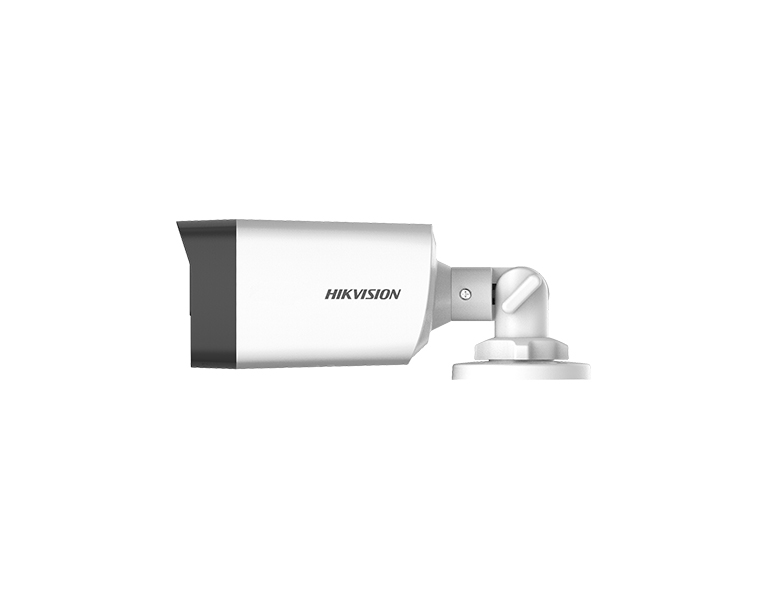

Hikvision DS-2CE17H0T-IT5F(C)-3.6 5MP Fixed Bullet Camera (3.6mm)

Product Code:
DS-2CE17H0T-IT5F(C)-3.6
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2CE17H0T-IT5F(C)-3.6 5MP Fixed Bullet Camera (3.6mm)

CAUTION!!! Package does not include power supply!!!

• High quality imaging with 5 MP, 2560 x 1944 resolution
• 3.6 mm fixed focal lens
• Up to 80 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 5MP CMOS
Signal System PAL/NTSC
Frame Rate TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Min. illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 3.6 mm fixed lens
Field of View 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
Lens Mount M12
Day & Night ICR
WDR Digital WDR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Language English
Function Brightness, Sharpness, Mirror, Smart IR
2D DNR Yes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C,
humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Max. 5 W
Ingress Protection IP67
Material Front Cover: Metal
Main Body: Plastic
IR Range Up to 80 m
Communication HIKVISION-C
Dimension 78.9 mm x 75.4 mm x 216.6 mm
Weight Approx. 330 g
