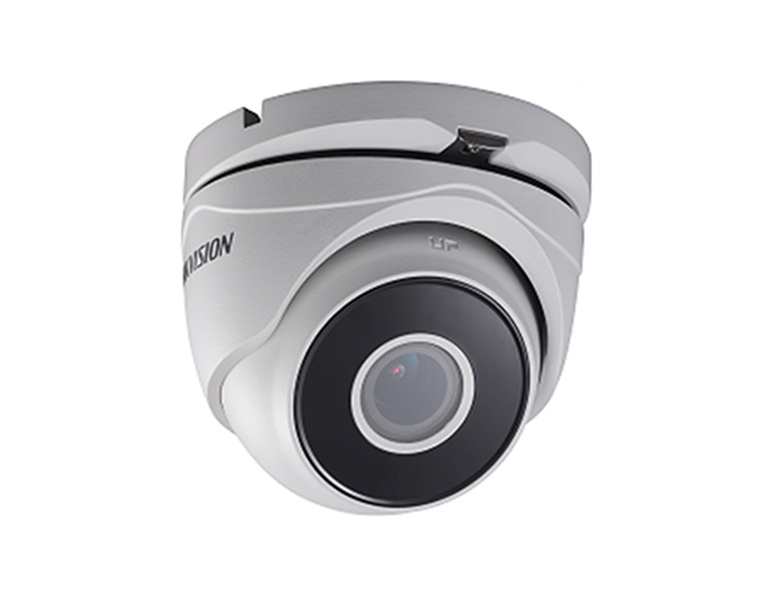

Hikvision DS-2CE56D8T-IT3ZF 2 MP Ultra-Low Light Turret Camera

CAUTION!!! Package does not include power supply!!!

• 2 MP high performance CMOS
• Ultra-low light
• 1920 x 1080 resolution
• 2.7 mm to 13.5 mm varifocal lens, auto focus
• 130 dB true WDR, 3D DNR
• Smart IR, up to 60 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter MAX. 16 times
Lens 2.7 mm to 13.5 mm motorized, auto focus
Horizontal Field of View 103° to 32.1°
Lens Mount Φ14
Day & Night ICR
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D DNR/2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C – 60 °C,
Humidity 90% or less (non-condensing)
Power Supply 12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 7.5W
Protection Level IP67
Material Metal
White Light Up to 60 m
Communication HIKVISION-C
Dimensions Φ 134.3 mm x 111.35 mm
Weight Approx. 605 g
