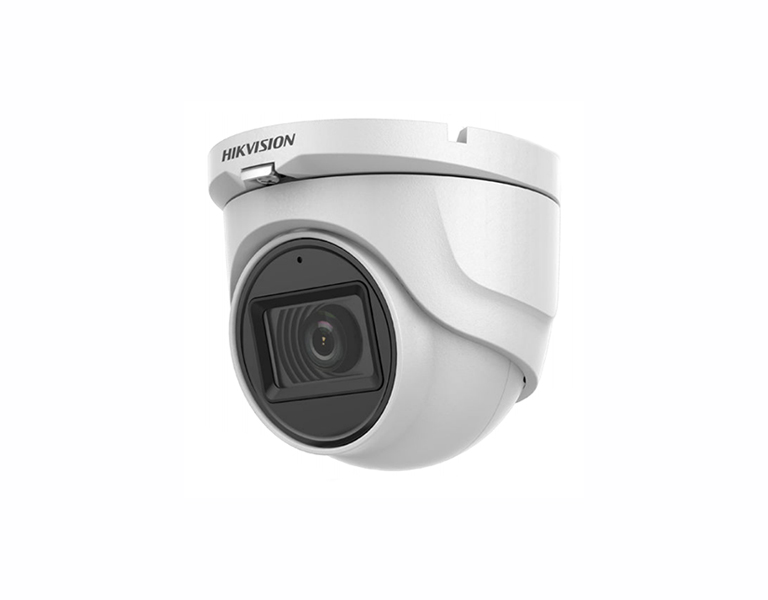

Hikvision DS-2CE76H0T-ITMFS-2.8 5MP Audio Camera (2.8mm)

Product Code:
DS-2CE76H0T-ITMFS-2.8
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2CE76H0T-ITMFS-2.8 5MP Audio Camera (2.8mm)

CAUTION!!! Package doesn't include power supply!!!

• 5 MP, 2560 x 1944 resolution
• Digital WDR
• 2.8 mm fixed focal lens
• Smart IR, up to 30 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Frame Rate TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm fixed lens
Field of View 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Audio Built-in mic
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Noise Reduction 2D DNR
Language English
Function Brightness, Sharpness, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C
humidity 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera
Power Consumption Max. 3.7 W
Protection Level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Dimensions 82.6 mm x 90 mm x 79.37 mm
Weight Approx. 289.5 g
