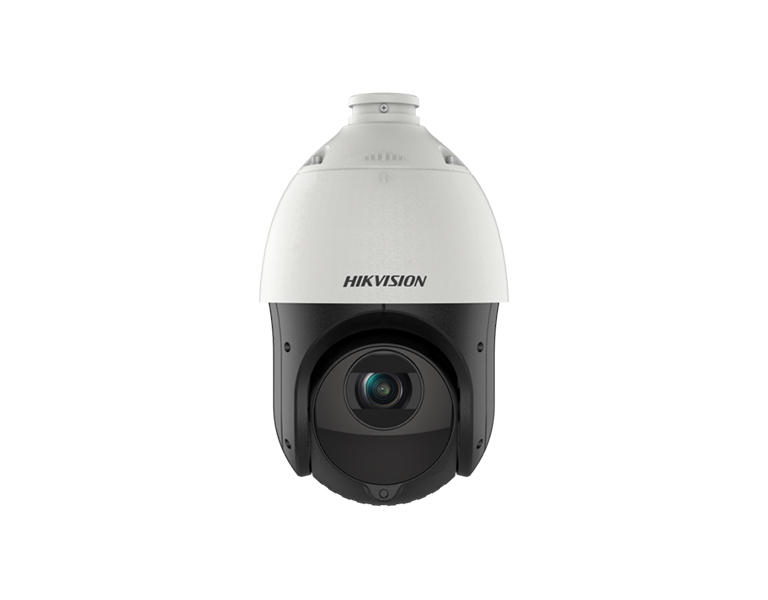

Hikvision DS-2DE4425IW-DE(T5) 4MP 25x Network IR Speed Dome

Product Code:
DS-2DE4425IW-DE(T5)
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-2DE4425IW-DE(T5) 4MP 25x Network IR Speed Dome

• Focuses on human and vehicle targets classification based on deep learning
• Support face capture. Up to 5 faces captured at the same time
• 1/2.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 100 m IR distance
• Support H.265+/H.265 video compression



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Camera
Image Sensor 1/2.8" progressive scan CMOS
Max. Resolution 2560 x 1440
Min.Illumination Color: 0.005Lux @ (F1.6, AGC ON); B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter yes
Day & Night IR cut filter
Zoom 25x optical, 16x digital
Lens
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 3.6 s
Focal Length 4.8 mm to 120 mm
FOV Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 100 m
PTZ
Proportional Pan Yes
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s;
preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s,
preset speed 80°/s
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Video
Main Stream 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 × 720)
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets
API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR > 52 dB
Defog Digital defog
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 1 input, 1 output
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Face Capture Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)
Operating Conditions -30 °C to 65 °C.
Humidity 90% or less (non-condensing)
Demist Yes
Material ADC 12
Dimensions Φ 164.5 mm x 290 mm
Weight Approx. 2 kg
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 62368-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
