• 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• 8-Channel Real-Time Live View: Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.
• Simultaneous Playback: Replay the feed from up to 4 cameras^† at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
• H.265+ Smart Video Coding: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensure Compatibility^**: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• 1 HDD Interface (up to 10 TB)^△: Stores up to 10 TB (720 days^* of video) on a SATA hard drive, keeping your data storage secured locally.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

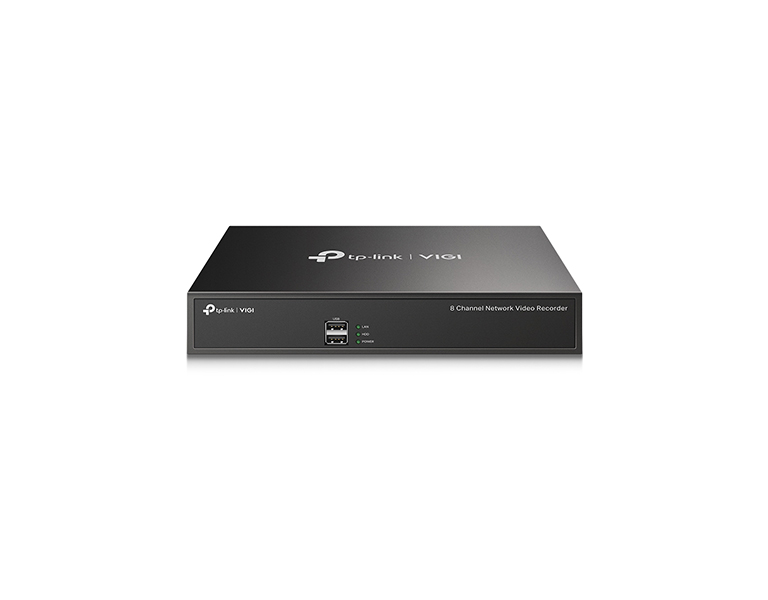

VIGI NVR Introduction.
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.

Security for every hour and every day.
24/7 Continuous Recording Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

Every angle all on one screen.
8-Channel Real-Time Live View Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.

Reviewing footage is faster than ever.
Simultaneous Playback Replay the feed from up to 4 cameras† at the same time, increase replay speed, and find events in the video schedule to easily review footage.

Keep an eye on things even when you are on the move.
Remote Monitoring, dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

More compression. More savings. Same quality.
Smart Video Coding by H.265+, without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No need to check long compatibility lists.
ONVIF Ensures Compatibility, easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.^**

Up to 720 days of footage stored locally.
1 HDD (up to 10 TB) Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.

Greet your visitors before they enter.
Two-Way Audio With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

More bandwidth for more cameras.
80 Mbps Video Access Bandwidth High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

Manage everything with one.
Run your business with peace of mind. The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

+Fewer or no channels may be available for playback if the total resolution is greater than 8MP.

‡HDD is not included.

△A hard disk drive (not included) must be installed for operation.

*Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.

**VIGI NVR works best with VIGI cameras but is compatible with other brands.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

SPECIFICATIONS
Video and Audio
IP Video Input	8-Channel
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8
Incoming Bandwith	80 Mbps
Outgoing Bandwidth	60 Mbps
Decoding
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	8-Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Of
Network
Network Protocols	UPnP (Plug and Play), NTP (Network Timing)
Interoperability	ONVIF, CGI
Mobile Phone Access	Android, iOS
Browser	Chrome (57+), Firefox (52+), Edge (91+)
External Interface
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1, Audio In; 1, Audio Out
Power	1× DC Jack
Reset Button	1
HDMI	1
VGA	1
Hard Disk
SATA	1 SATA Interface
Capacity	Up to 10 TB Capacity for Each HDD
Alarm
General Alarm	• Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm
General
Package Contents	• VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Rubber Feet • Quick Installation Guide
Power Supply	DC 12V/1.5A
Max Power Consumption (Without Disk)	4.25 W
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Storage Temperature	-40-70 °C
Working Humidity	10%~90% RH Non-Condensing
Storage Humidity	10%~90% RH Non-Condensing
Product Dimensions (W × D × H)	246.2 × 148.2 × 45 mm
Net Weight	0.59 kg
Gross Weight	0.95 kg
Certification	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
