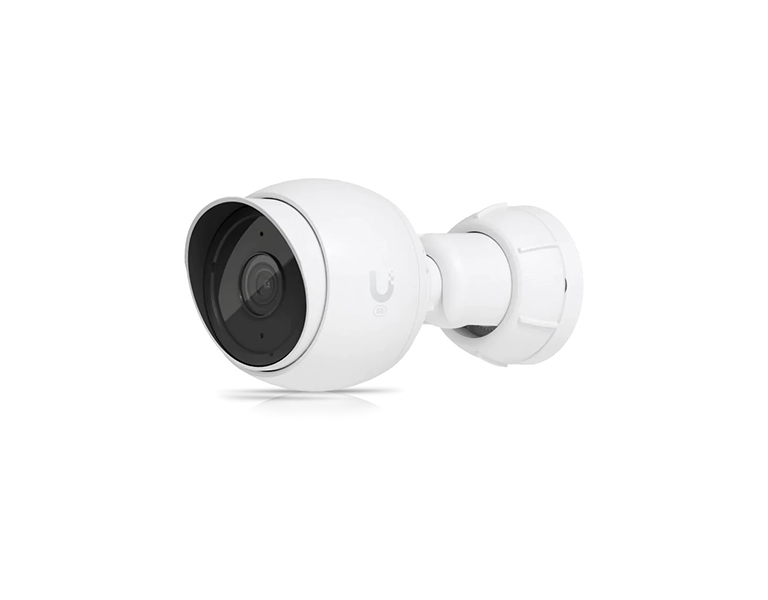

Next-gen indoor/outdoor 2K HD PoE Camera.
Features:
• 2K HD, 30 FPS camera with a 5MP CMOS sensor
• View angle (84.4˚)
• Weatherproof IPX4-rated enclosure
• Flexible, three-axes adjustment
• Improved low-light performance and IR night vision up to 10m
Managed with the UniFi Protect application: Version 2.2.7 or 2.7.18 and later (web) / 1.10.0 and later (mobile)
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Mechanical | |
Dimensions | Without mount: Ø75.5 x 74.4 mm With wall mount: Ø75.5 x 150 mm |
Weight | Without mount: 225 g With wall mount: 315 g |
Enclosure materials | Polycarbonate, aluminum alloy |
Mount materials | Wall mount: aluminum alloy, polycarbonate Pole mount: aluminum alloy |
Weatherproofing | IPX4 |
Resistance | IK04 |
Optics | |
Sensor | 5 MP CMOS sensor |
Lens | Fixed focal length |
View angle | H: 84.4°, V: 45.4°, D: 99.8° |
Night mode | Built-in IR LED illumination and IR cut Filter |
Video | |
Compression | H.264, MJPEG |
Resolution | 2688 x 1512 (16:9) |
Maximum frame rate | 30 FPS |
Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
System | |
Processor | Dual-core Arm Cortex -A7 based chip |
Networking interface | 10/100 MbE RJ45 |
Max. power consumption | 4W |
Power method | PoE |
Supported voltage range | 37–57V DC |
Button | Factory reset |
Mounting | Wall, pole mount and ceiling |
Operating temperature | -20 to 50° C |
Operating humidity | 0 to 90% noncondensing |
Certifications | FCC, IC, CE |
Audio | |
Microphone | Yes (can be disabled in software) |
Software | |
Management application | UniFi Protect |
Mobile app | UniFi ProtectiOS and Android |
