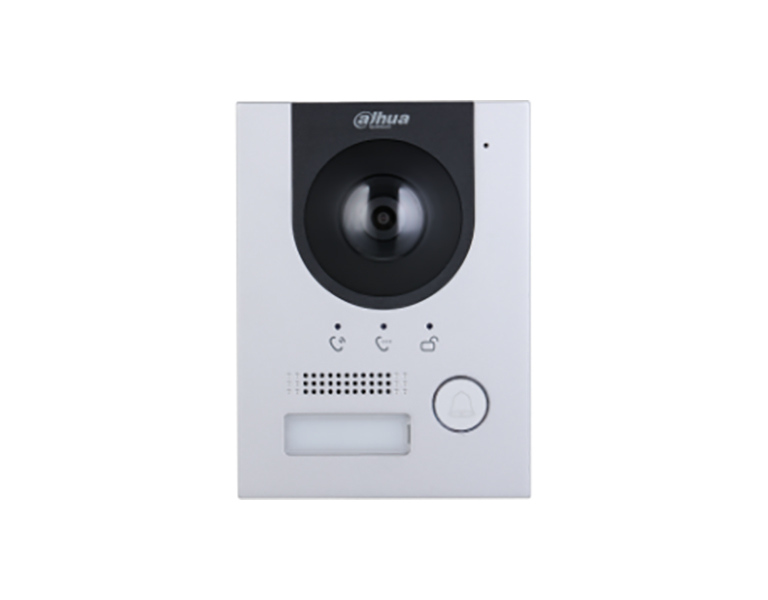

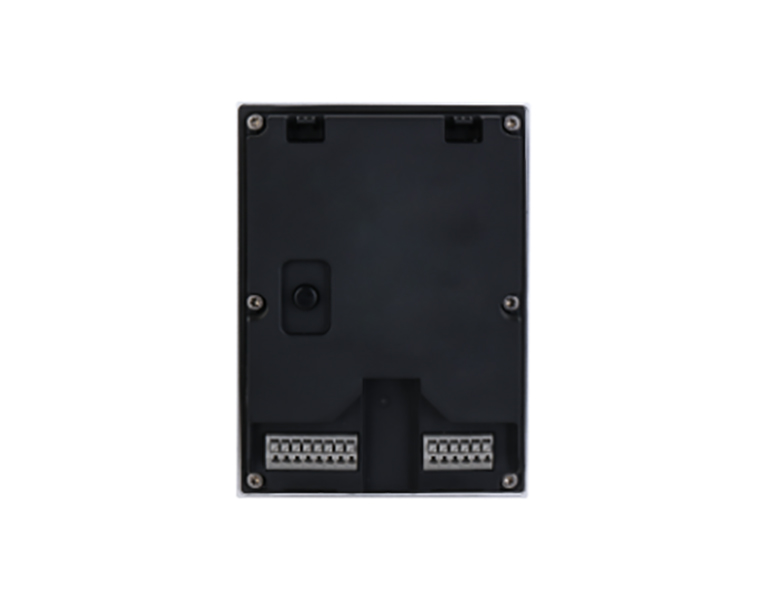

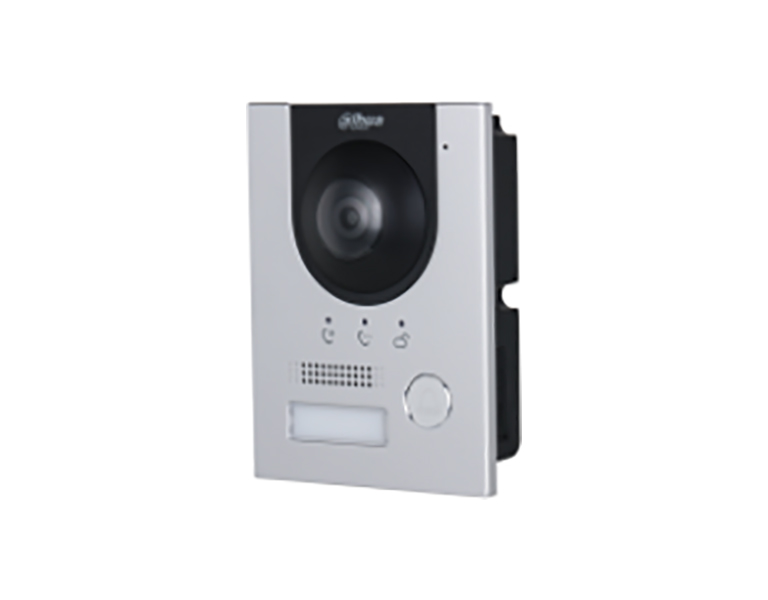

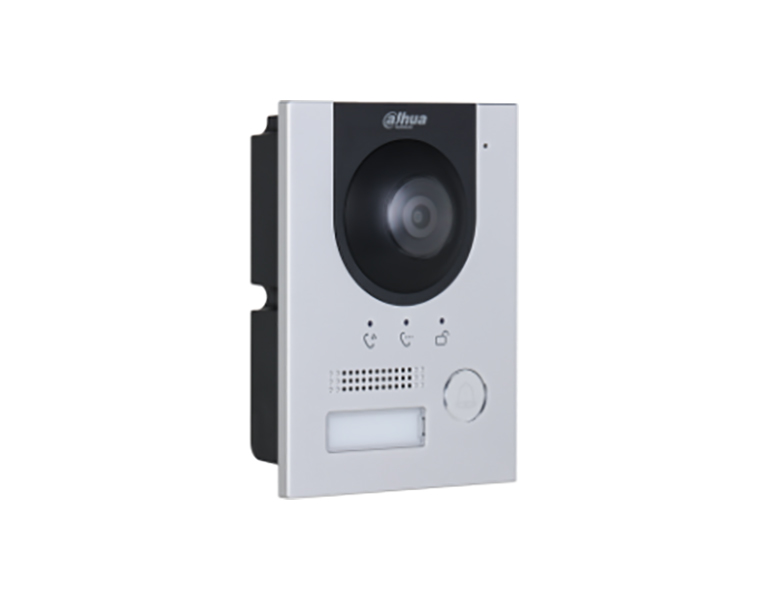

Dahua VTO2202F-P-S3 2-wire IP Villa Door Station

Product Code:
VTO2202F-P-S3
Manufacturer Dahua
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Dahua VTO2202F-P-S3 2-wire IP Villa Door Station

Features:
• Anodized aluminum front panel.
• CMOS low illumination 2MP HD colorful 168.6° camera.
• Video intercom function.
• Provides 12 VDC, 600 mA power.
• Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
• IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide).
• Support surface and flush mount.
• Support H.265 and H.264.
• Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
System parameters
Main Processor Embedded Processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Number of Buttons 1
Interoperability ONVIF; CG
Network Protocol IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP
Basic
Camera 1/2.9" 2 MP CMOS
Field of View H: 168.6°, V: 87.1°, D: 176.7°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.265; H.264
Video Resolution Main stream: 720p; WVGA; D1; CIF Sub stream: 1080p; WVGA; D1; QVGA; CIF
Video Frame Rate 25 fps
Video Bit Rate 256 Kbps to 8 Mbps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W; Color/B/W
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 kHz, 16 bits
Function
Communication Mode Digital 2-wire
Unlock Mode Remote
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
Storage Supports Micro SD card (up to 256 GB)
Web Configuration Yes
Performance
Casing Material Aluminum
Port
RS-485 1
Alarm Output 1
Power Output 1 port, 12 V/600 mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port 1 × RJ-45 port, 10/100 Mbps network port
Alarm
Tamper Alarm Yes
General
Appearance Color Silver
Power Supply Dahua 2-wire switch (max. power supply distance is 50 m) 48 VDC, 1 A; PoE (802.3af/at)
Power Adapter Optional
Installation Flush Mount; Surface Mount
Certifications CE
Accessory Surface mount box (optional); flush mount box (optional); rain cover (optional)
Product Dimensions 130 mm × 96 mm × 28.5 mm
Protection IK07; IP65
Operating Temperature –30°C to +60°C
Operating Humidity 10%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude 0 m–3000 m
Power Consumption ≤4 W (standby), ≤5 W (working)
Gross Weigh 0.48 kg
Storage Temperature 0 °C to +40 °C
Storage Humidity 30%–75% (RH), non-condensing
