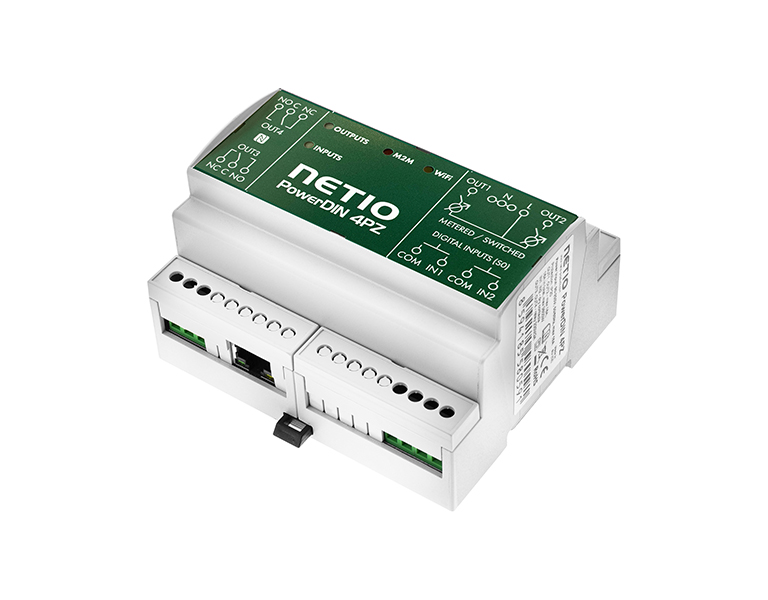

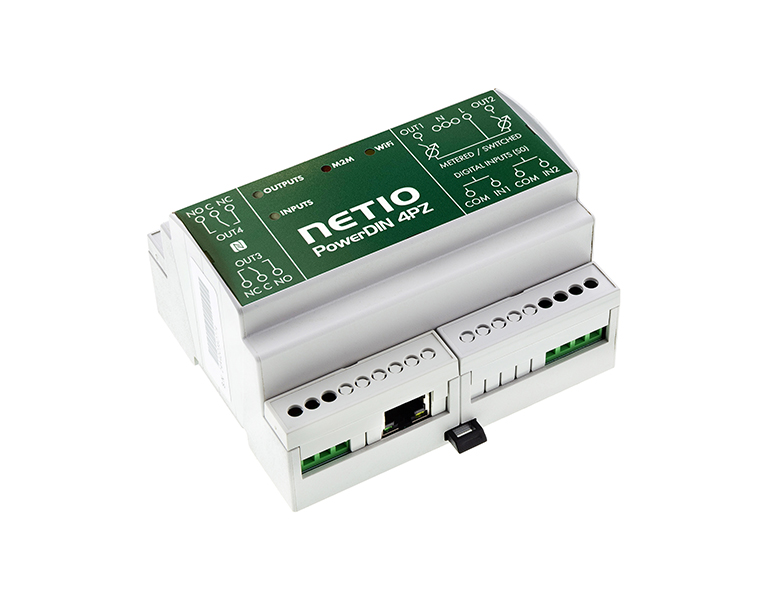

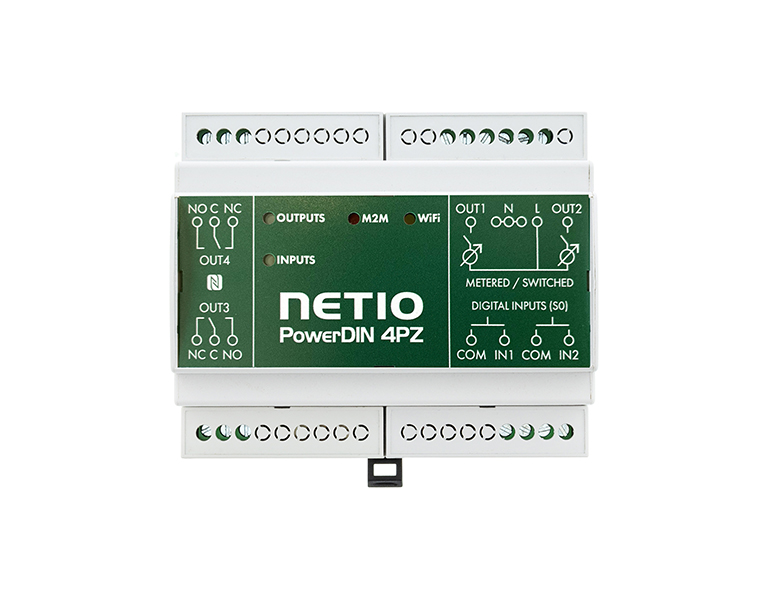

PowerDIN 4PZ is a dual 230V/16A electricity meter with LAN/WiFi and I/O. Both measured outputs can be switched off (relay). Both DI (Digital Inputs) can be used to count S0 pulses.
Device can be controlled wia web interface, Open API, NETIO Cloud service or mobile app.
Each of the four outputs can be independently controlled from the product web interface (switched off/on or power-cycled). To switch the outputs on in a sequence, a power-up delay can be configured for each output.

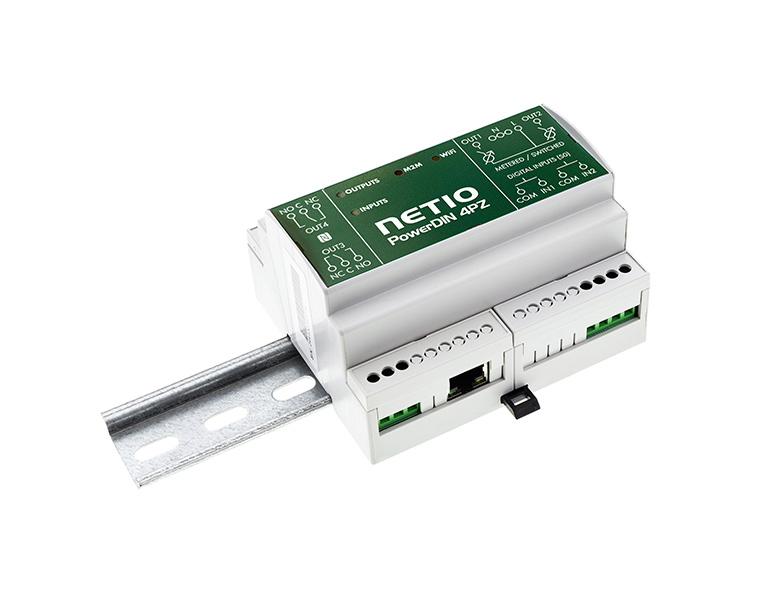

NETIO PowerDIN 4PZ fits on a DIN rail.
The NETIO Mobile2 app controls each output individually over LAN (local network).
NETIO Cloud is SSL-secured service for controlling the outputs from anywhere (Web or Open API).
Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more...).
The Scheduler function switches outputs on and off at configured times. It works locally, even without an Internet connection.
AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, Crestron, Control4 and more.

Features:
• LAN (Ethernet) or WiFi
• I/O: 2x digital inputs (S0 counters) + 2x DO (relay)
• 2x metered ouputs 230V/16A + ZCS relays
• Open API (8 protocols, M2M API)
• Supports NETIO Cloud
• Can be controlled with a mobile app

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Power	Power input: 100-240VAC – Max 16A Outputs 1, 2: metering + On/Off (SPST-NO relay) Outputs 3, 4: NO/NC (SPST-NO relay) Internal consumption: 1-2 W PowerUp State: Default output state (On / Off / Last state) PowerUp Delay: Delay before switching the output on

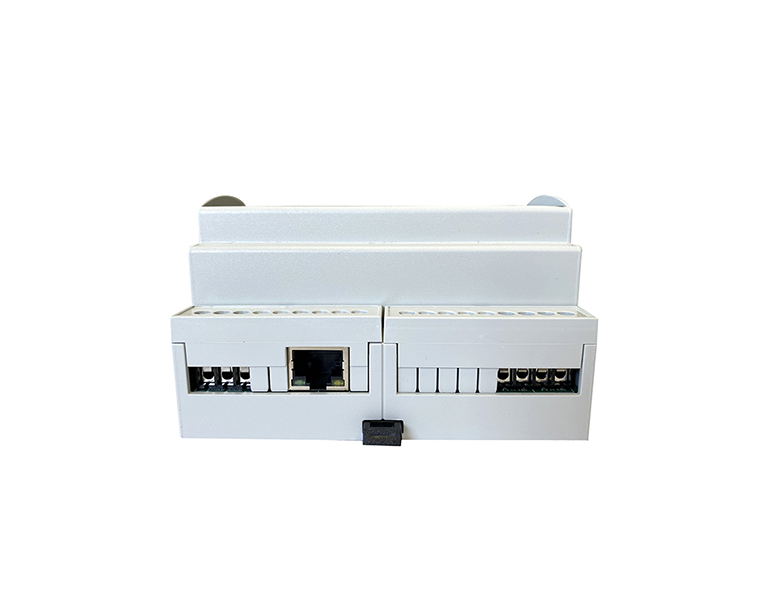

Interfaces	LAN 10/100 Mbps (RJ-45) WiFi 2,4 GHz (internal antenna) NFC for quick device configuration LED indicators in the RJ45 jack + LED (I/O states) Load Defaults button (under the panel)
Electrical Measurments	Electrical measurements: Yes (2 channels) 2x current [A] , consumption [kWh], load [W] 2x TPF (True Power Factor) 1x frequency [Hz], voltage [V] Accuracy: <1%
Dimensions	106 x 91 x 62 mm - 6M (SU) DIN
Protection	IP30
Temperature range	-20°C to +55°C
Standards	EN 62368, EN 61000, EN 50581
Package contents	NETIO PowerDIN 4PZ Quick Installation Guide
