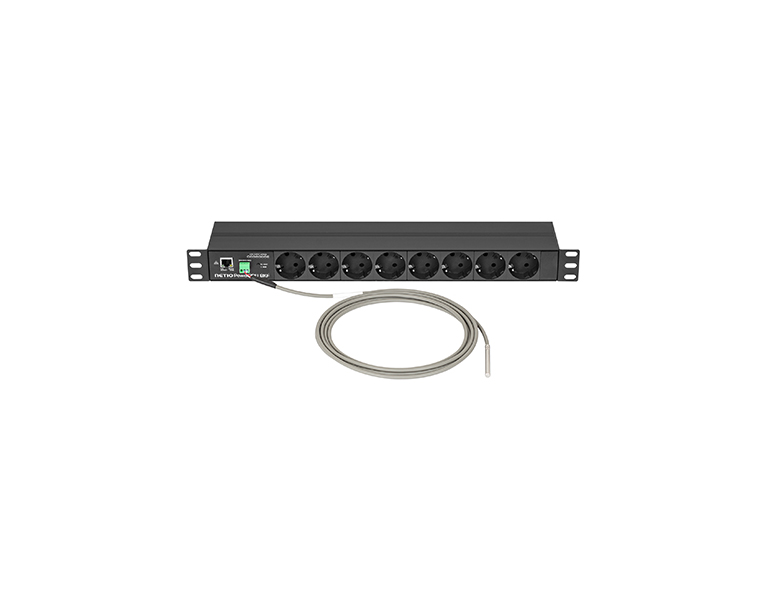

PowerPDU 8KF is a PDU (Power Distribution Unit) with eight power outputs (8x Type F (Schuko)) controlled and metered over a LAN. It fits into a 19" cabinet (1U). Each output can be switched on/off/toggle individually over the web interface, NETIO Cloud service or the mobile app. Open API enables integration into a 3rd party systems. PowerPDU 8KF supports electrical metering on each output individually (8 Channels). DI (Digital Input) can control the outputs or count S0 pulses and is available through API.

Each output can be switched On/Off remotely or based on DI, temperature sensor value etc.. Outputs can be switched ON in a sequence after a power-up or restoration by configuring a custom power-up delay interval for each output individually.
NETIO PowerPDU 8KF fits into 19" cabinet (1U). A metal bracket is included.
The NETIO Mobile 2 app controls each output individually over LAN (local network) or NETIO Cloud.
NETIO Cloud is a SSL-secured service for controlling multiple devices from anywhere (Web or Cloud API).
Open API (such as HTTPs, XML/JSON over HTTP, SNMP, Modbus/TCP, MQTT-flex, Telnet and others...) enables integration with third party systems (controlling the outputs over the network).
DI (Digital Input) / Sensor is input for external NETIO T1 Sensor temperature probe / button (dry contact). Reaching temperature value / pushing the button can initiate action like power-off on defined output, toggle output etc. It’s related to CRxx (Condition & Rules) features.
AV drivers make it easy to connect NETIO sockets to a professional Audio/Video control systems such as Neets, Crestron, Control4, RTI, Savant and more.
Electrical values on each one from 8 outputs (A, W, kWh, PowerFactor, ...)

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Power input	Europlug (240V AC), 16A
Power output	8x Type F (Schuko), max 16A per output
Each output	On/Off (relay SPST-NO)
ZCS (Zero Currents Switching)	Yes
Internal consumption	1-3 W
PowerUp State	Default output state (On/Off/Last state)
PowerUp Delay	Delay before switching output on
Interfaces	• LAN 10/100 Mbps (RJ-45) • 1x DI (Digital Input) with 12V DC (max 50mA) • LED indicators in the RJ45 jack & M2M LED
Operating Conditions
Temperature	-20 °C to 65 °C / 5A (-20 to 50 °C /16A) For indoor use only (IP30)
Dimensions/Weight
PowerPDU 8KF	490 x 44 x 86 mm / 1.3 kg
Package	514 x 73 x 204 mm / 1.95 kg
Package Contents	• NETIO PowerPDU 8KF • QIG (printed Quick Installation Guide) • Metal brackets to 19" cabinet (1U) + screw set • Power cord with CEE 7/4 included (attached to the product)
