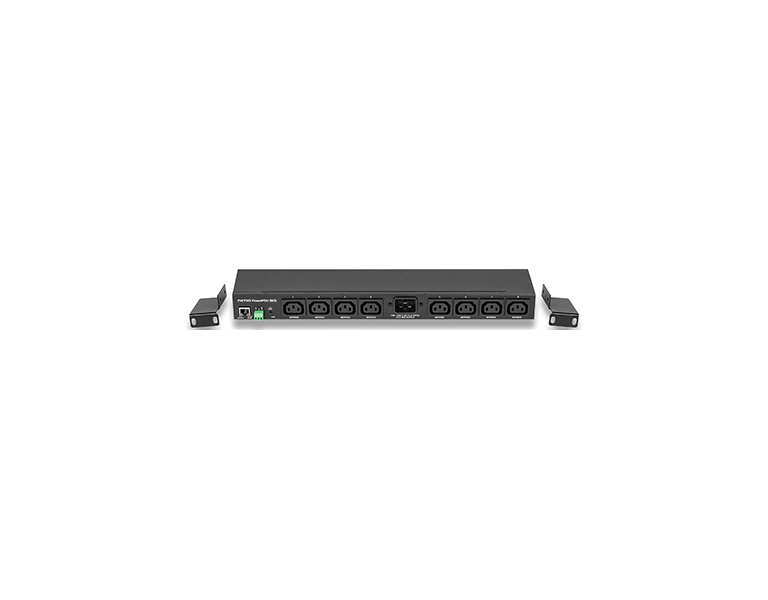

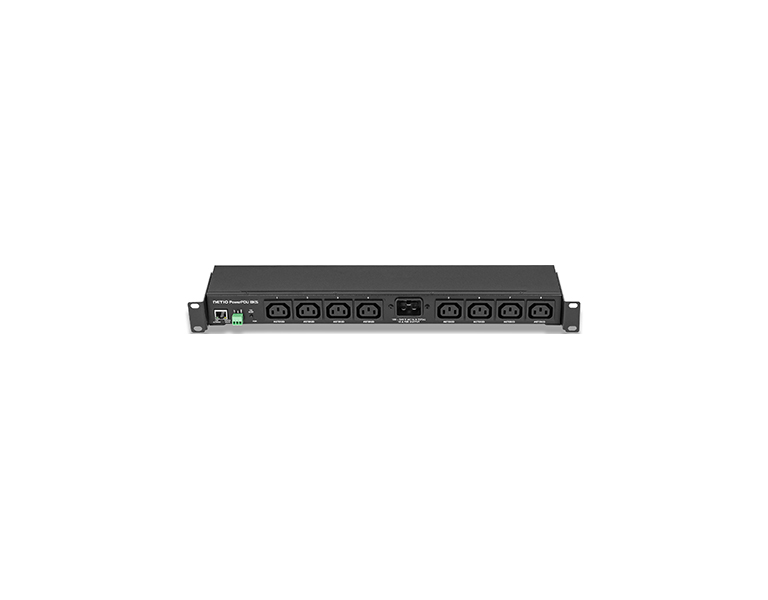

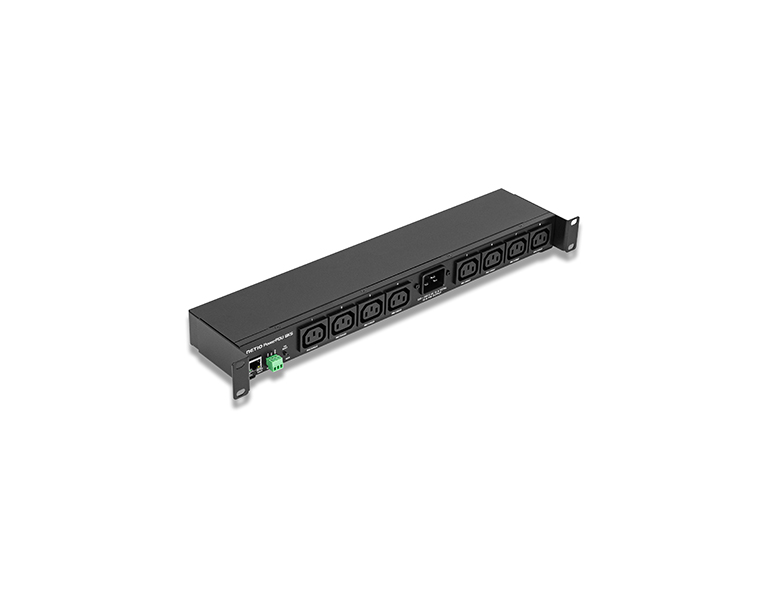

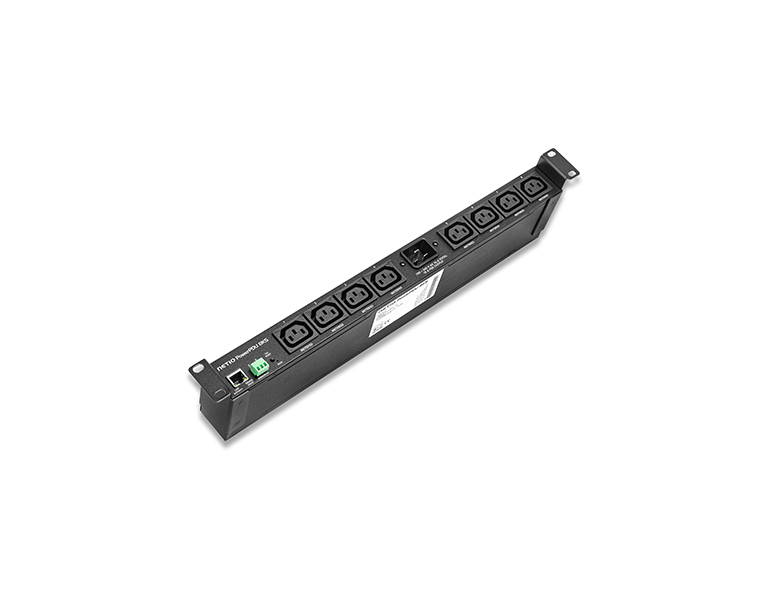

PowerPDU 8KS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19" cabinet (1U). Each output can be switched on/off/toggle individually over the web interface, NETIO Cloud service or the mobile app. Open API enables integration into a 3rd party systems. PowerPDU 8KS supports electrical metering on each output individually (8 Channels). DI (Digital Input) can control the outputs or count S0 pulses and is available through API.
Each of eight outputs can be independently controlled from the web interface (switched on / off or power-cycled). To switch the outputs on in a sequence (after a power-up or when power is restored), a power-up delay interval can be configured for each output individually. NETIO PowerPDU 8KS fits into 19" cabinet (1U). A metal bracket is included.
The NETIO Mobile2 app controls each output individually over LAN (local network) or NETIO Cloud. NETIO Cloud is a SSL-secured service for controlling multiple devices from anywhere (Web or Cloud API).
Open API (such as HTTPs, XML/JSON over HTTP, SNMP, Modbus/TCP, MQTT-flex, Telnet and others...) enables integration with third party systems (controlling the outputs over the network). DI (Digital Input) is reading the sate of external button (dry contact). Pushing the button can initiate action like power countdown, toggle output etc. Also pulse counter and CR (Condition & Rules) features are available. AV drivers make it easy to connect NETIO sockets to a professional Audio/Video control systems such as Neets, Crestron, Control4, RTI, Savant and more. Electrical values on each one from 8 outputs (A, W, kWh, PowerFactor, ...)

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Power	• Power input: IEC-320 C20 (110/230V AC), max 16A • Power output: 8x IEC-320 C13, max 10A each • Each output: On/Off (relay SPST-NO) ZCS (Zero •Currents Switching): Yes Internal consumption: 1-3 W • PowerUp State: Default output state (On/Off/Last state) • PowerUp Delay: Delay before switching output on
Interfaces	• LAN 10/100 Mbps (RJ-45) • 1x DI (Digital Input) with 12V DC (max 50mA) • LED indicators in the RJ45 jack & M2M LED
Electrical Measurments (Whole PDU + Output1)	•Current [A] • Consumption [Wh] • Power [W] • TPF (True Power Factor) • Accuracy: <1% • Phase [°] • Frequency [Hz] • Voltage [V] • Reverse Energy [Wh]
Dimensions / Weight	• PowerPDU 8KS: 439 x 41 x 90 mm / 1.3 kg • Package: 514 x 73 x 204 mm / 1.6 - 1.9 kg
Protection	For indoor use only (IP30)
Temperature range	-20 °C to 65 °C /5A (-20 to 50 °C /16A)
Standards	EN 62368, EN 60950, EN61000, EN50581
Package contents	NETIO PowerPDU 8KS QIG (printed Quick Installation Guide) Metal brackets to 19" cabinet (1U) + screw set Power cord according to the order code
