Teltonika 035R-00143 Power supply, 9W

Product Code:
PR3PUEU3
Manufacturer Teltonika
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

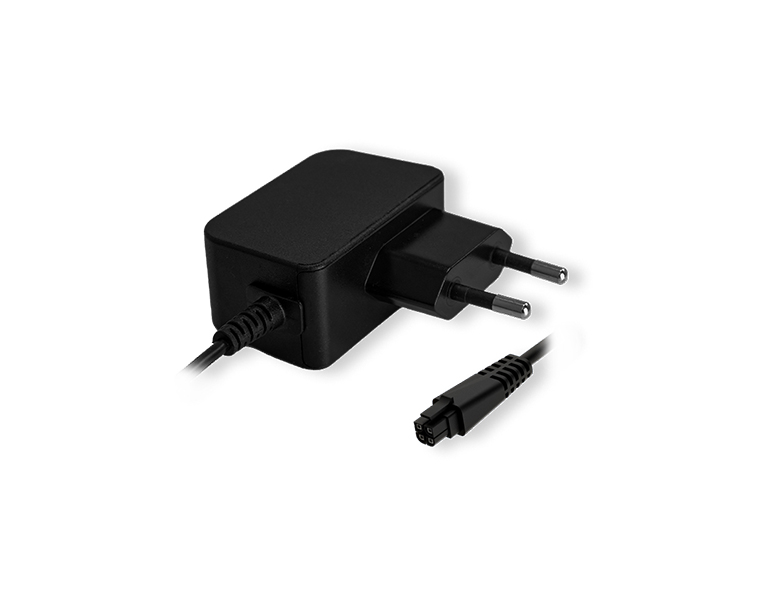

Teltonika 035R-00143 Power supply, 9W

Power supply for RUT230, RUT240, RUT850, RUT900, RUT950, RUT955.

Specifications
Parameter
Input Voltage 100 - 240 VAC
Input Frequency 50/60 Hz
Input Current 0.45 A
Inrush Connector EU (Type C)
Output Voltage 9 VDC
Output Current 1.0 A
Output connector 4pin, 3 mm pitch
Weight 79 g
Additional
Input voltage absolute maximum 90 - 264 VAC
Input frequency absolute maximum 47 - 63 Hz
Inrush currect 60A
Output voltage absolute maximum 8.55 – 9.45 VDC
Short circuit protection
HIPOT (dielectric withstand test) Primary to Secondary: 4000 VDC
MTBF E30000 h
PSU efficiency standard DoE Level VI
Certification Safety: IEC 62368-1:2014/A11:2017 (CB Scheme)
EMC: EN 55032:2015, EN55035:2017, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, EN 61347-1:2015, EN 61347-2-13:2014/A1:2017, EN 62493:2015
