Teltonika PR318EUA EU 2-PIN Power supply, 130W

Product Code:
PR318EUA
Manufacturer Teltonika
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

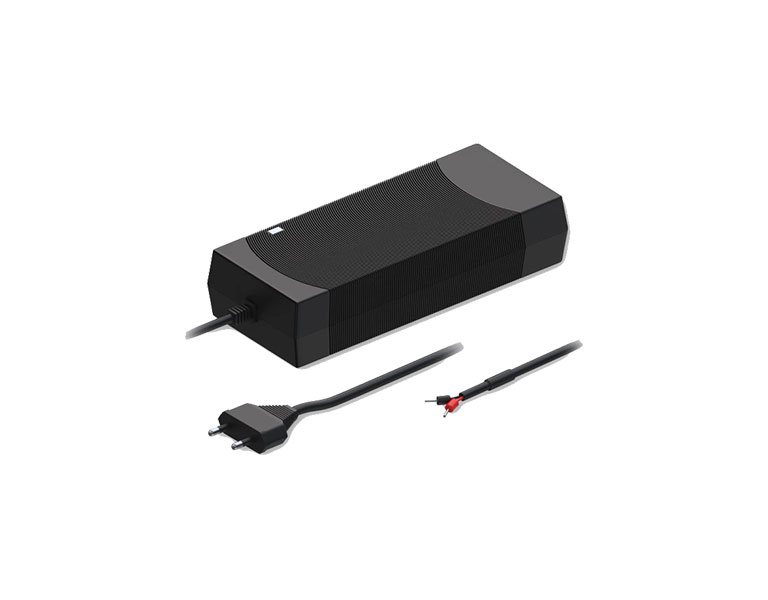

Teltonika PR318EUA EU 2-PIN Power supply, 130W

Power supply for Teltonika TSW200, TSW202, TSW212.

Technical Data
General
Input voltage 100 - 240 VAC
Input frequency 50/60 Hz
Input current 2.5 A
Input connector EU (Type C)
Output voltage 50 VDC
Output current 2.6 A
Output connector 2-PIN, with cord end terminals
Weight 500 g
Additional
Input voltage absolute maximum rating 90 - 264 VAC
Input frequency absolute maximum rating 47 - 63 Hz
Maximum input inrush current 50 A
Output voltage absolute maximum rating 47.5 - 52.5 VDC
Short circuit protection Yes
HIPOT (dielectric withstand test) Primary to Secondary - 4242 VDC
MTBF 50000 h
PSU efficiency standard DoE Level VI
Certification Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008
EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017)
