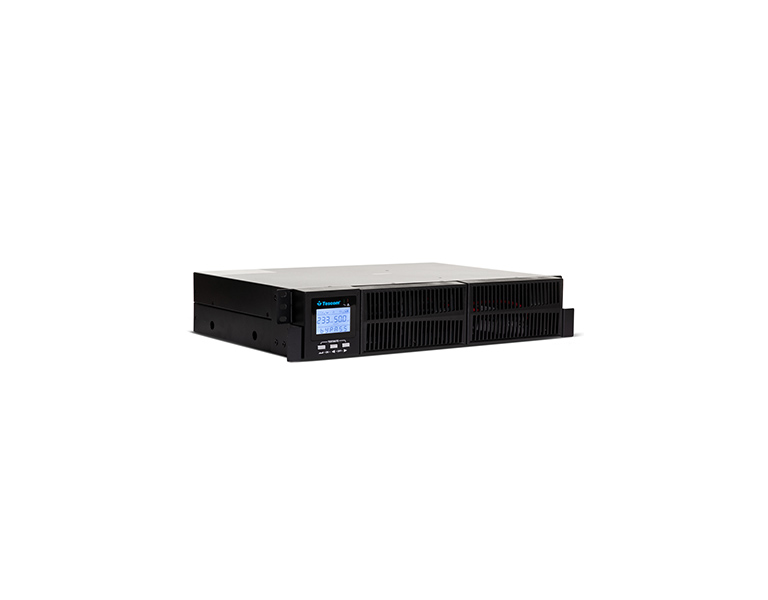

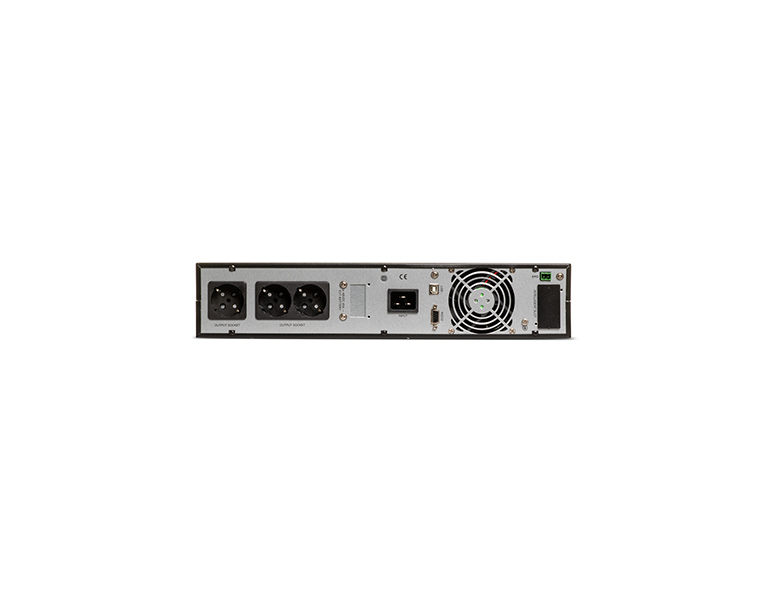

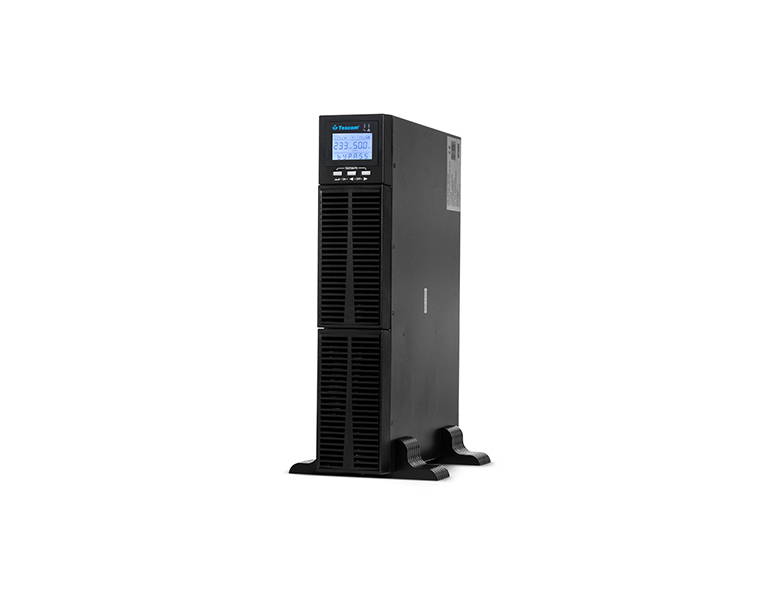

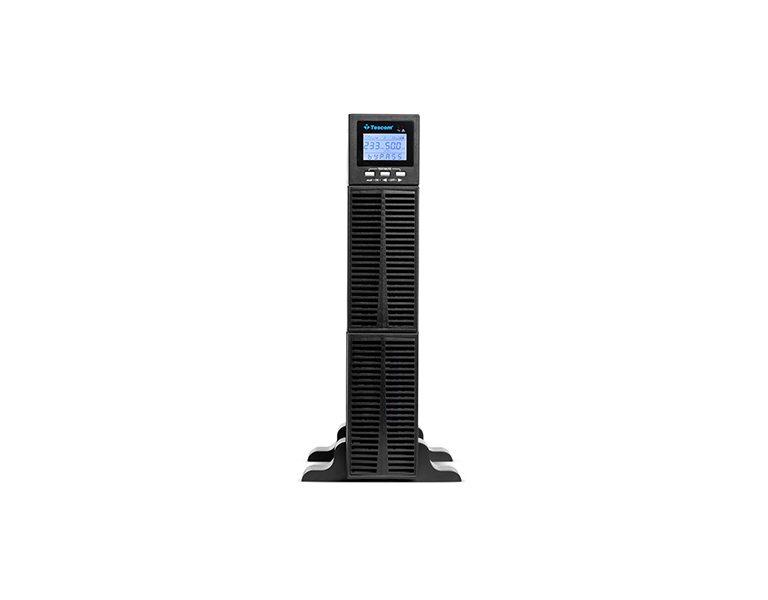

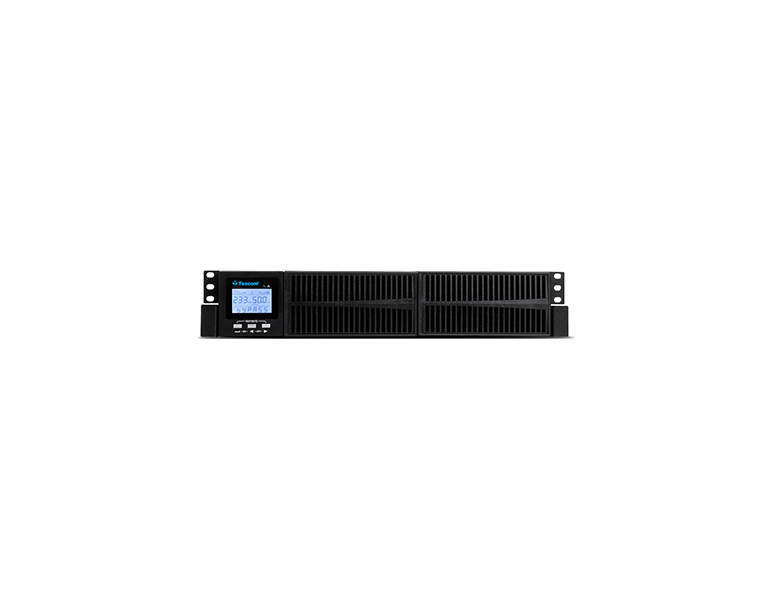

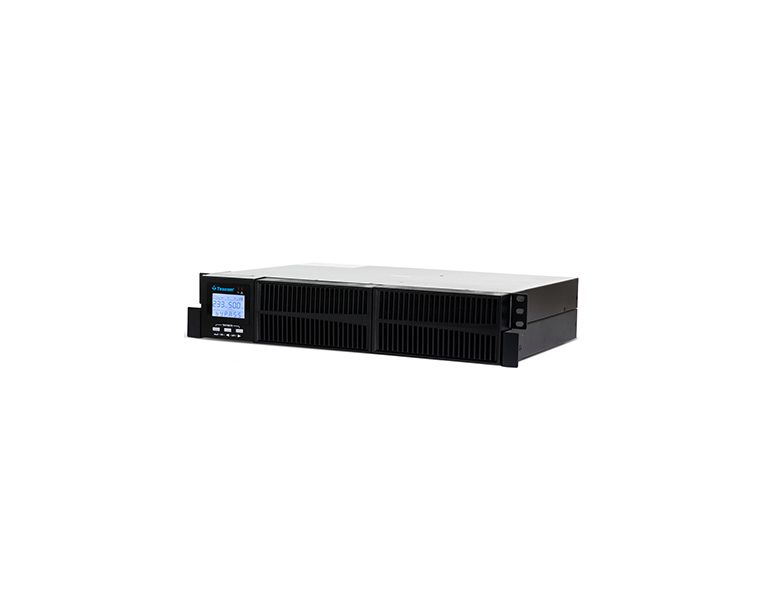

High performance single-phase ON-LINE UPS with double conversion topology and Power Factor = 0.9. The Neoline Pro UPS provide excellent protection for critical loads and the elimination of all surges and disruptive noise. With zero transfer time, pure sine wave output and the ability to support different loads, it is the optimum solution for integrated home and IT equipment protection from costly interruptions. They also support Rack / Tower layout configuration.

Features:

• High frequency on-line double conversion technology
• DSP (Digital signal processors) control technology
• Output power factor 0.9
• Auto sensing frequency 50 / 60Hz frequency conversion
• Cold start
• Quick and stable charging, 90% capacity restored in 4 h (standard model UPS)
• Effective software and hardware protection
• Settable delayed start when power is restored
• Hot-swappable battery
• Advanced battery management (ABM)
• Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode, ECO mode and frequency conversion mode
• Optional USB, RS485 card, AS400 dry contacts, SNMP card, SMS alarms, EPO function, MBS (External maintenance bypass switch)

Warranties - Returns:
Money Return:	Repair - Replacement^*:
20 days	24 months
^*Batteries are accompanied by a 12-month warranty

Capacity	3 kVA / 2700 W
Input
Rated voltage	208 / 220 / 230 / 240 Vac
Voltage range	110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)
Frequency	40 ~ 70 Hz (auto-sensing)
Power factor	≥ 0.99
Bypass voltage range	- 25% ~ + 15% settable
Total harmonic distortion	≤ 6%
Output
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation	± 1%
Frequency	45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Power factor	0.9
Total harmonic distortion (THDv)	≤ 2% (linear load), ≤ 5% (non-linear load)
Crest factor	3:1
Overload	105% ~ 125% for 1 min, 125% ~ 150% for 30 s, > 150% for 300 ms
Batteries
DC voltage	72 V (S)
Inbuilt battery	6 × 9 Ah
Charging current (max.)	1 A
Recharge time	Standard model: 90% capacity restored in 4 hours; Long time model: depend on the capacity of battery
System
Efficiency	≥ 92% (Mains mode) ≥ 87% (Battery mode) ≥ 97% (ECO mode)
Transfer time	Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Protections	Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communications	RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Display	LCD + LED
Standards	EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
Others
Operating temperature	0°C ~ 40°C
Storage temperature	- 25 ~ 55°C (without batteries)
Relative humidity	0 ~ 95% (non-condensing)
Altitude	≤ 1000 m, derating 1% for each additional 100 m
IP rating	IP 20
Noise level at 1m	≤ 50 dB
Dimensions (W × D × H) (mm)	440 x 560 x 88
Packaged dimensions (W × D × H) (mm)	545 x 690 x 201
Net weight (kg)	26.8
Gross weight (kg)	29.7
