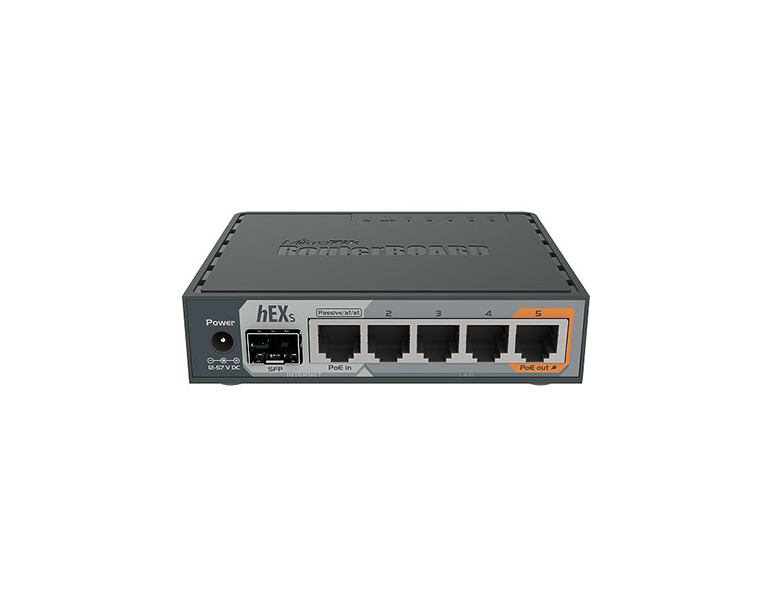

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RB760iGS |
Architecture | MMIPS |
CPU | MT7621A |
CPU core count | 2 |
CPU nominal frequency | 880 MHz |
CPU Threads count | 4 |
Dimensions | 113 x 89 x 28 mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C to 70°C |
Powering | |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
PoE out | Passive PoE up to 57V |
PoE-out ports | Ether5 |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max out per port output (input > 30 V) | 500 mA |
Max out per port output (input < 30 V | 500 mA |
Max total out (A) | 500 mA |
Max power consumption | 24 W |
Max power consumption without attachments | 6 W |
Ethernet | |
10/100/1000 Ethernet ports | 5 |
Fiber | |
SFP ports | 1 |
Peripherals | |
Memory card type | microSD |
Memory Cards | 1 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Certification & Approvals | |
Certification | CE/RED, EAC, ROHS |
Package Contains | |
Included parts | • 24V 1.2A power adapter |
