• (12) Gigabit SFP Ports
• (4) Gigabit RJ45 Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 16 Gbps
• Switching Capacity: 32 Gbps
• Forwarding Rate: 23.81 Mpps
• Maximum AC Power Consumption: 56W
• Rackmountable with Rack-Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)

Advanced Switching Technology for the Masses

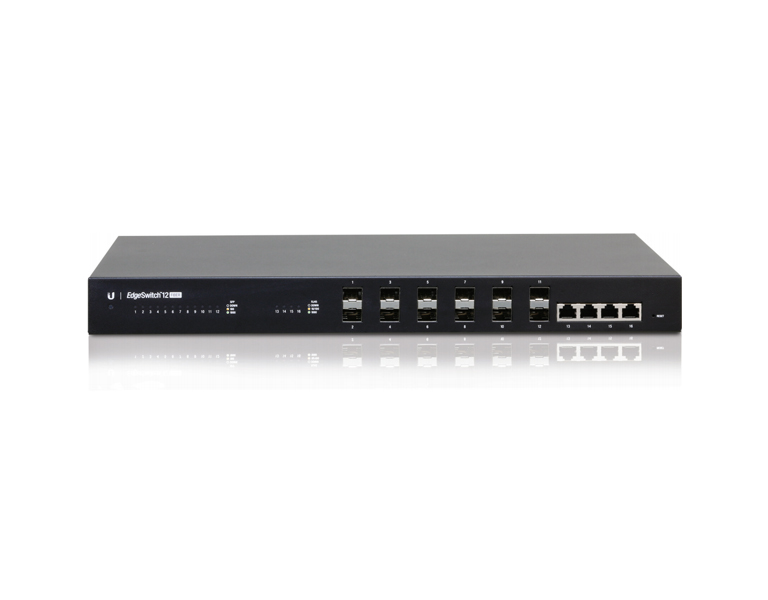

Build and expand your network with Ubiquiti Networks^® EdgeSwitch™ Fiber, part of the EdgeMAX^® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks.
The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

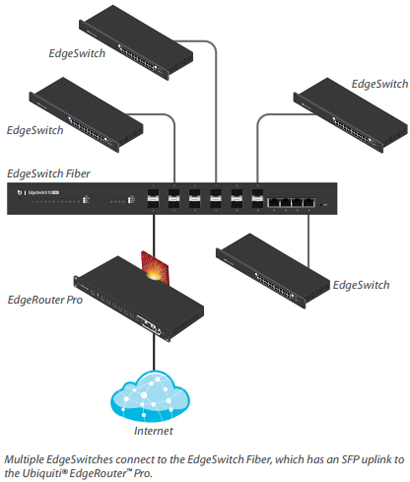

Distribution Layer
The EdgeSwitch Fiber offers high performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry‑standard command -line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality
The EdgeSwitch Fiber uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions	443 x 221 x 43 mm
Weight	Rack-Mount Brackets Included: 2.68 kg Rack-Mount Brackets Excluded: 2.59 kg
Total Non-Blocking Throughput	16 Gbps
Switching Capacity	32 Gbps
Max. AC Power Consumption	56W
Power Method	AC: 100-240VAC/50-60 Hz, Universal Input DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply	AC/DC, Internal, 56W DC
Supported Voltage Range	AC: 100 to 240VAC DC: 25 to 16VDC
LEDs Per Port	Speed/Link/Activity
Networking Interfaces	(8) 100/1000 Mbps SFP Ethernet Ports (4) 1000 Mbps SFP Ethernet Ports (4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In Band
Certifications	CE, FCC, IC
Rackmount	Yes, 1U High
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature	-5 to 40°C
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
