• 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
• PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
• Priority Mode helps to guarantee the quality of sensitive application like video monitoring
• PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
• Intelligent power management can protect the switch from overload

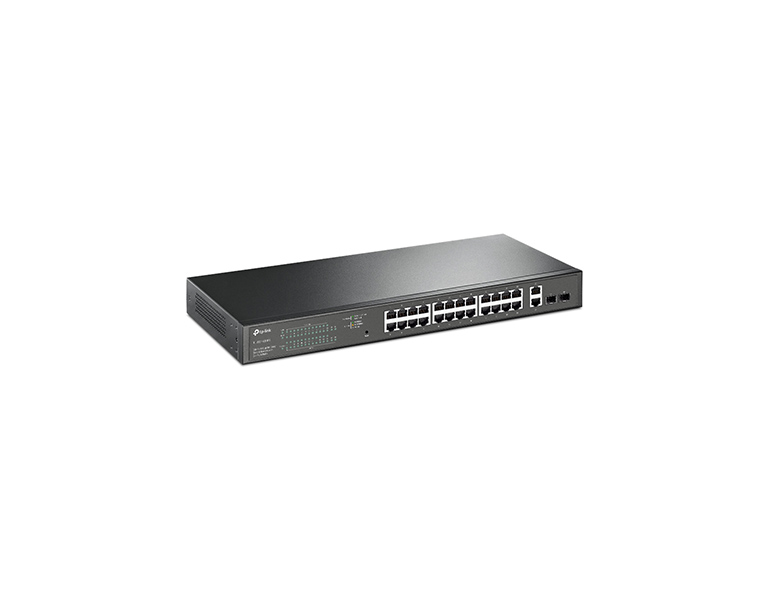

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance.

Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior.
Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

HARDWARE FEATURES
Interfaces	26 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots
PoE Standard	802.3 af/at
PoE Ports	24, up to 30 W Per Port
PoE Power Budget	250 W*
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
Max Address Table	8 K
Packet Buffer	4.1 Mbit
Jumbo Frame	10 KB
Power Supply	100-240V AC, 50/60Hz
Maximum Power Consumption (220V/50Hz)	27 W (220V/50Hz. no PD connected) 304.7 W (220V/50Hz. with 250W PD connected)
Maximum Heat Dissipation	92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 192 W PD connected)
Dimensions (W×D×H)	(440 × 220 × 44 mm)
FAN Quantity	2
Operating Temperature	0°C~50°C
Storage Temperature	-40°C~70°C
Operating Humidity	10%~90%RH, non-condensing
Storage Humidity	10%~90%RH, non-condensing
Certification	CE, FCC
SOFTWARE FEATURES
L2 Features	• Link Aggregation - Static link aggregation - Up to 8 aggregation groups and up to 4 ports per group • Loopback Detection • Port Statistics • Cable Test • Flow Control • Mirroring - Port Mirroring - Ingress/Egress/Both
IGMP Snooping	• IGMP v1/v2/v3 Snooping • 128 Max Multicast Entries
VLAN	• 802.1Q VLAN • Port Based VLAN • MTU VLAN
QoS	• Port Based, 802.1p Based, 802.1p QoS/ DSCP priority • Bandwidth Control - Ingress Rate/Egress Rate/Both • Storm Control - Broadcast/Multicast/Unknown-Unicast Control
PoE	PoE Management • PoE Auto Recovery • Extend Mode
