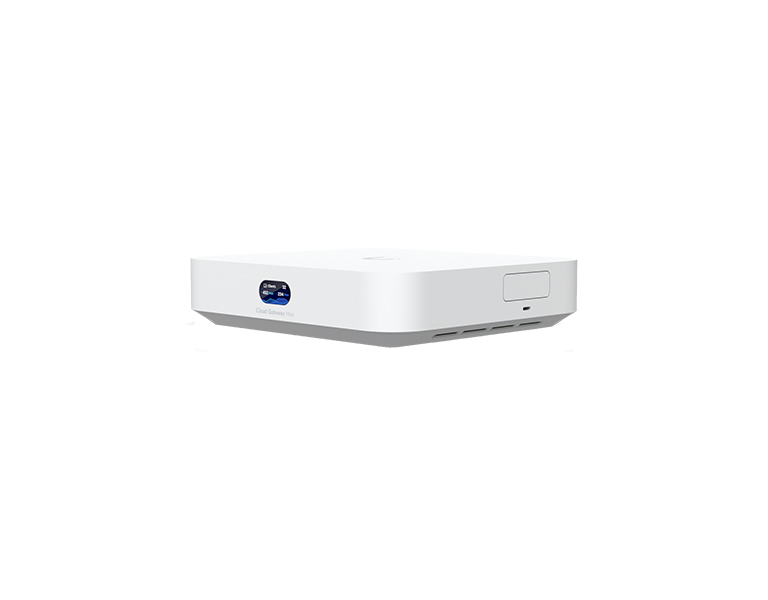

Ubiquiti UCG-MAX UniFi Cloud Gateway Max
Product Code:
UCG-MAX
Manufacturer Ubiquiti
Sales price:
395,00 €(Includes 24% VAT)
Sales price without TAX:318,55 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
Ubiquiti UCG-MAX UniFi Cloud Gateway Max
UCG-Max is a versatile device from the UniFi Cloud Gateway series. The router features (1) WAN 1/2.5Gbps port and (4) LAN 1/2.5Gbps ports (1 configurable as LAN/WAN). The compact yet powerful design supports multi-WAN functionality, including load balancing, and it also includes IDS/IPS support. The router has implemented support for various types of VPNs, including site-to-site VPN.
With the integrated UniFi Network application, you can manage up to 30+ UniFi devices and serve up to 300+ connected client devices. A 0.96" status display is also included. The device is powered via a USB-C connector, and a power adapter is included in the package.
Key Features
• 1Gbps routing with IDS/IPS support
•Integrated UniFi Network application
• Multi-WAN + load balancing
• 0.96" LCM display
• USB-C power
Package Contents
• Device
• Patch cable
• USB-C power adapter (5V/5A)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Mechanical | |
| Dimensions | 141.8 x 127.6 x 30 mm |
| Weight | 519 g |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| On-board storage | 512 GB NVMe SSD |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) 1/2.5 GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
| IDS/IPS throughput | 1.5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | USB type C (5V DC/3A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 16.1W |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| Application Requirements | |
| Mobile app | UniFi iOS™: Version 10.12.0 and later |
