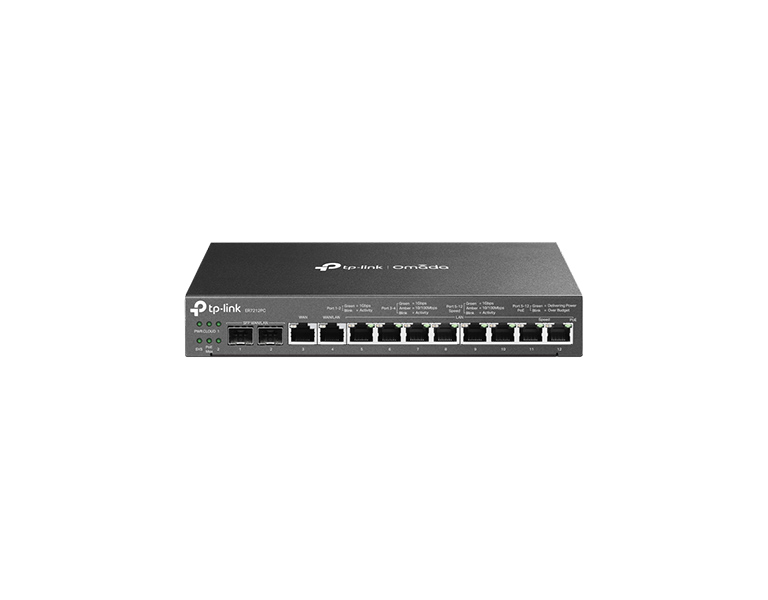

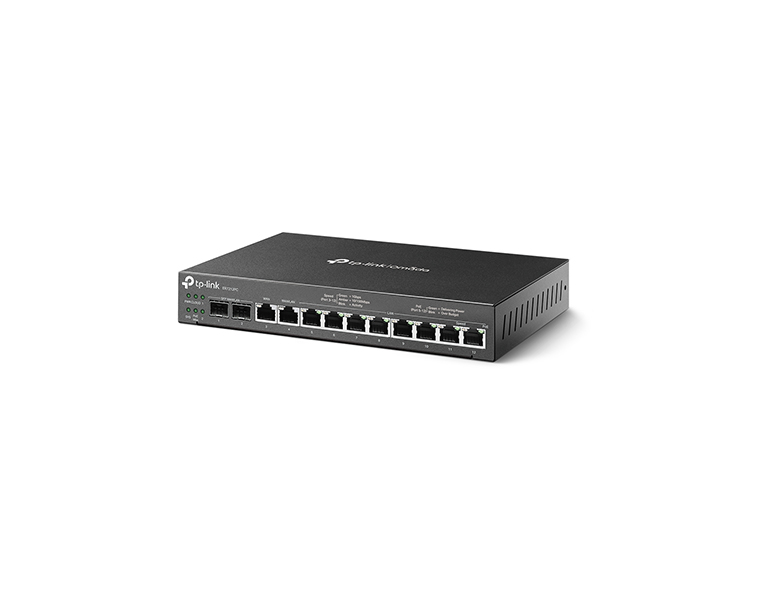

• 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
• Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
• Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
• 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
• Centralized Management: Cloud access and the Omada app offer convenience and easy management.
• Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
• Easy Installation: Fanless and compact design for desktop and wall mounting.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	60 months

Specifications
Hardware
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface	2 Gigabit SFP WAN/LAN ports 1 Gigabit WAN port 1 Gigabit LAN/WAN port 8 Gigabit LAN ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset button
Power Supply	53.5VDC/2.43A Adapter
Flash	8Mb Nor + 4 GB EMMC
DRAM	1 GB DDR3
PoE	8 ports PoE+ output, 110 W PoE Budget
Surge Protection	4 kV surge protection
Dimensions ( W x D x H )	226 × 131 × 35 mm
Fan	Fanless
Enclosure Materials	Steel
Installation	Desktop/Wall-mount
SDN Support
Integrated Controller Software	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration Management up to 1 Router, 2 Switches and 10 EAPs
Performance
Concurrent Session	24,98
New Sessions /Second	1,9
Static IP NAT Throughput (Upload /Download)	935.5 Mbps / 942.1 Mbps
DHCP NAT Throughput (Upload /Download)	940.2 Mbps / 941.7 Mbps
PPPoE NAT Throughput (Upload /Download)	913.1 Mbps / 935.2 Mbps
L2TP NAT Throughput (Upload /Download)	545.0 Mbps / 912.7 Mbps
PPTP NAT Throughput (Upload /Download)	523.0 Mbps / 912.8 Mbps
66 Byte Packet forwarding rate	(Upload / Download)
154,069 pps / 156,977 pps	1,518 Byte Packet forwarding rate
(Upload / Download)	81,193 pps / 81,193 pps
IPSec VPN Throughput (AES256)	168.5 Mbps
OpenVPN	34 Mbps
L2TP VPN Throughput	Unencrypted: 845.3 Mbps Encrypted: 333.2 Mbps
PPTP VPN Throughput	Unencrypted: 1012.6 Mbps Encrypted: 401.4 Mbps
Basic Functions
WAN Connection Type	Static IP Dynamic IP PPPoE PPTP L2TP
DHCP	DHCP Server DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
IPTV	IGMP v2/v3 Proxy
IPv6	√
VLAN	802.1Q VLAN
Transmission
Load Balance	Intelligent Load Balance Application Optimized Routing Link Backup Online Detection
NAT	Multi-Net NAT Virtual Server NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
Routing	Static Routing Policy Routing
Session Limit	IP-based Session Limit
Bandwidth Control	IP-based Bandwidth Control
VPN
IPSec VPN	20 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 SHA1, SHA2 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
PPTP VPN	PPTP VPN Server PPTP VPN Client (10)1 16 Tunnels PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server L2TP VPN Client (10)1 16 Tunnels L2TP over IPSec
OpenVPN	OpenVPN Server OpenVPN Client (10)1 16 OpenVPN Tunnels
Security
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Filtering	URL Filtering
Access Control	Source/Destination IP Based Access Control
Authentication
Web Authentication	No Authentication Simple Password Hotspot (Local User / Voucher/ SMS / Radius) External Radius Sever External Portal Sever Facebook
Management
Service	Dynamic DNS (Dyndns, No-IP)
Maintenance	Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Syslog Support
Others
Certification	CE, FCC, RoHS
Package Contents	ER7212PC, Power Adapter, Power Cord, Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0 °C to 45 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
