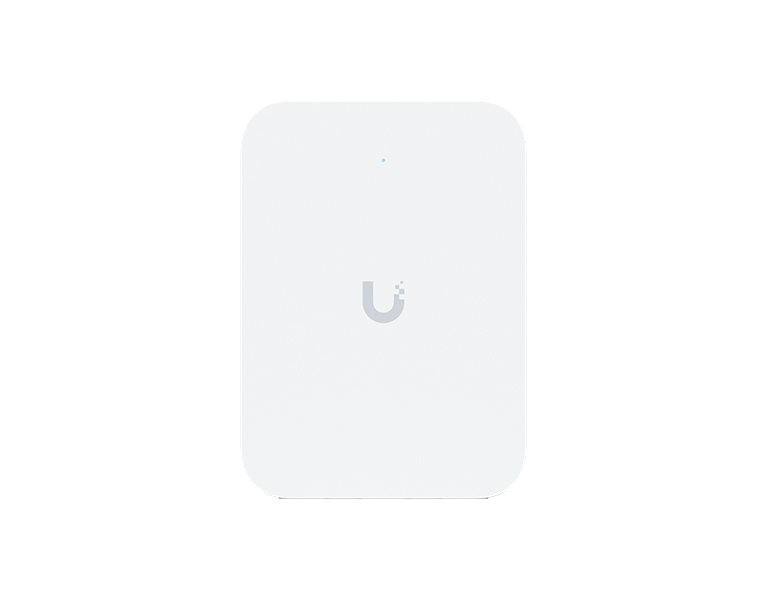

The U7-IW is a WiFi 7 access point from the UniFi family, designed for in-wall installation. Dual-band WiFi 7 offers a maximum modulation speed of up to 4.3Gbps in the 5 GHz band and up to 688Mbps in the 2.4 GHz band. For network connectivity, it features a rear (1) 2.5G ETH port, which also serves as a power input via PoE 802.3af/at or passive PoE 42.5 to 57V DC. Even after installation, you will still have access to (2) 2.5G ETH ports, one of which supports PoE-OUT for connecting an additional device. If using the PoE-OUT function, powering by PoE+ 802.3at 30W is required.

Centralized Device Management
To manage the device, you need to download the official software called UniFi Network from the official website, which allows full network control. A significant advantage of UniFi Network is that it is completely free with no limitations! This centralized management system enables you to upload maps, configure key settings such as SSID, guest accounts, landing pages, monitor traffic statistics, and view a list and status of associated clients – all quickly and easily.

Advantages of the UniFi Solution
• Roaming – seamless transition between APs without disconnections
• Wireless uplink – ideal for locations where a data cable cannot be installed
• Up to 8 SSID
• Detailed traffic statistics
• Guest network
• Voucher system
• Load balancing – maintaining even distribution of load / switching clients
• Bandwidth limitation for each SSID

Package Contents
• Device
• Wall-mounting plate
• Screws

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Dimensions	137 x 98.7 x 30.2 mm
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	115 m²
Max. Client Count	200+
Uplink	2.5 GbE
Mounting	Wall (Metal Wall Mount Included)
Power Method	PoE PoE+ (Required for PoE output)
Performance
MIMO	5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40)
Antenna Gain	5 GHz 8 dBi 2.4 GHz 4 dBi
Max. TX Power	5 GHz 24 dBm 2.4 GHz 23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates
802.11be (WiFi 7)	7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Advanced Radio Management	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal	Custom Branding Landing Page Voucher Authentication Payment-Based Authentication External Portal Server Support Password Authentication Guest Network Isolation
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Hardware
Max. Power Consumption	13W (Excluding PoE output)
Supported Voltage Range	42.5—57V DC
Networking Interface	(3) 2.5 GbE RJ45 ports
Weight	400 g
Management	Ethernet
Built-In Switch	(1) PoE+ input and (1) PoE output
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Aluminum alloy
LEDs	System: White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 40° C
Ambient Operating Humidity	5 to 95% noncondensing
Software
Application Requirements
UniFi Network	Version 9.0.114 and later
UniFi OS	iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
