Alta Labs AP6-PRO Outdoor WiFi 6 Access Point, PoE+, 4x4

Product Code:
AP6-PRO Outdoor
Manufacturer Alta Labs
Sales price: 240,00 €(Includes 24% VAT)
Sales price without TAX:193,55 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Alta Labs AP6-PRO Outdoor WiFi 6 Access Point, PoE+, 4x4

CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER

The AP6-Pro Outdoor is IP68 rated, offering maximum protection against the environment, designed to withstand harsh environments with an operating temperature of -40 to 70° C.

• IP68 for Optimal Weatherproof Protection
• 5GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA
• WiFi 6 With WiFi 7 Benefits
• Superior Range and Performance
• Omnidirectional + Mesh Connectivity
• AltaPass™ Multi-Password Technology
• Scalable Cloud-Based Management
• Mobile App
• DPI Engine
• Hotspot Functionality
• On-The-Fly Changes and Scanning
• SSID Broadcasting Flexibility

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
Mechanical
Dimensions 210 x 150 x 90 mm
Weight 0.9 kg
Enclosure Material Top Cover: Polycarbonate
Bottom Cover: Milled Aluminum
Mount material Galvanized Steel
Weatherproofing IP68
Hardware
Network Interface Ethernet, WiFi, Bluetooth
Management Interface (1) GbE RJ45 Port
Buttons Reset/Factory Reset
LEDs Blue, White
Power Method PoE+
Power Supply PoE+ Enabled Network Switch 48V, 0.5A PoE Adapter (Optional)
Supported Voltage Range 42.5 - 57V DC
Max. Power Consumption 25W Max, 7 - 15W Typical @ 23° C
Max. Transmit Power 2.4 GHz: 23 dBm @2NSS
5 GHz: 26 dBm @4NSS

MIMO

5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA
2.4 GHz: 2 x 2. DL/UL MU-OFDMA
Explicit TX beam-forming
Throughput Rate 2.4 GHz: Up to 573 Mbps
5 GHz: Up to 5.8 Gbps
Antenna Gain 2.4 GHz: Up to 3.3 dBi
5 GHz: Up to 4.3 dBi

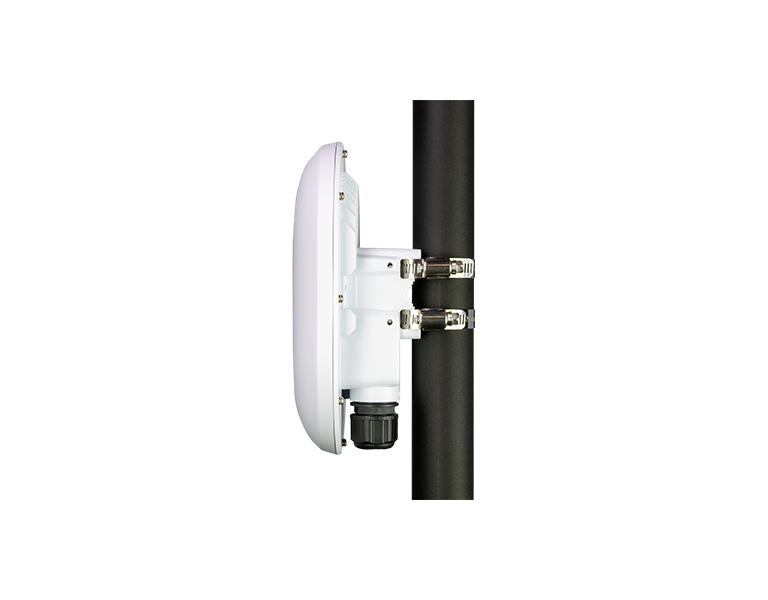

Mounting Pole mount, wall mount
Operating Temperature -40 to 70° C
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Software
Wi-Fi Standards 801.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
Roaming 802.11r/k/v
Wireless Security WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3)
Multi-BSSID Supported
VLAN 802.1Q
Advanced QoS 802.11e
Guest Traffic Isolation Supported
Concurrent Clients 300+
Zero wait DFS Yes
Intelligent WiFi Scheduling Yes
Hotspot Functionality Yes
Scalable To Stadiums Yes
Seamless Per-Client Settings VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception
Supported Data Rates
802.11a/g 6 Mbps to 54 Mbps
802.11b 1 Mbps to 11 Mbps
802.11n 6.5 Mbps to 300 Mbps (Up to MCS 31)
802.11ac 6.5 Mbps to 3.4 Gbps (Up to MCS 9)
802.11ax 2.4 GHz: Up to 573 Mbps
5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13)
Package contents Device

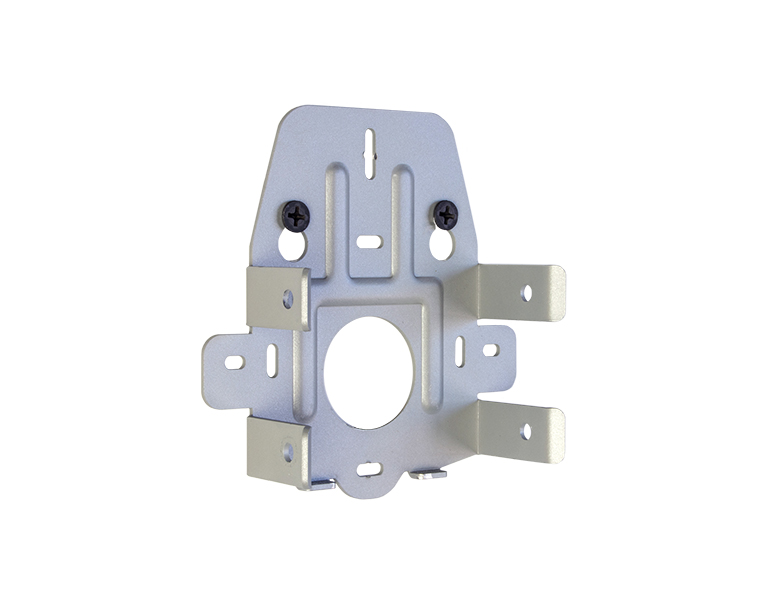

Wall and pole holder
Screws, dowels
(2) metal drawstring
