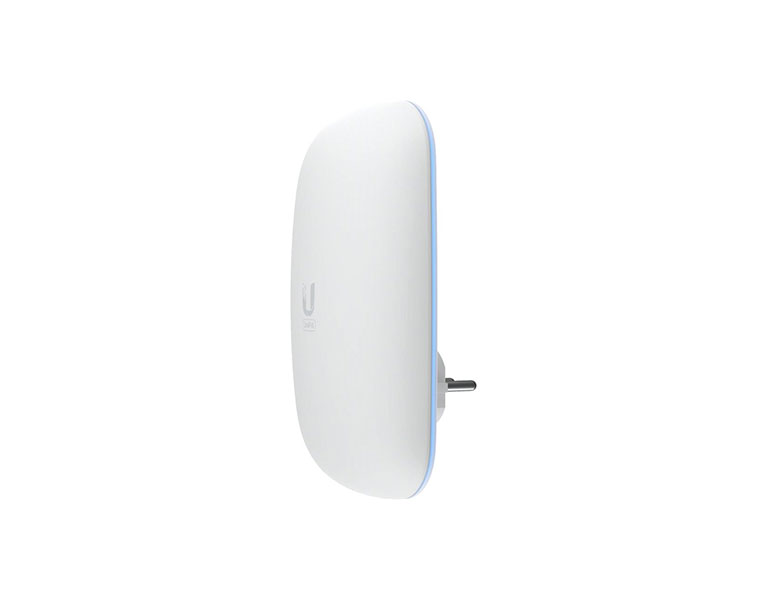

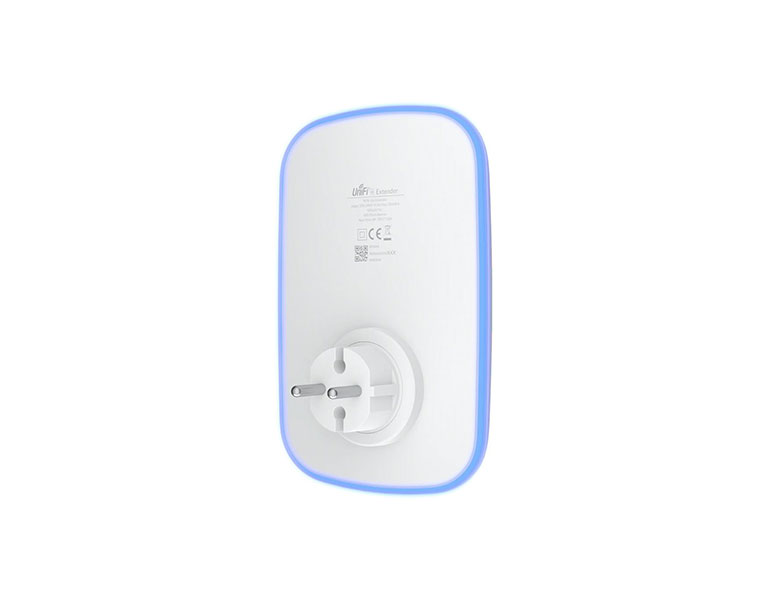

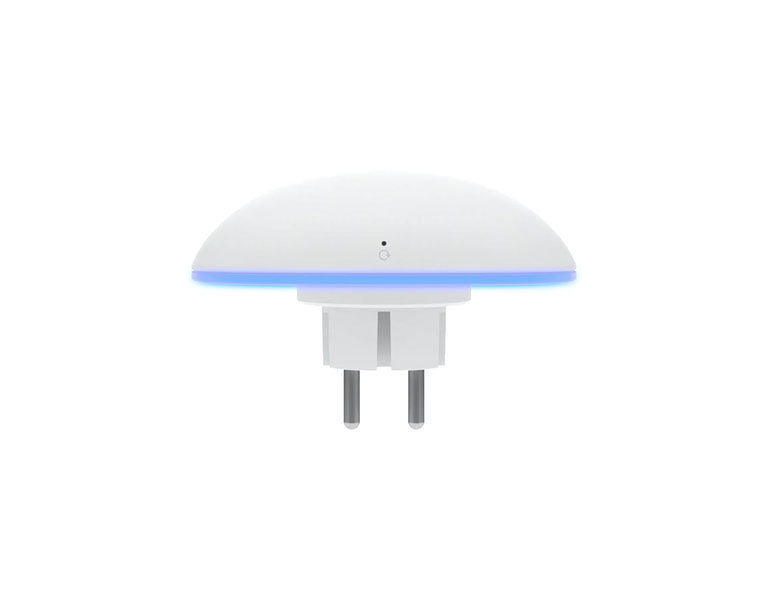

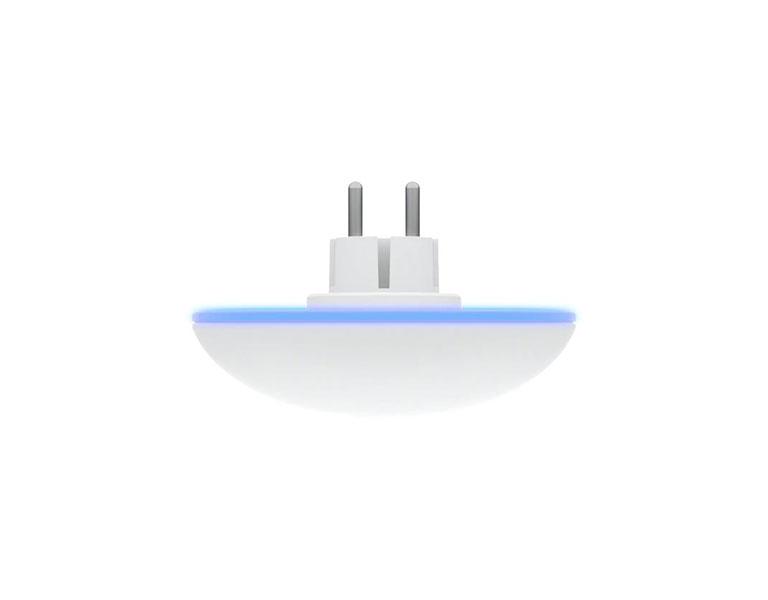

The UniFi6 Extender (U6 Extender) is a portable, easy-to-deploy WiFi 6 access point that can instantly broaden your home or office's wireless coverage. With its dual-band design and 5.3+ Gbps aggregate throughput rate, the U6 Extender delivers the strong, reliable connectivity needed to support even the most device-dense networks. Engineered for plug-and-play simplicity, this access point fits any standard EU duplex wall outlet and its compact frame allows you to strengthen your signal without cluttering your space or disrupting its aesthetic. The U6 Extender can be adopted to your network in a matter of minutes and centrally managed with either the UniFi Network web application or mobile app.

Features:

• Dual-band WiFi 6 connectivity
• 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
• 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
• Fits any standard EU duplex wall outlet
• Easily extends wireless coverage across large homes or offices

Important: These requirements must be met to wirelessly adopt the U6 Extender:

• APs providing wireless connectivity for the U6 Extender must be updated to Version 6.0.11 or later.
• Dream Machines (UDM) must be updated to Version 1.12.22 or later.
• Dream Routers (UDR) must be updated to Version 2.3.15 or later.

Note. Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical
Dimensions	169.7 x 112.2 x 32.2 mm
Weight	290 g
Enclosure material	Plastic
Hardware
Management interface	Bluetooth
Button	Factory reset
LED*	White/blue *Duetochipsupply shortages,theU6AP's LEDhas beenlimitedtoonlywhiteandbluecolormodes.
Power method	Universal AC input, 100-240VAC, 0.3A max., 50/60 Hz
Supported voltage range	110 to 240VAC
Max. power consumption	11W
Max. TX power	2.4 GHz 22 dBm 5 GHz 26 dBm
MIMO	2.4 GHz 2 x 2 (UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO)
Throughput rate	2.4 GHz 573.5 Mbps 5 GHz 4.8 Gbps
Antenna gain	2.4 GHz 5 dBi 5 GHz 6 dBi
Operating temperature	-10 to 50° C
Operating humidity	5 to 95% noncondensing
Certications	FCC, IC
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced	QoS Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Zero wait DFS	Yes
Supported DataRates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	(WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
802.11ac	(WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax	(WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
