Ubiquiti UDW - UniFi Dream Wall

Product Code:
UDW
Manufacturer Ubiquiti
Sales price: 1330,00 €(Includes 24% VAT)
Sales price without TAX:1072,58 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

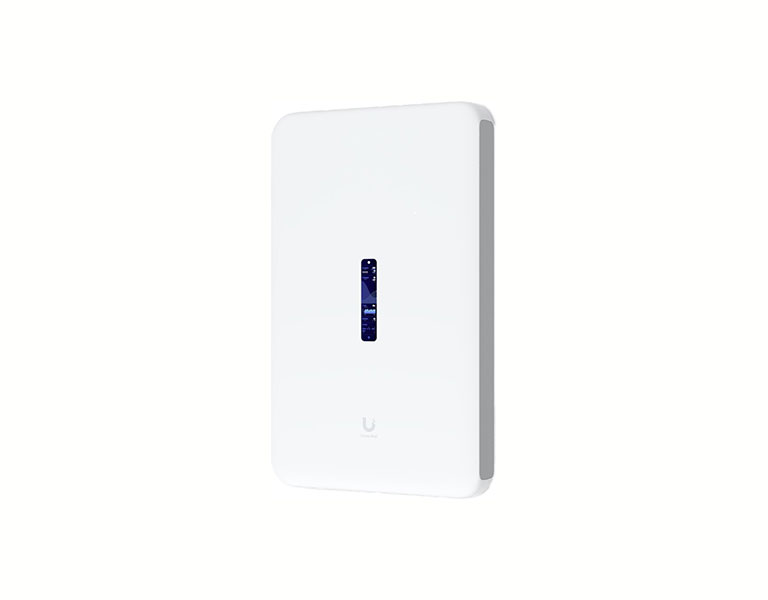

Ubiquiti UDW - UniFi Dream Wall

Dream Wall is another in the range of UniFi All-in-one devices. It contains a gateway with a firewall, Wi-Fi 6 access point, NVR and a switch with PoE function. The unit provides a wide range of network connectivity options. It offers the option of connecting via a 10Gbps SFP+ port or a 2.5Gbps Ethernet port. For connecting other devices in the LAN, it offers a 10Gbps SFP+ port together with 17 Ethernet 1Gbps ports, of which 12 have PoE functionality (4x POE++, 4x POE+ and 4x POE). From the factory, the device is equipped with one hot-swap source with a power of 550W, and a second position is available for redundancy. The maximum consumption of the device is 532W including connected powered devices.

The radio part supports the latest WiFi 6 (802.11ax) standard, is backward compatible with older standards and has MIMO 2x2 (2.4 Ghz) and 4x4 (5 GHz) with a maximum modulation speed 300 + 2400 Mbps.

All important information about the device and the network can be accessed immediately thanks to the integrated display with a diagonal of 4.7". The pre-installed 512GB microSD card is used for storing camera recordings, and the device also has own SSD disk with a capacity of 128GB.

Features:

• Integrated Enterprise WiFi6 (4x4 MIMO)
• Full UniFi OS and UniFi application support
• 3.5+ Gbps routing
• (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
• (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
• 4.7" touchscreen for management
• Integrated 128 GB SSD & pre-installed 512 GB microSD card

Package contents

• Device with pre-installed 512GB microSD card
• Screws and dowels
• Drilling template
• Wall mount
• Power cord

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
Dimensions 549 x 342 x 62 mm
Weight 8.6 kg
Enclosure material Polycarbonate, galvanized steel, aluminum alloy
Mount material Stainless steel
Hardware
Processor specs Quad-core ARM Cortex -A57 at 1.7 GHz
System Memory 4 GB DDR4
On-board storage 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card
Expansion slot MicroSD memory card
*Requires a memory cardwithatleast128GB of storage.
Management interface Ethernet
Bluetooth
WiFi
Networking interfaces (17) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 port
SFP+ interface (1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port
PoE interface (4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply (2) Hot-Swappable AC/DC 550W PSU *Comes with(1) pre-installedPSU.
Max. power consumption 532W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V PoE+/PoE++: 50—57V
Max. TX power 2.4 GHz: 23 dBm
5 GHz: 26 dBm
MIMO 2.4 GHz: 2 x 2
5 GHz: 4 x 4
Throughput rate 2.4 GHz: 300 Mbps
5 GHz: 2.4 Gbps
Antenna gain 2.4 GHz: 5.9 dBi
5 GHz: 6 dBi
ESD/EMP protection Air: ± 8kV, contact: ± 4kV
LCM display (1) 4.7" touchscreen
Button Factory reset
Mounting Wall mount(included)
Operating temperature -10 to 40° C
Operating humidity 5 to 95% noncondensing
Certications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
WiFi 4/WiFi 5/WiFi 6
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
LEDs
Ethernet White: link/activity
SFP+ White: link/activity
PSU Blue: ready
Amber: failure
Suppoted Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps
(MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps
(MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps
(MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
