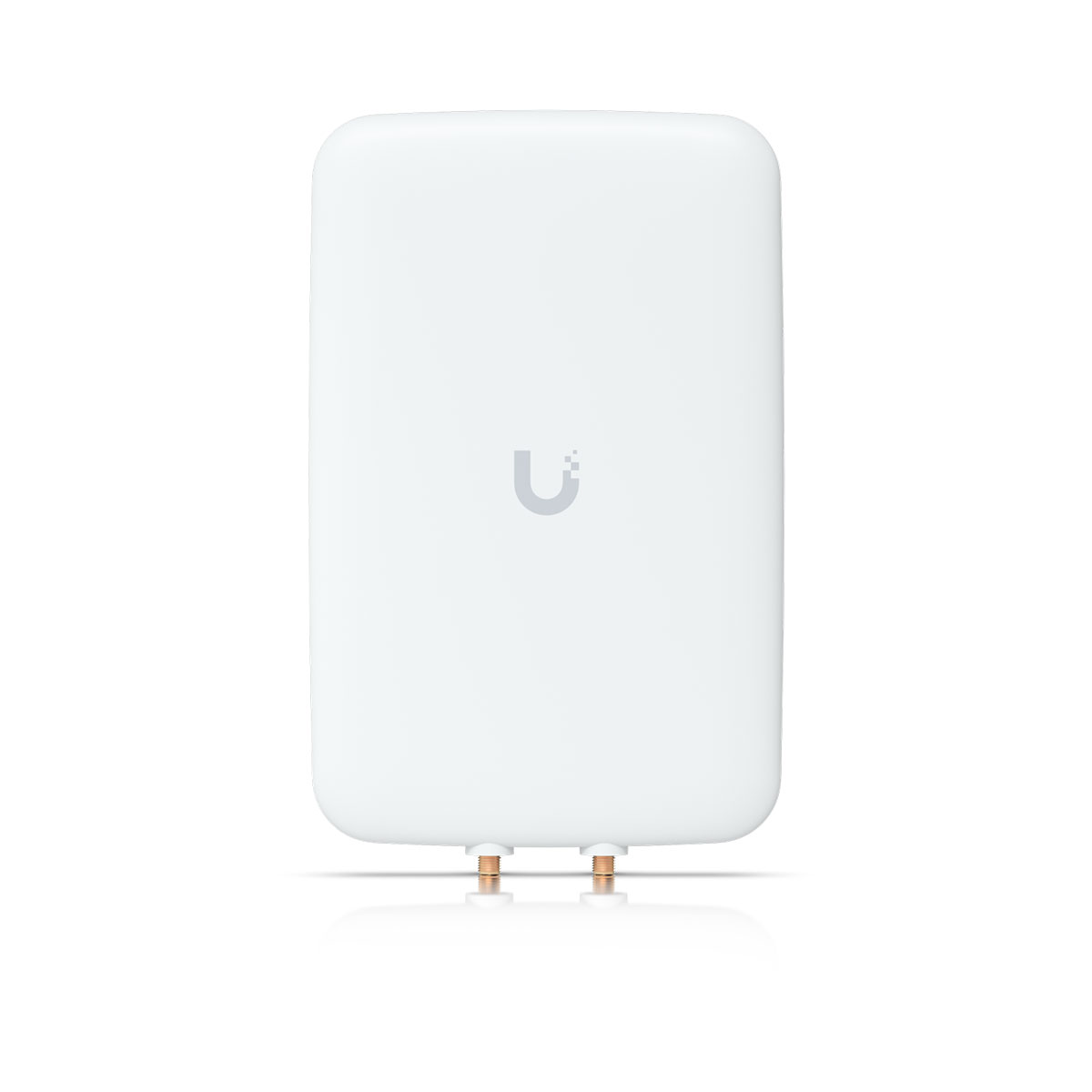

Ubiquiti UMA-D Directional Dual-Band Antenna for UAP-AC-M
Product Code:
UMA-D
118,00 €
(Includes VAT 24%)
Sales price without VAT:
95,16 €
Available
Ubiquiti UMA-D Directional Dual-Band Antenna for UAP-AC-M
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.
Antenna Features Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

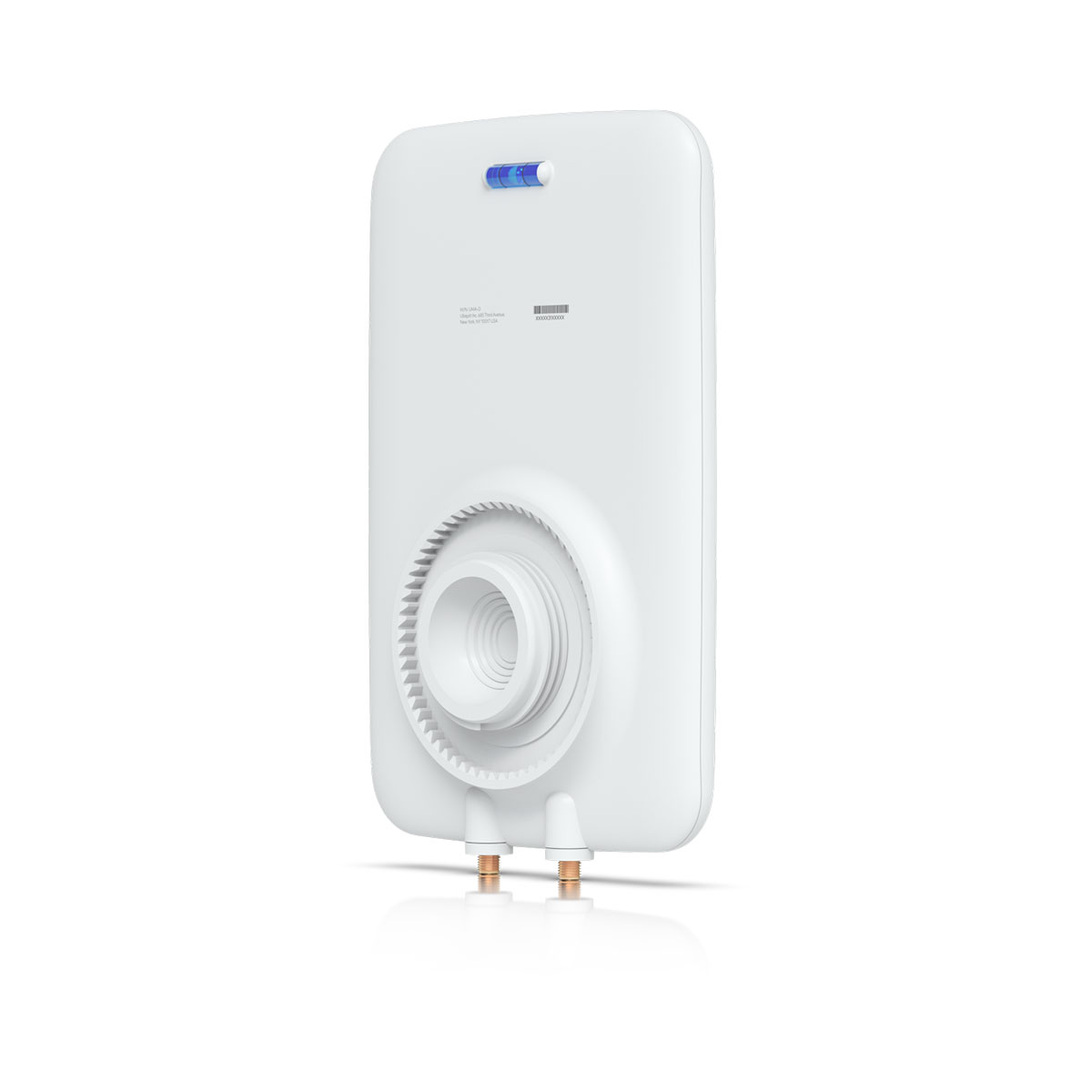

Versatile Mounting The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Characteristics
| Specifications | |
| Dimensions | 201.3 x 128.0 x 32.5 mm |
| Weight (with Mount) (without Mount) |
480 g 400 g |
| Enclosure | Outdoor UV Stabilized Plastic |

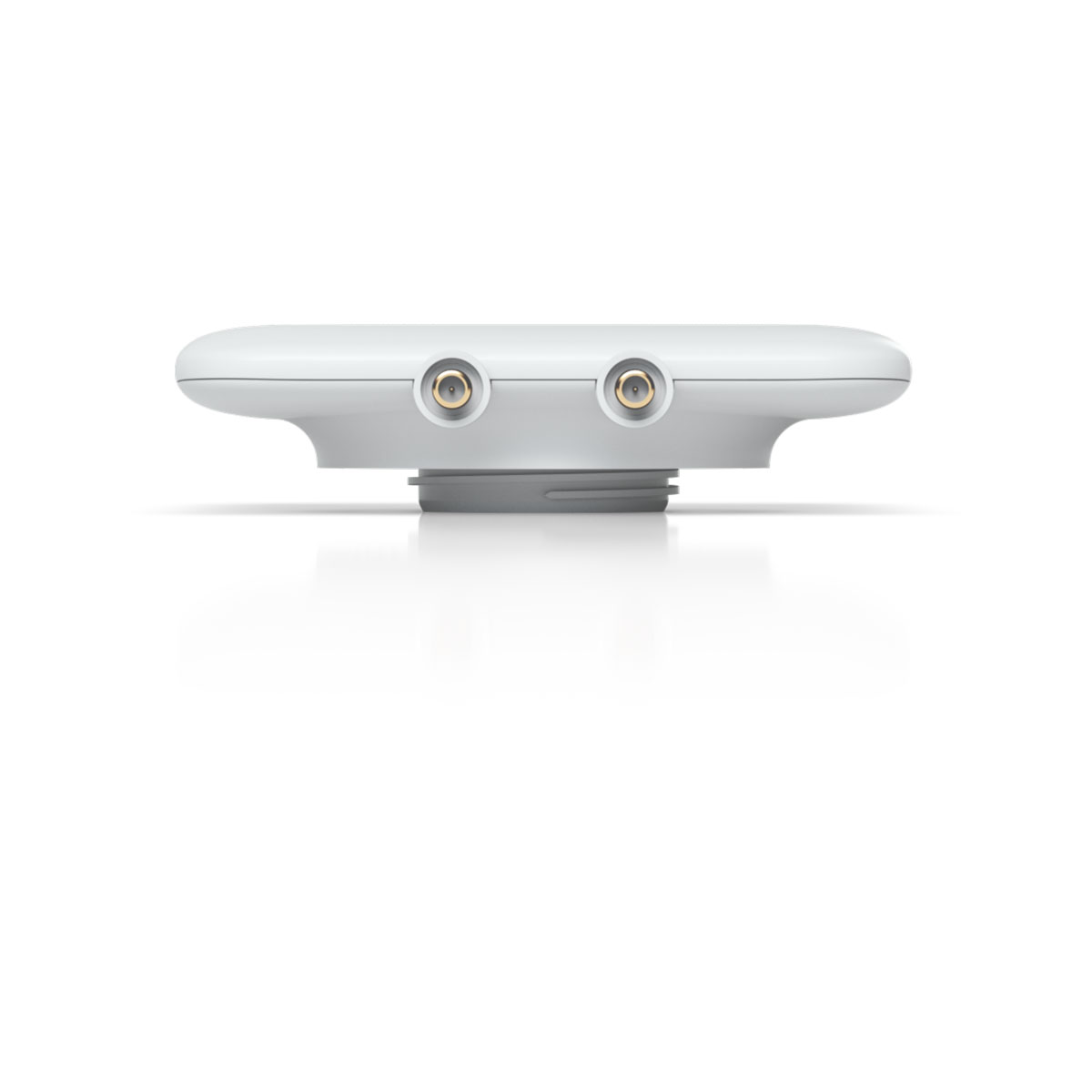

| RF Connections | (2) RP-SMA |
| Supported Frequency Range | 2.4 - 2.5 GHz, 5.1 - 5.9 GHz |
| HPOL Beamwidth 2.4 GHz 5 GHz |
90° 45° |
| VPOL Beamwidth 2.4 GHz 5 GHz |
90° 45° |
| Elevation Beamwidth 2.4 GHz 5 GHz |
90° 45° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation 2.4 GHz 5 GHz |
25 dB 30 dB |
| Antenna Gain 2.4 GHz 5 GHz |
10 dBi 15 dBi |
| Mounting | Wall/Pole (Kits Included) |
