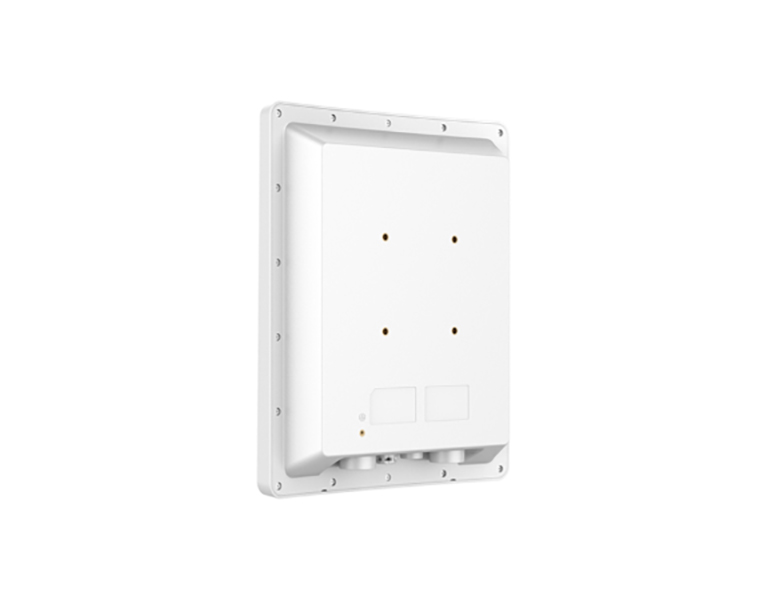

Grandstream GWN7664ELR Outdoor 802.11ax 4x4:4 MU-MIMO Wi-Fi 6 Access Point

Product Code:
GWN7664ELR
Manufacturer Grandstream
Sales price: 210,00 €(Includes 24% VAT)
Sales price without TAX:169,35 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Grandstream GWN7664ELR Outdoor 802.11ax 4x4:4 MU-MIMO Wi-Fi 6 Access Point

CAUTION PACKAGE DOES NOT INCLUDE POWER SUPPLY

The GWN7664ELR is a high-performance outdoor long-range 802.11ax Wi-Fi6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces. It offers IP67-level weatherproof capability, dual-band 4×4:4 MU-MIMO with OFDMA technology and a sophisticated antenna design for up to 6 Gbps wireless throughput that supports 512 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. This device features support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 2.5 Gigabit Ethernet port with PoE+, and a 2.5 Gigabit SFP port. TheGWN7664ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Features:
• 6Gbps aggregate wireless throughput, 2.5Gbps RJ45 and 2.5Gbps SFP wireline ports
• Dual-band 4x4:4 MU- MIMO with OFDMA technology
• 2.5 Gigabit Ethernet Port supports self power adaptation upon auto detection of PoE+
• Supports 512 concurrent Wi-Fi client devices
• Up to 300-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• AAnti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Flexibility of 8 internal antennas
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.





Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
WiFi Standards IEEE 802.11 b/g/n/ac/ax
Antennas 8 dual band internal antennas
2.4GHz, gain 5.5dBi
5 GHz, gain 6.5dBi
WiFi Data Rates 5G:
IEEE 802.11ax: 7.3 Mbps to 4804 Mbps IEEE 802.11ac: 6.5 Mbps to 3467 Mbps IEEE 802.11n: 6.5Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 1147 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz radio: 2400 - 2483.5 MHz
5GHz radio: 5150-5850 MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth 2.4G: 20 and 40 MHz (x4)
5G: 20,40 and 80 MHz (x4)
System Security WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 4×4:4 2.4GHz,
4×4:4 5GHz
Coverage Range Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power 5G: 23.5dBm
2.4G: 24.5dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 2.4G
802.11b: -97dBm@1Mbps, -89dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -93dBm @6Mbps, -75dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11; 802.11ax 160MHz:-55dBm@MCS11;
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 512

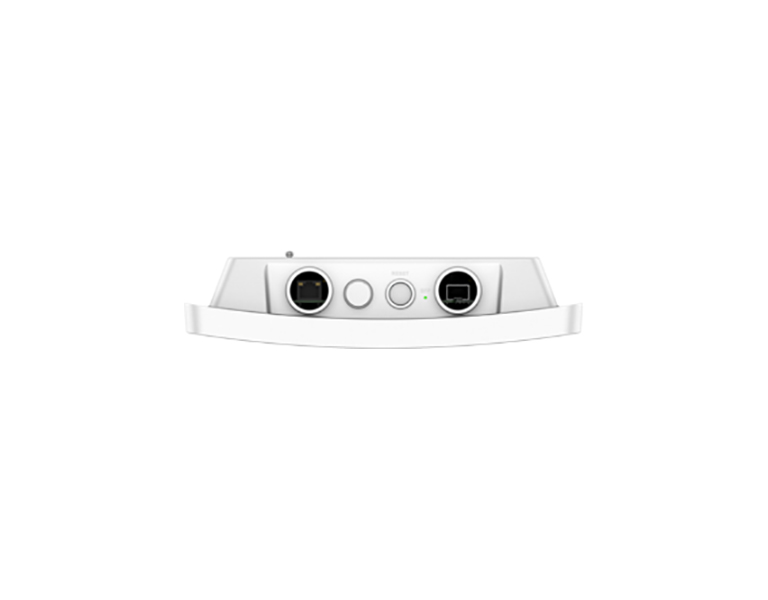

Network Interfaces 1x 2.5G RJ45 Port and 1x 2.5G SFP Port
Auxiliary Ports 1x Reset Button
Mounting Wall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°)
LEDs 1 tri-color LEDs for device tracking and status indication, 1 single-color LED for SFP indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3at
Maximum Power Consumption: 24W
Environmental Operation:-30°Cto 60°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 260mm(L)x310mm(W)x59mm(H); Unit Weight: 1.445kg
Entire Package Dimension: 469mm x 377mm x 137mm; Entire Package Weight: 3.06kg
Package Content GWN7664ELR 802.11ax Wireless AP
Mounting Kits
Quick Installation Guide
Weatherproof Grande IP67-level weatherproof capability
Compliance FCC, CE, RCM, IC
