QuWireless AX50M QuMax Antenna for Teltonika RUTX50 / RUTM51 / RUTM54
INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + WI-FI OMNI ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTX50/RUTM51/RUTM54 (ALL-IN-ONE)

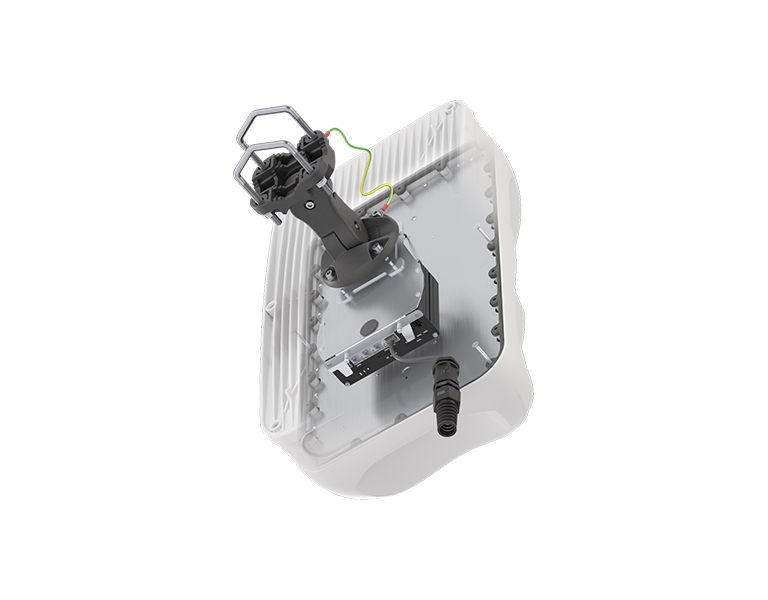

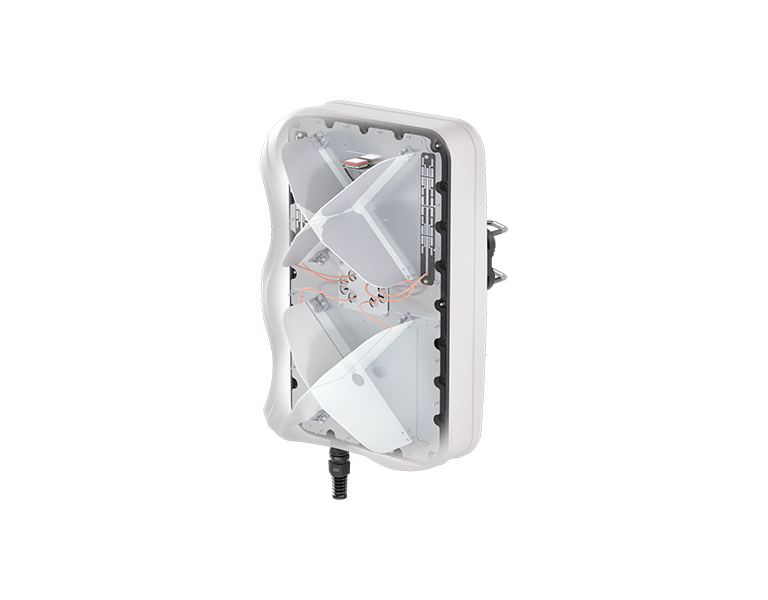

QuMax for RUTX50/RUTM51/RUTM54 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi and GPS antennas integrated in IP68 (IP67) enclosure. It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments. Combining QuMax with RUTX50, RUTM51 or RUTM54 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| 5G/LTE Antenna | |
| Frequency | 0.617 - 0.96 GHz 1.7 - 2.7 GHz 3.3 - 4.6 GHz 4.7 - 6.0 GHz |
| Supported LTE Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 |
| Supported 5G bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 0.617 - 0.96 GHz: 6 dBi 1.7 - 2.7 GHz: 7 dBi 3.3 - 4.6 GHz: 7 dBi 4.7 - 6.0 GHz: 5.5 dBi |
| VSWR | <2.00, max <3.00 |
| Beamwidth | 80°/80° ±15° |
| Polarization | X (+-45degrees) |
| Connector | 4x SMA |
| Cable Type | RG316 |
| Impedance | 50 Ω |
| Wi-Fi Antenna Specification | |
| Frequency | 2.4 - 2.5 GHz 5.0 - 7.125 GHz |
| Gain | 2.40 - 2.50 GHz : 6 dBi 5.0 - 7.125 GHz : 7.5 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 2x RPSMA |
| Cable Type | RG316 |
| GPS Active Antenna Specification | |
| Frequency | 1.56 – 1.61 GHz |
| VSWR | <2 |
| GAIN | 3 dBi |
| Gain 3V | 28 dBi |
| DC Power Input | 2.5 V ~ 6.5 V |
| Power Consumption | 2.5-6.5mA |
| Impedance | 50 Ω |
| Polatization | RHCP (right hand circularly polarized) |
| Connector | 1x SMA |
| Cable type | RG174 |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 |
| Ingress | IP68 |
| Dimensions | 486.0 x 292.2 x 210.0 mm |
| Weight | 2.8 kg |
| Operating Temperature | From -40°C to 80°C |

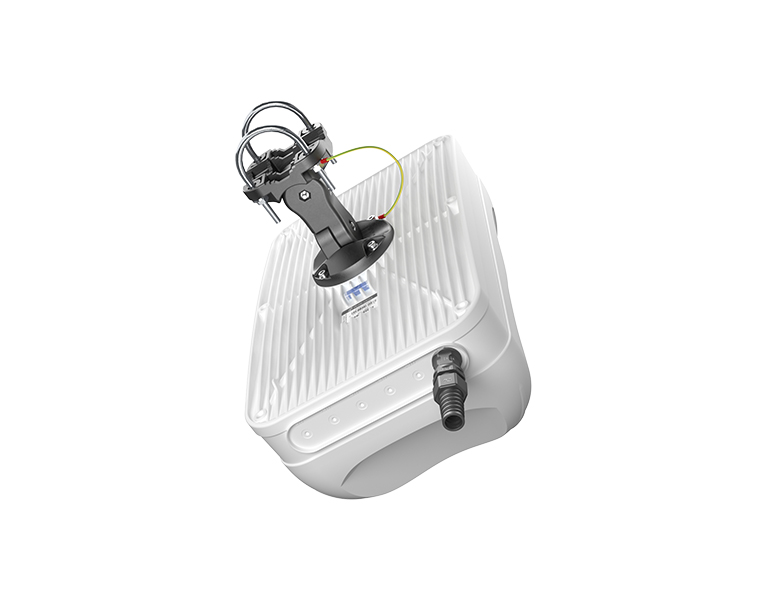

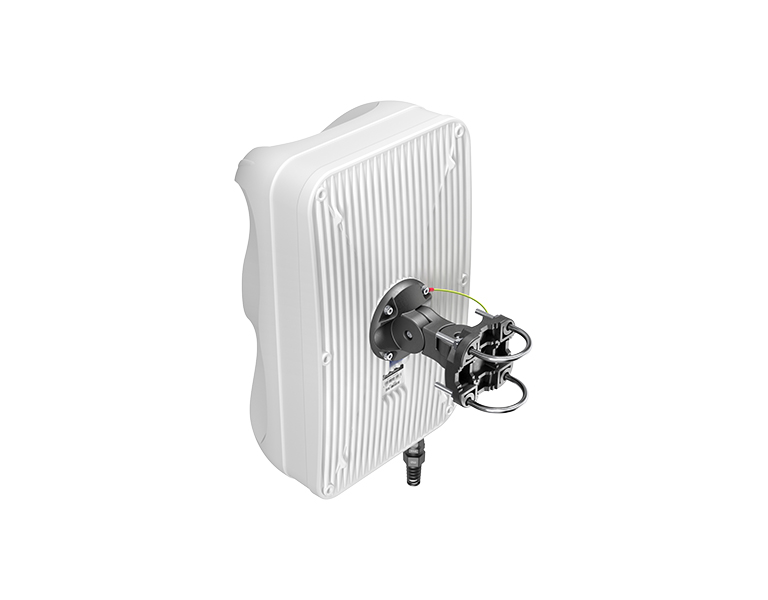

| Mounting Kit | |
| Dimensions | 9.9 x 10.5 x 14.8 cm |
| Regulation Range | +/- 30° |
| Mast Diameter Range | 25 - 60mm |
| Material | Polyamide with fiberglass + galvanized steel U-Bolts |
| Mounting Place | Wall or ceiling or mast |
