QuWireless AX50S LTE & 5G/Wi-Fi/GPS Antenna for RUTX50 and RUTM50 Routers
Product Code:
AX50S
Manufacturer QuWireless
Sales price:
233,00 €(Includes 24% VAT)
Sales price without TAX:187,90 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

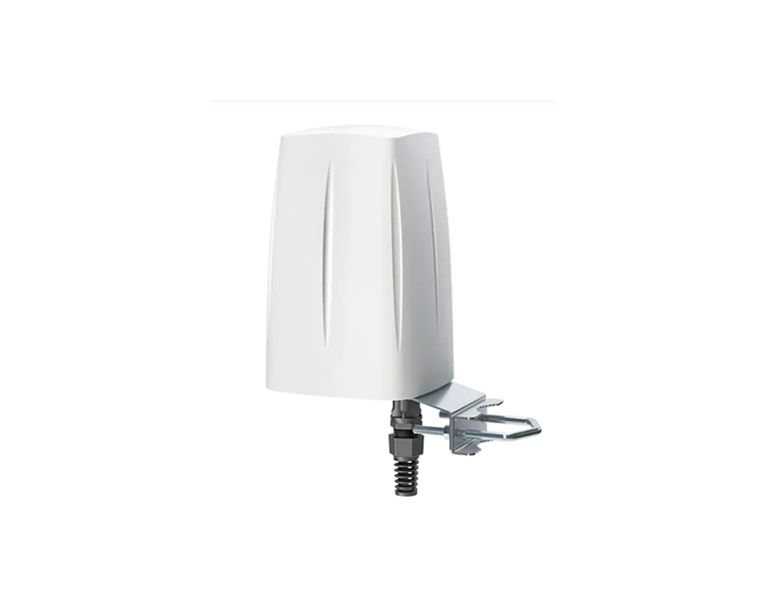

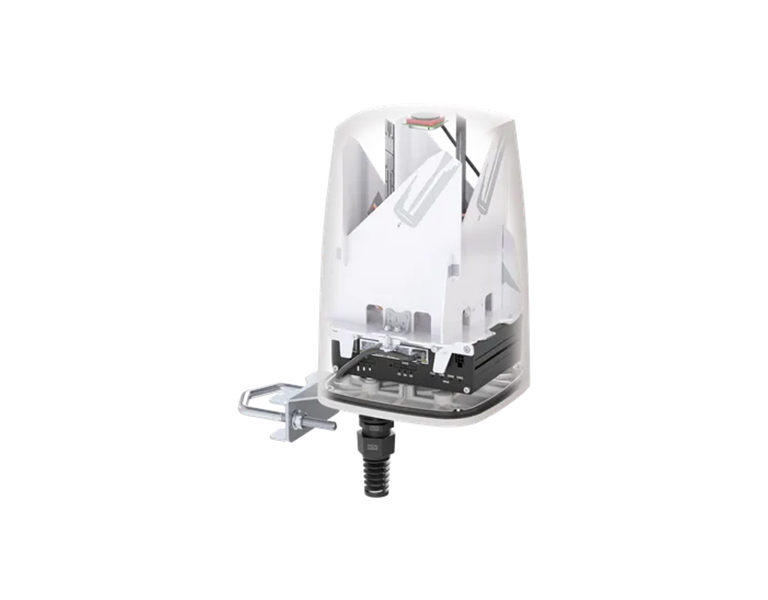

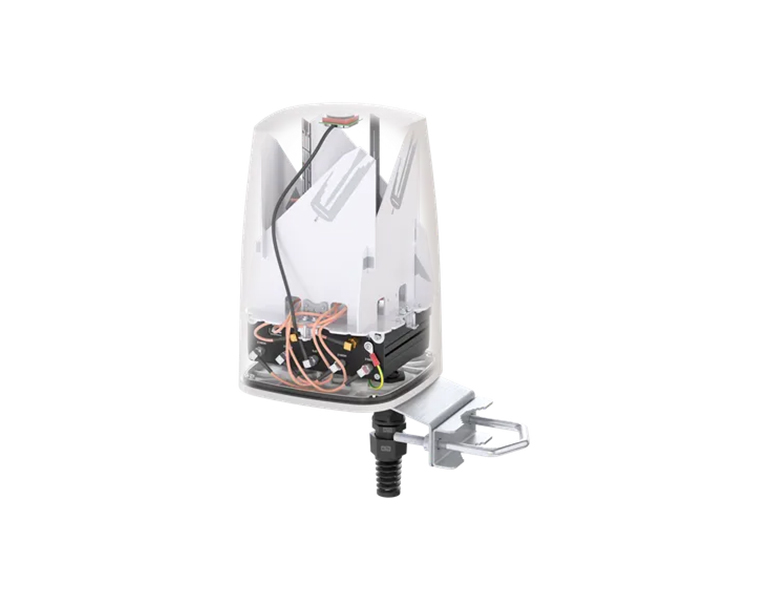

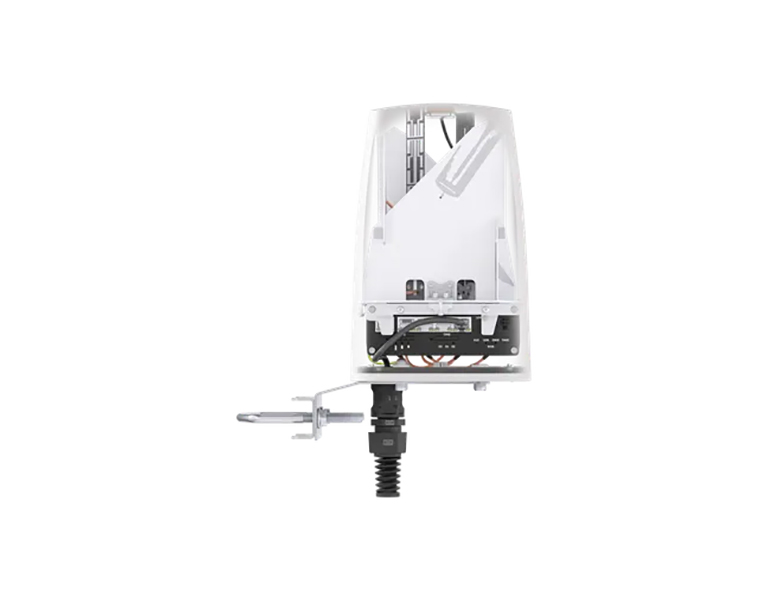

QuWireless AX50S LTE & 5G/Wi-Fi/GPS Antenna for RUTX50 and RUTM50 Routers
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL TELTONIKA RUTX50/RUTM51/RUTM54 (ALL-IN-ONE)
QuSpot for RUTX50/RUTM51/RUTM54 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi-Fi antennas with RUTX50, RUTM51, RUTM54 into a single IP68 (IP67) enclosure. Such integration allows implementation of new outdoor 5G solutions.
QuSpot for RUTX50/RUTM51/RUTM54 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| LTE Antenna | |
| Frequency | 617 - 960 MHz 1.7 - 2.7 GHz 3.3 - 4.7 GHz 5.2 - 6.0 GHz |
| Supported LTE Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101 |
| Supported 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 617 - 960 MHz : 2 dBi 1.7 - 2.7 GHz : 4 dBi 3.3 - 4.7 GHz : 4.5 dBi 5.2 - 6.0 GHz : 2 dBi |
| VSWR | <2.00, max <2.50 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 4x SMA |
| Cable type | RG316 |
| Wi-Fi Antenna Specification | |
| Frequency | 2.4 - 2.5 GHz 4.7 - 6 GHz |
| Gain | 2.4 - 2.5 GHz : 6 dBi 4.7 - 6 GHz : 7.5 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 2x RPSMA |
| Cable type | RG316 |
| GPS Active antenna specification | |
| Frequency | 1.56 – 1.61 GHz |
| VSWR | <2 |
| Gain | 3 dBi |
| DC Power Input | 2.5 V - 6.5V |
| Power Consumption | 2.5-6.5mA |
| Impedance | 50Ω |
| Polarization | RHCP (right hand circularly polarized) |
| Connector | 1x SMA |
| Cable Type | RG174 |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE |
| Connector type | RJ45 |
| Ingress | IP68 |
| Dimensions | 160 x 160 x 240 mm |
| Weight | 1.5 kg |
| Operating Temperature | From -40°C to 75°C |
| Mast Diameter | 40-66 mm |
| Included Bracket Wind Survival | <190 km/h |
| Optional Bracket Wind Survival (2x U-Bolt) | <220 km/h |
