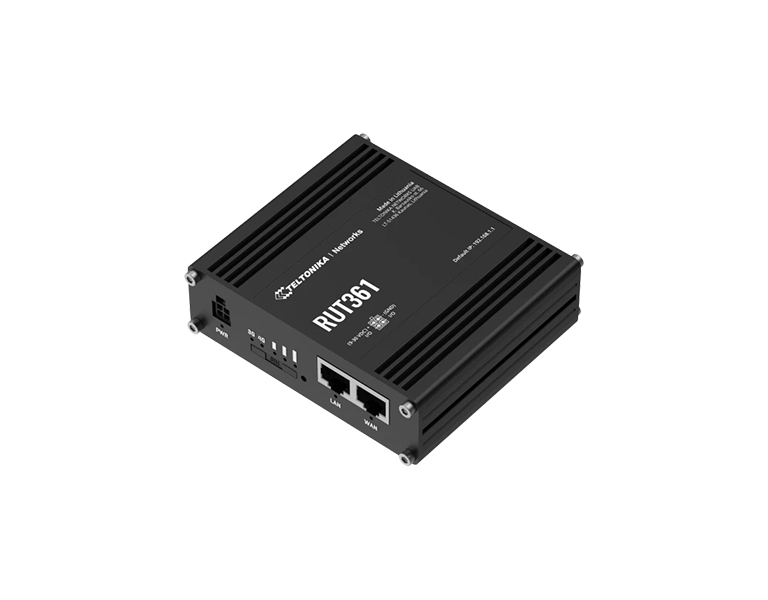

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Hardware
Mobile	4G (LTE) – Cat 6 up to 300 Mbps (DL) / 50 Mbps (UL), 3G up to 42 Mbps (DL)
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128MB, DDR2
Storage	16MB serial NOR flash
Ethernet	2 x RJ45 ports, 10/100 Mbps
WiFi	802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA)
Powering options	4-pin industrial DC power socket, 9 - 30 VDC
Inputs/Outputs	2 x Digital Input, 2 x Digital Output on 4-pin power connector
Antenna connectors	2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi
SIM	1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Status LEDs	2 x Mobile connection type, 3 x Mobile connection strength, 2 x ETH status, 1 x Power
Operating temperature	-40 °C to 75 °C
Housing	Aluminium housing
Dimensions(WxHxD)	93.2 x 100 x 30 mm
Weight	243 g
Software
Operating system	RutOS (OpenWrt based Linux OS)
Mobile features	Multiple PDN, Auto APN, Band lock, Operator black/white list, Data/SMS limits
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
Network	Failover (Network backup), VLAN, QoS, Load Balancing
VPN and tunneling	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Monitoring and Management	WEB UI, CLI, SSH, CALL, SMS,TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Connection monitoring	Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions	RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
SMS features	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services	DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP
Standard Package Contains	• Router RUT361 • 18 W PSU • 2x Mobile antennas (swivel, SMA male) • 2x Wi-Fi antennas (swivel, RP-SMA male) • Ethernet cable (1.5 m) • SIM Adapter kit • QSG (Quick Start Guide) • Packaging box
