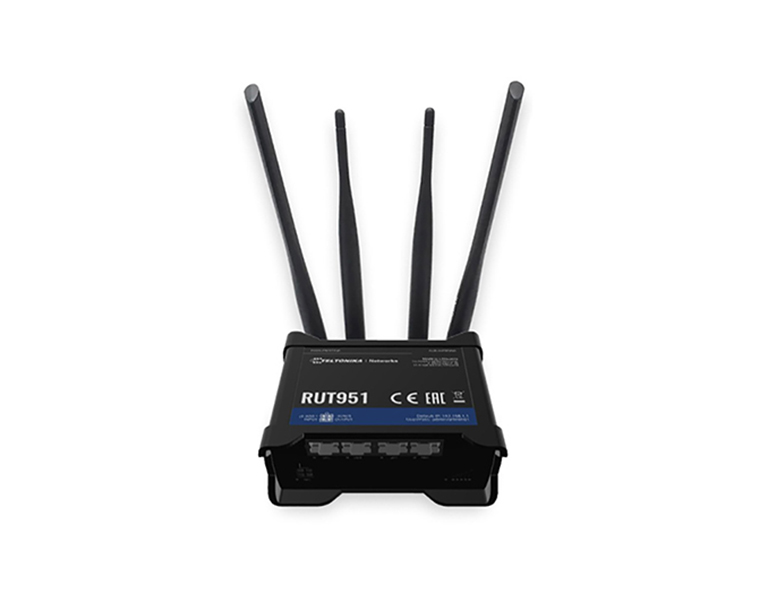

Teltonika RUT951 4G Professional LTE Router

Product Code:
RUT951
Manufacturer Teltonika
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Teltonika RUT951 4G Professional LTE Router

Each Teltonika Networking device comes with 1 month of free RMS service
New model with 2 years factory warranty!

RUT951 took the best features from one of the most popular Teltonika Networks cellular routers - RUT950. This device features dual SIM 4G cellular connectivity combined with Wi-Fi and 4 Ethernet interfaces to meet the needs of the most varied IoT solutions. Automatic WAN failover to an available backup connection ensures network continuity and eliminates downtime. Powered by RutOS that offers customization options for professional use, automation features, and top-level security for your solution. Compatible with the Teltonika Networks Remote Management System (RMS) enables secure remote management to save time and expenses.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
Hardware
Mobile 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW)
Wireless
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users Up to 100 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
Network
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS/ Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
Security
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control   Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Secure Boot  Cryptographic integrity check of the each system boot process (available on device with special order code RUT950U072C0).
Ethernet
WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN  3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
VPN
Open VPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
DMVPN Method of building scalable IPsec VPNs
SSTP ZeroTier VPN
WireGuard WireGuard VPN client and server support
MODBUS TCP Slave
ID range Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS Data to Server
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS Data to Server
Protocol HTTP(S), MQTT, Azure MQTT
MQTT Gateway
MQTT gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
Monitoring & Management
Web UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
CALL Reboot, Status, WiFi on/off, Mobile data on/off, Output on/of
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
IoT Platforms
Cloud of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
System Characteristics
CPU Mediatek, MT7628, 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
Firmware / Configuration
Web UI  Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
Firmware Customization
Operating System RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development SDK package with build environment provided
Input/ Output
Input 1 x Digital input, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital open collector output, max output 30 V, 300 mA
Events SMS, EMAIL, RMS
Power
Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption < 2 W idle, < 7 W Max
Physical Interfaces (Ports, Leds, Antennas, Buttons, SIM)
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4 pin power connector (available from HW revision 1600)
Status LEDs 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power 1 x 4 pin power connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
Reset Reboot/User default reset/Factory reset button
Physical Specification
Casing material Aluminium housing, plastic panels
Dimensions
(W x H x D)
110 x 50 x 100 mm
Weight 287 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals
Regulatory CE/ RED, UKCA, CB
EMI IMMUNITY
Standards EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
ESD EN 61000-4-2:2009
RS EN 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
RF
Standards EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1
Safety
Standards EN IEC 62311:2020 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020
Standard Package Contains • Router RUT951
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• SIM Adapter Kit
• Ethernet cable (1.5 m)
• RMS Flyer
• QSG (Quick Start Guide)
• Packaging box
