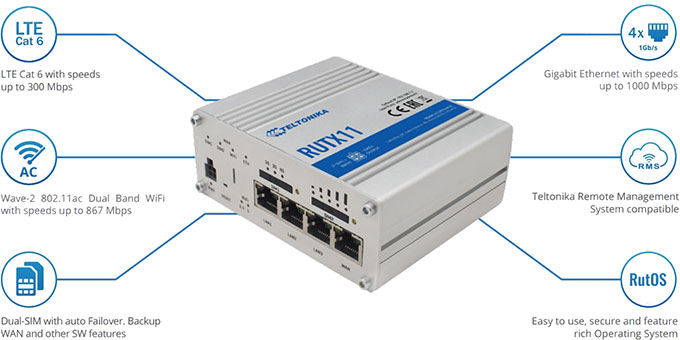

RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.

Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Specifications
Hardware
Mobile	4G/LTE (Cat 6), 3G
CPU	Quad Core ARM Cortex A7 717 MHz CPU
Memory	256 MB RAM
Storage	256 MB Flash
Powering option	4pin power socket, 9-50 VDC
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS

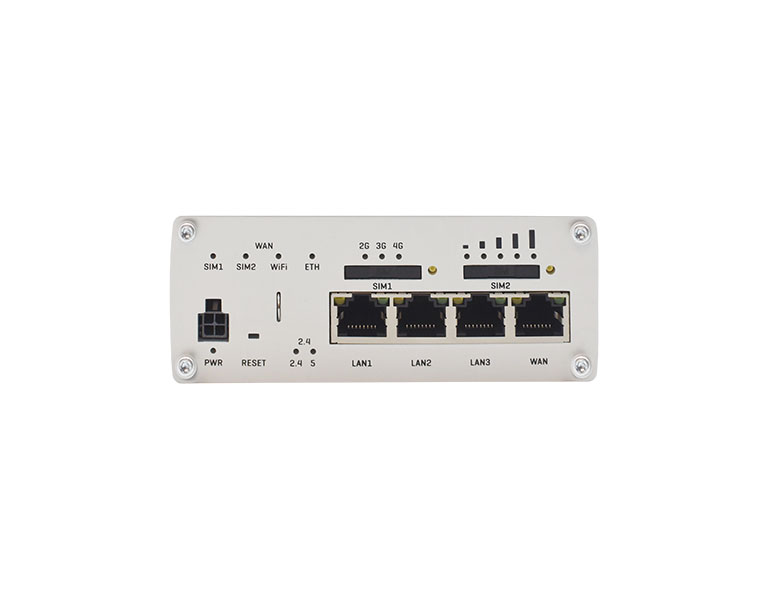

Ethernet	4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN

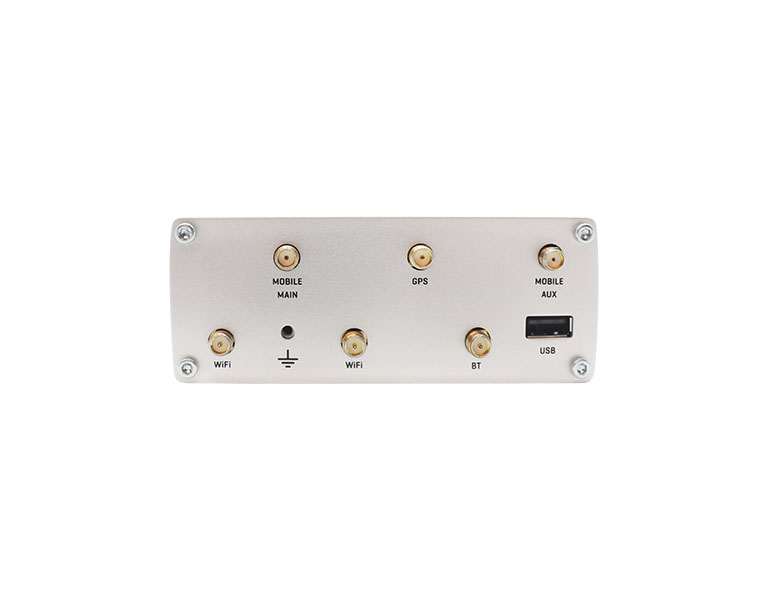

Antenna Connectors	2 x SMA for mobile 2 x RP-SMA for WiFi 1 x RP-SMA for Bluetooth 1 x SMA for GPS
SIM	2 x External SIM holders (2FF)
Bluetooth	4.0 (Low energy)
Inputs/Outputs	On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other	1 x USB host
Status LEDs	4 x WAN type 2 x Connection type 5 x Signal strength 2 x WiFi 8 x Ethernet 1 x Power
Operating temperature	-40 °C to 75 °C
Housing	Aluminium housing with DIN rail mounting option and grounding capability
Dimensions	115 x 44.2 x 95.1 mm
Weight	456 g
Software
Operating system	RutOS (OpenWrt based Linux OS)
Mobile features	Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network	Failover (Network backup), VLAN, QoS, Load Balancing
Routing	Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
VPN and tunneling	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Cloud solutions	RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot	External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
NTP	NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS	NMEA forwarding, AVL, Geofencing
Standard Package Contains	• Router RUTX11 • 18 W PSU • 2 x LTE antennas (swivel, SMA male) • 2 x WiFi antennas (swivel, RP-SMA male) • 1 x GNSS antenna (adhesive, SMA male, 3 m cable) • 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable) • Ethernet cable (1.5 m) • QSG (Quick Start Guide) • SIM Adapter kit • Packaging box
