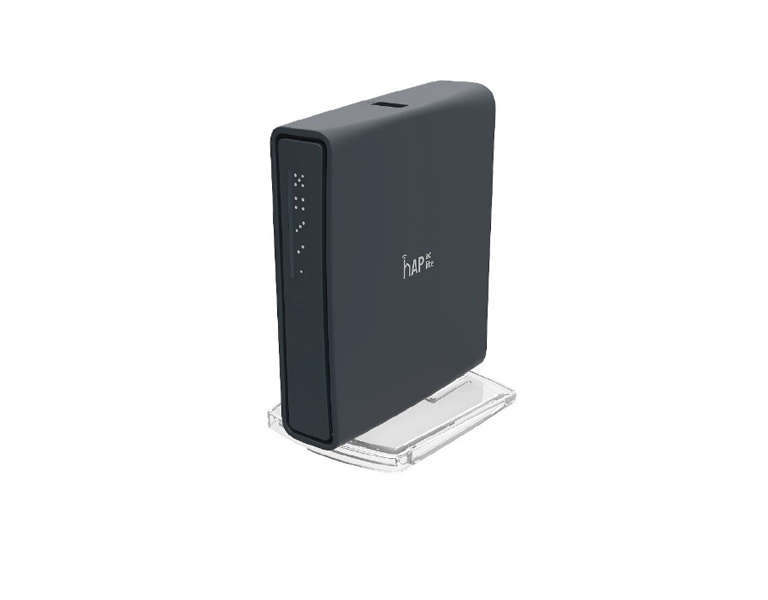

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time. New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
The hAP ac lite can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. Unit provides PoE output function for port 5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
The hAP ac lite is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RB952Ui-5ac2nD-TC |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 34 x 119 x 98mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -30°C to 70°C |
Powering | |
PoE in | Passive PoE |
PoE in input Voltage | 10-28 V |
PoE out | Passive PoE |
PoE-out ports | Ether5 |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-28 V |
Max out per port output (input < 30 V) | 500 mA |
Max total out (A) | 500 mA |
Max power consumption without attachments | 8 W |
Max power consumption | 20 W |
Wireless | |
AC speed | AC750 |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 1.5 |
Wireless 2.4 GHz chip model | QCA9531 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 433 Mbit/s |
Wireless 5 GHz number of chains | 1 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2 |
Wireless 5 GHz chip model | QCA9887 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet | |
10/100 Ethernet ports | 5 |
Peripherals | |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Certification & Approvals | |
Certification | CE, FCC, IC, EAC, ROHS |
