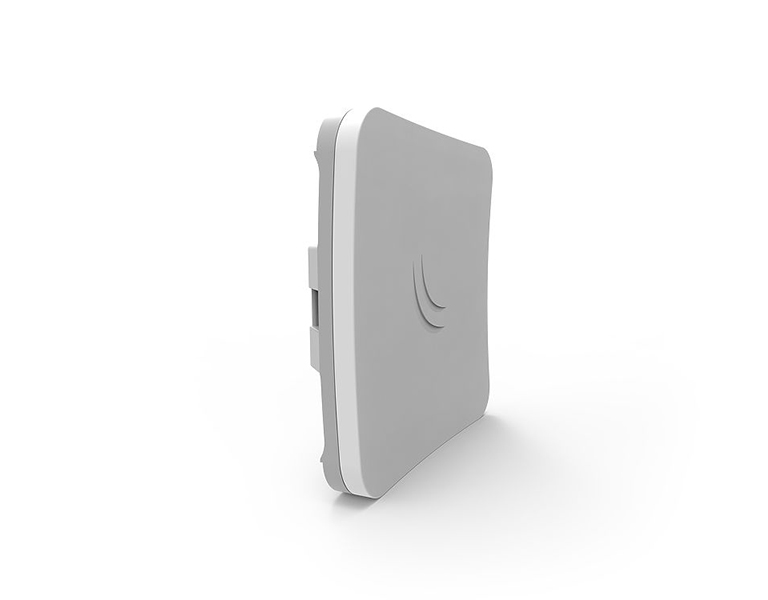

The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.
The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, the previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RBSXTsq2nD |
Architecture | MIPSBE |
CPU | QCA9533 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 129 x 129 x 34 mm |

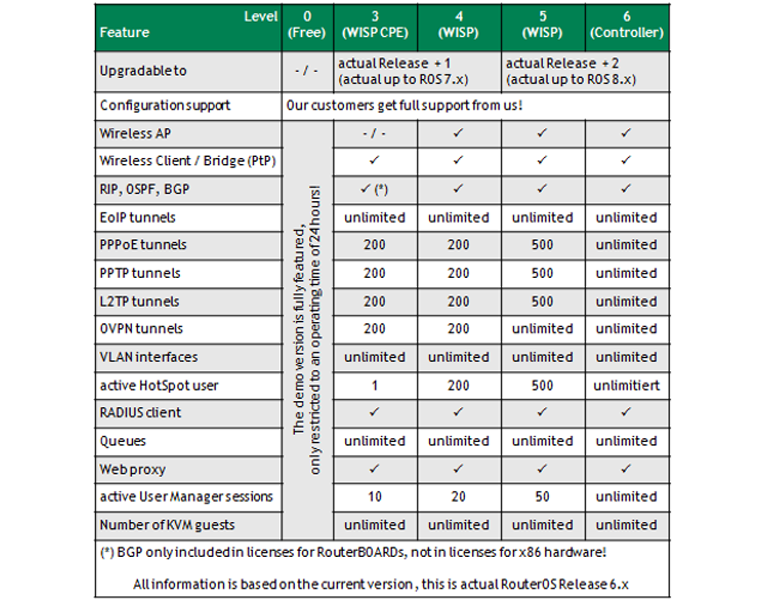

License level | 3 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering | |
PoE in | Passive PoE |
Cooling type | Passive |
PoE in input Voltage | 10-30 V |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 5 W |
Wireless | |
Operating frequency | 2412 - 2484 MHz |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 10 |
Antenna beam width | 60° |
Wireless 2.4 GHz chip model | QCA9533 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet | |
10/100 Ethernet ports | 1 |
Certification & Approvals | |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP54 |
Weight | Unit: 295 g Package: 492 g |
