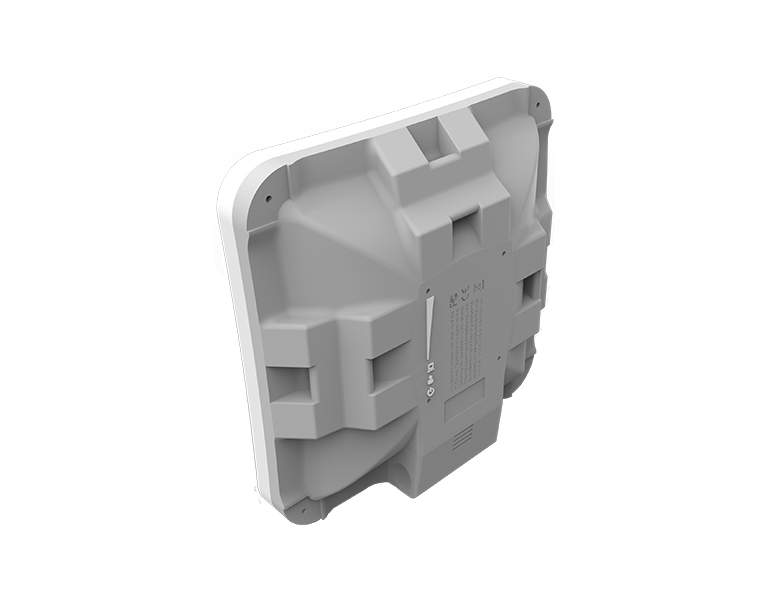

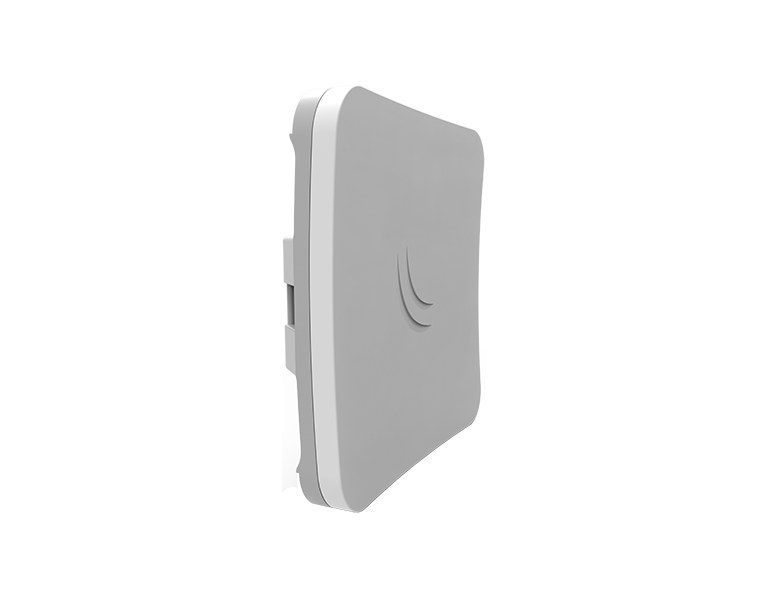

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, the previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Specifications | |
Product code | RBSXTsqG-5acD |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Dimensions | Unit: 129 x 129 x 34 mm Package: 255 x 180 x 45 mm |
Weight | Unit: 295 g Package: 492 g |
License level | 3 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Powering | |
PoE in | Passive PoE |
Cooling type | Passive |
PoE in input Voltage | 10-28 V |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 7 W |
Wireless | |
Operating frequency | 5150 - 5875 MHz |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 16 |
Antenna beam width | 23° |
Wireless 5 GHz chip model | IPQ-4018 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet | |
10/100/1000 Ethernet ports | 1 |
Certification & Approvals | |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP55 |
