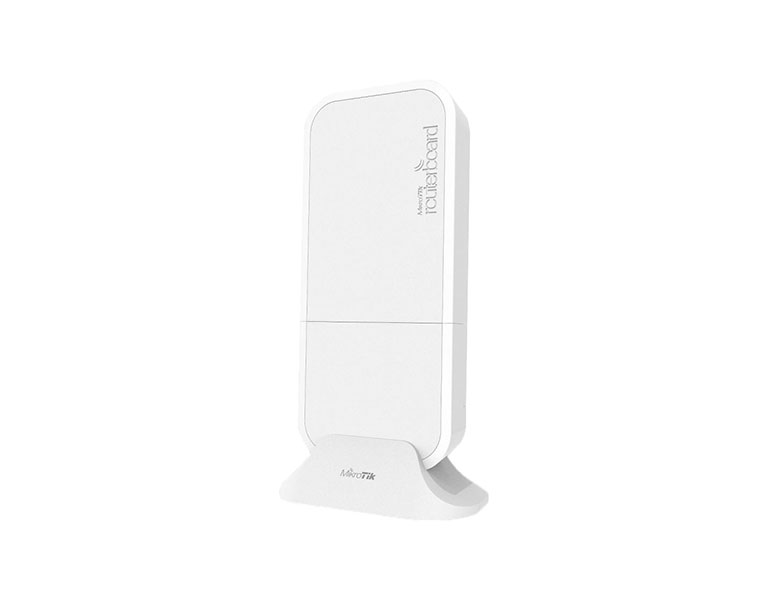

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

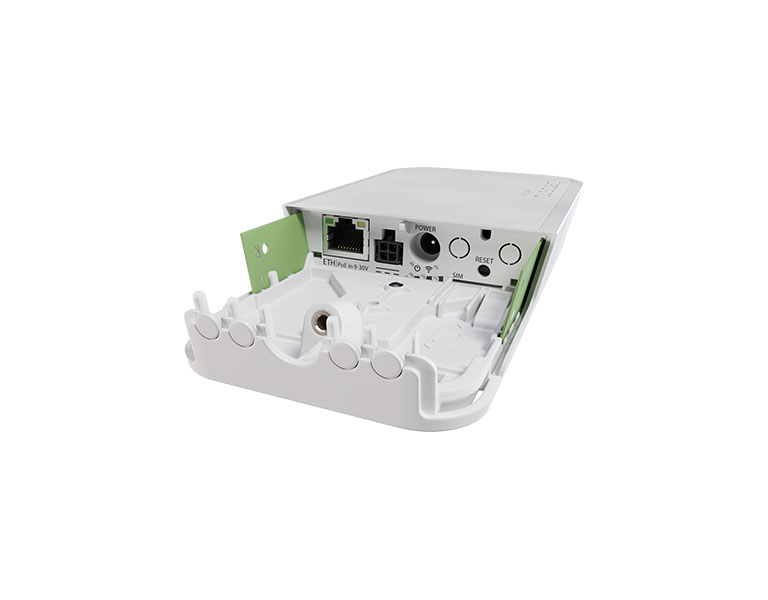

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Product code	wAPR-2nD&EC200A-EU
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz

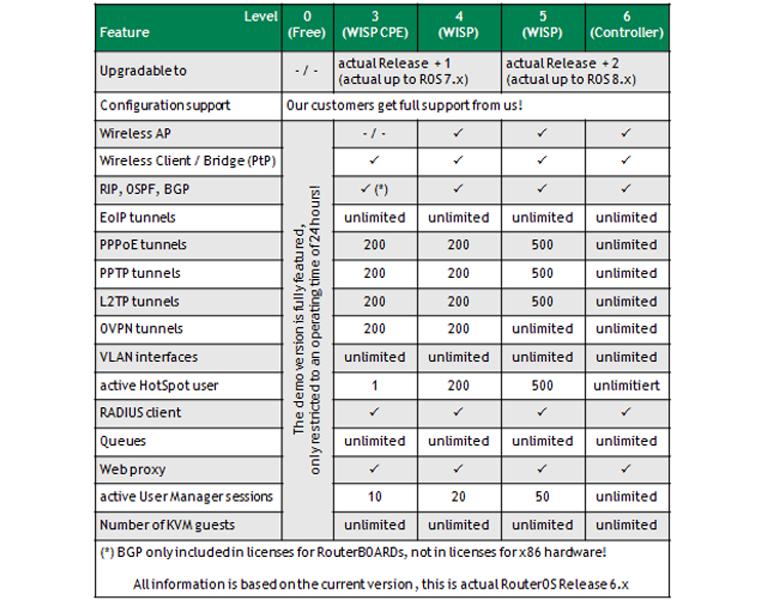

License level	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 60°C
MTBF	Approximately 100'000 hours at 25C
Powering
PoE in	Passive PoE
PoE in input Voltage	9-30 V
Number of DC inputs	3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	7 W
Cooling type	Passive
Mobile
2G Category	Class12
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands	40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
2G bands	8 (900MHz) / 3 (1800MHz)
3G bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
TAC	86314105
Wireless
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Certification	CE, E-MARK, EAC, ROHS
IP	54
