MikroTik CubeG-5ac60ay-SA CubeSA 60PRO AC, 1xGLAN, RouterOS L4
Product Code:
CUBEG-5AC60AY-SA
Manufacturer Mikrotik
Sales price:
220,00 €(Includes 24% VAT)
Sales price without TAX:177,42 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

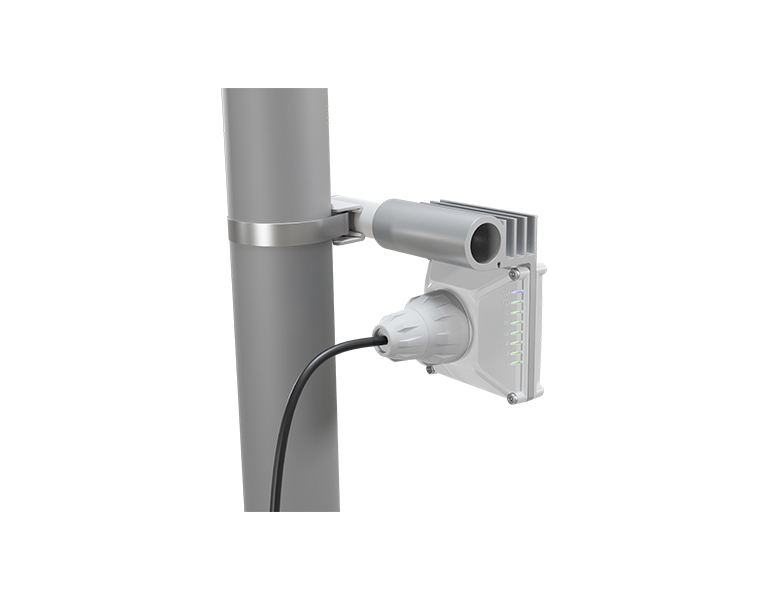

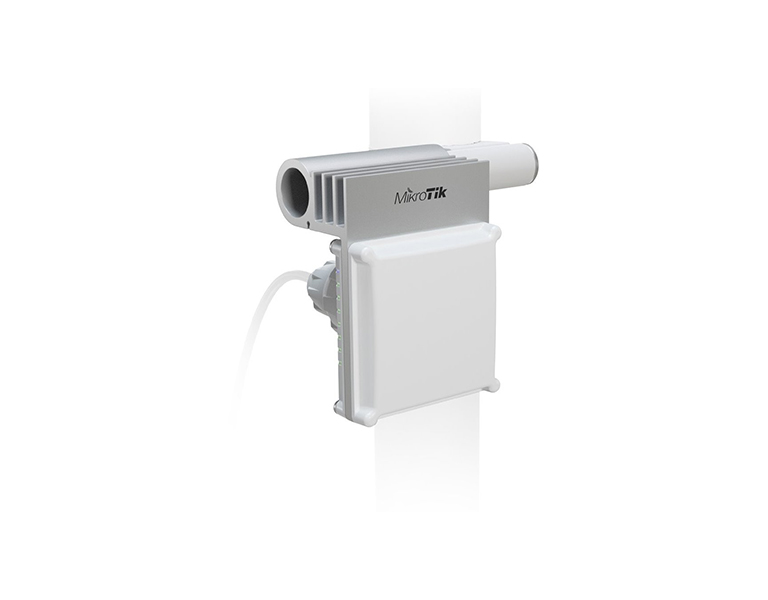

MikroTik CubeG-5ac60ay-SA CubeSA 60PRO AC, 1xGLAN, RouterOS L4
CubeSA 60Pro ac (60GHz antenna, 802.11ay wireless and 5GHz 802.11ac backup, 4 core x 716MHz CPU, 256MB RAM, 1 x Gigabit LAN port, RouterOS L4, POE, PSU) for use as an AP in Point-to-Multipoint setups for connections up to 800m.
If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.
| Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following: Regulation of Use of Radio Spectrum. EU executive decision. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Product code | CubeG-5ac60ay-SA |
| CPU | 4 core IPQ-4019 716 MHz |
| Size of RAM | 256 MB |
| Storage | 64 MB flash |
| Number of 1G Ethernet ports | 1 |
| Wireless | 5 GHz 802.11a/n/ac |
| Wireless Chains | 1 |
| Antenna gain (dBi) | 11.5 5 GHz |
| Antenna beam width | 35° 5 GHz |
| Antenna beam width at 60 GHz | 60° |
| GPS | MT3337V |
| WiGig chipset | QCA6438 |
| WiGig antenna module | SWL-QD46 |
| Supported protocol | MikroTik 802.11ad / 802.11ay |
| Max EIRP (dBm) | 40 |
| Dimensions | 115 x 211 x 90 mm |
| Operating temperature | -40°C to +70°C |
| Operating system | RouterOS, License level 4 |
| Powering | |
| PoE-in | 802.3af/at |
| Supported input voltage | 18-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| Max power consumption | 13 W |
| Certification & Approvals | |
| Certification | CE, FCC, IC |
| Package Contains | |
| Included parts | • 24 V 0.8 A power adapter • PoE injector • Hose clamp |
| Wireless specifications | ||
| Rate (5 GHz) | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 22 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 22 | -93 |
| MCS7 | 17 | -71 |
| MCS9 | 15 | -68 |
