5 GHz LTU® client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station. The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam® (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.

Features:

• Proprietary Ubiquiti LTU core processor
• 22 dBi high-gain antenna with InnerFeed® technology
• Easily integrates with LBE 5AC Gen 2 deployments
• Channel width flexibility (10/20/30/40/50 MHz bandwidth)
• Configuration management from the AP side
• Router mode support
• Frequency splitting
• Quick, Bluetooth-powered setup via the UISP Mobile app

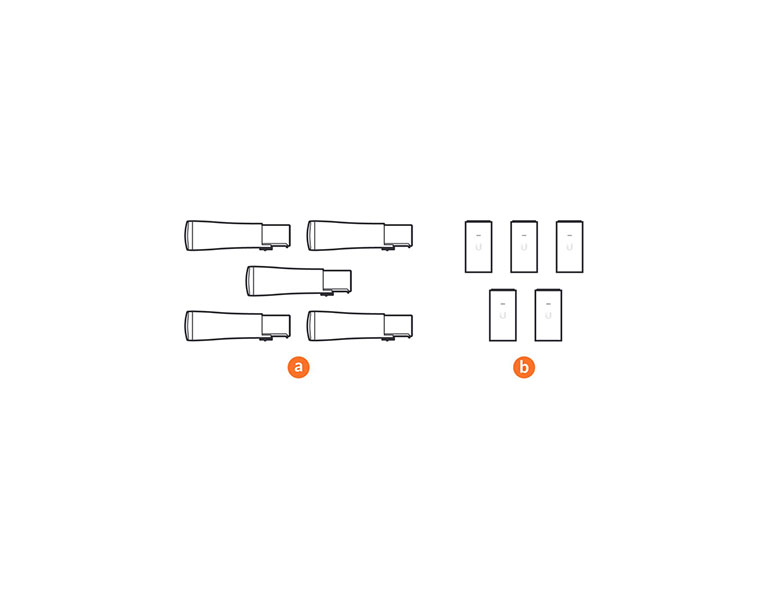

• Includes (5) feeds and (5) PoE adapters

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

Mechanical
Dimensions	Feed: 201.46 x 64.15 x 56.15 mm Antenna: 358 x 271.95 x 288.5 mm
Weight	Feed: 215 g Antenna: 890 g Antenna with mount: 1.07 kg
Enclosure material	UV-stabilized polycarbonate
Wind loading	275 N at 200 km/h
Weatherprofing	IPX6
Hardware
Networking interfaces	(1) GbE RJ45 port
LEDs	Power/Ethernet
RF connections	Internal
Max. power consumption	8.5W
Power method	Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply	24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range	22 to 26VDC
Operating temperature	-40 to 60° C
Operating humidity	5 to 95% noncondensing
Certications	FCC, IC, CE
System
Maximum throughput	550 Mbps
Encryption	WPA2-PSK (AES)
Uplink/downlink ratio	25/75, 33/67, 50/50
Software
OS	airOS
Modes	PtMP CPE only
Management interface	UISP application (web/mobile)
Minimum software requirements	A modern web browser or an iOS/Android device
RF
Operating frequency*	5.15 to 5.95 GHz *Dependent on regional regulations.
Max. conducted TX power	22 dBm (per chain)
Channel bandwidth	10/20/30/40/50 MHz
Antenna gain	22 dBi
Isolation	20 dB
