E-zy EZ-SMAM2SMAM SMA-Male to SMA-Male adapter
Product Code:
EZ-SMAM2SMAM
Manufacturer E-zy
Sales price:
2,00 €(Includes 24% VAT)
Sales price without TAX:1,61 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

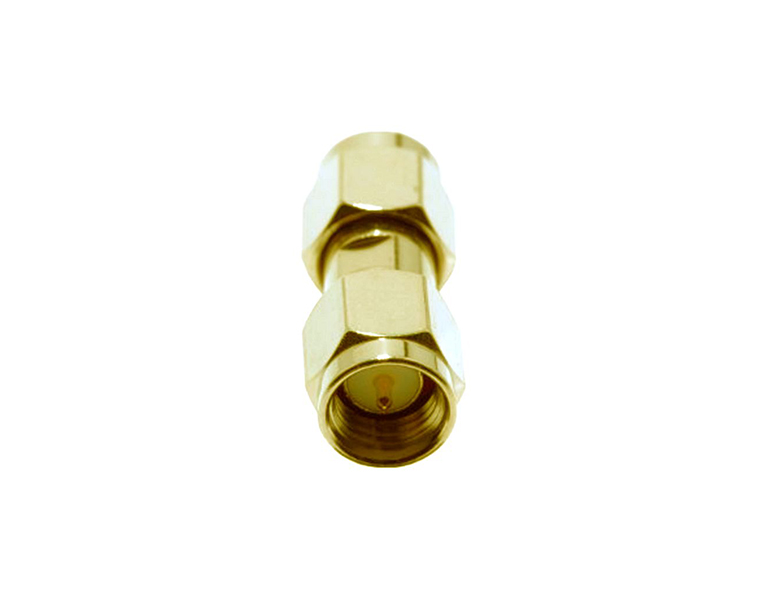

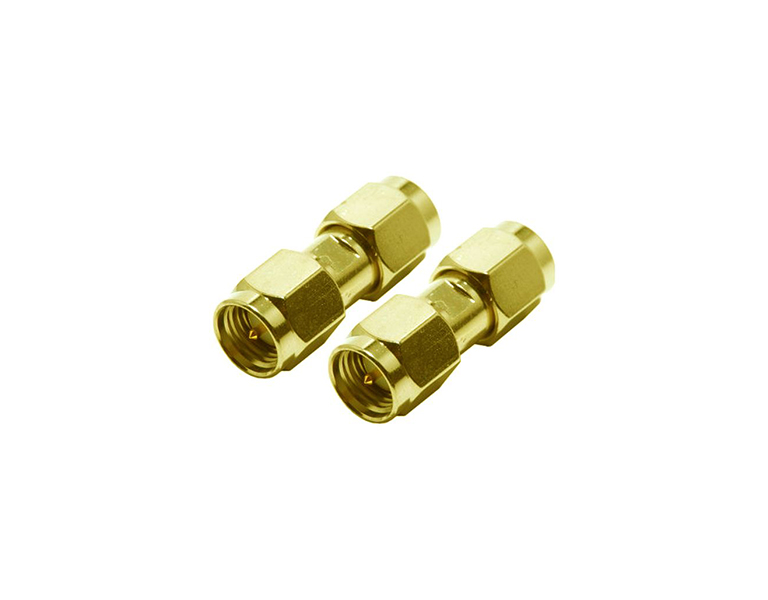

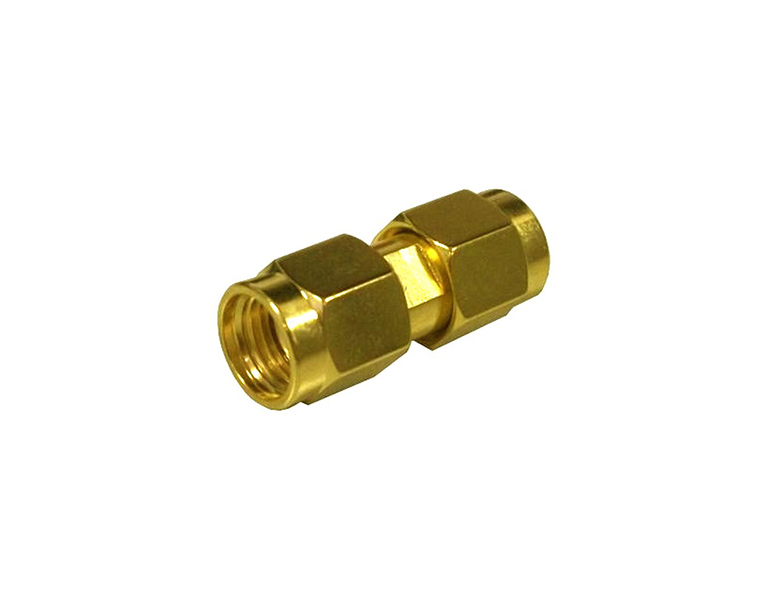

E-zy EZ-SMAM2SMAM SMA-Male to SMA-Male adapter
SMA-Male to SMA-Male adapter.
SMA to SMA Series coaxial adapters have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The SMA to SMA series adapter is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | <2,5 dB |
| Insulation Resistance | 5,000 Megohms min |
| Connector Body | Gold Plated |
| Center Pin | Gold Plated |
| Dielectric | Teflon |
| O-Ring | Not Present |
