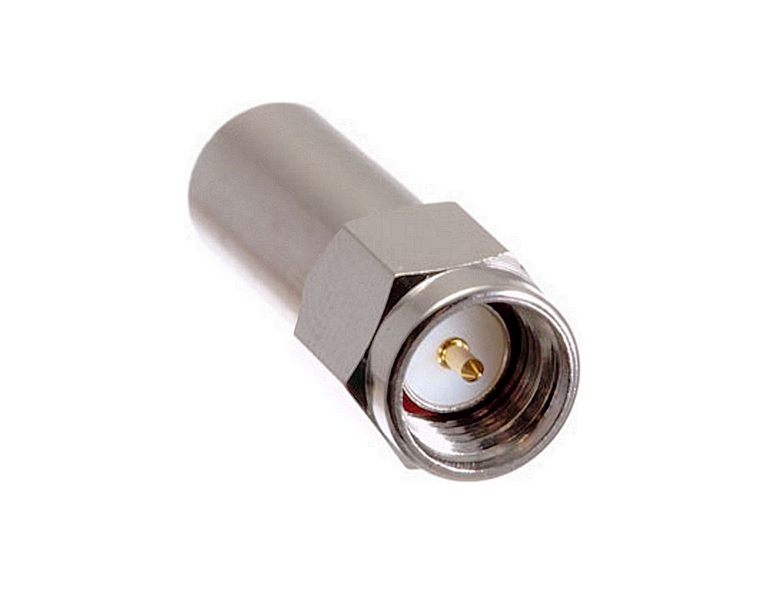

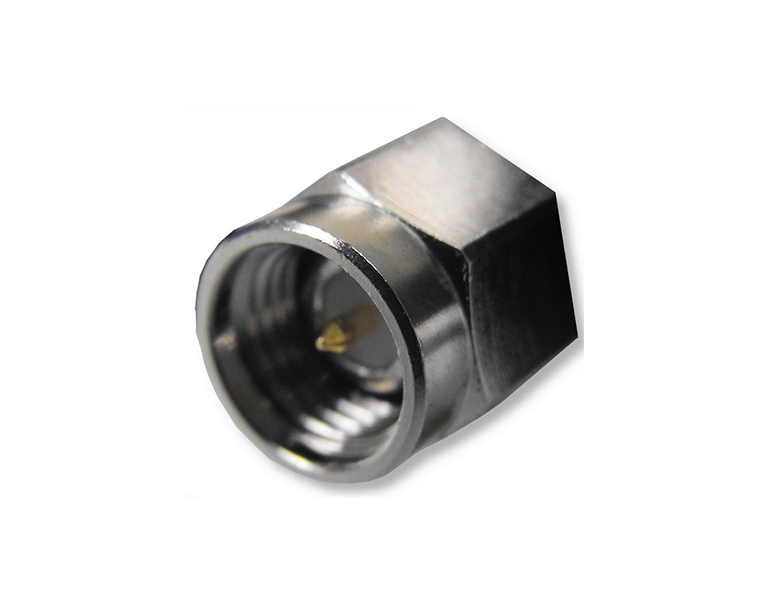

E-zy EZ-SMAM240 SMA Male Crimp connector for 240, RG-8X series cable
Product Code:
EZ-SMAM240
Manufacturer E-zy
Sales price:
2,60 €(Includes 24% VAT)
Sales price without TAX:2,10 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
E-zy EZ-SMAM240 SMA Male Crimp connector for 240, RG-8X series cable
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | 0.3 dB max at 10 GHz |
| Insulation Resistance | 5,000 Megohms min |
| Body | Brass |
| Center Pin | Bronze |
| Crimp Tube | Annealed Copper |
| Dielectric | Teflon |
