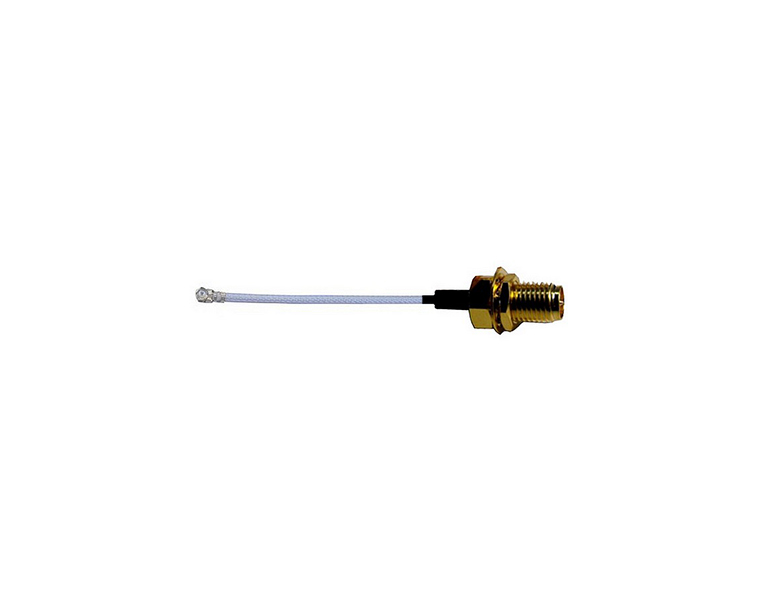

E-zy EZ-UFL2RPSMAB20 UFL/IPEX to RP-SMA Bulkhead 20cm

Product Code:
EZ-UFL2RPSMAB20
Manufacturer E-zy
Sales price: 3,00 €(Includes 24% VAT)
Sales price without TAX:2,42 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Reviews
E-zy EZ-UFL2RPSMAB20 UFL/IPEX to RP-SMA Bulkhead 20cm

UFL/IPEX to RP-SMA Bulkhead 20cm.
UFL to RP-SMA series coaxial pigtails have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. Their consistently low broadband VSWR have made them popular over the years in many applications. The UFL to RP-SMA series pigtail is impedance matched to 50 ohm cables.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss <2,5 dB
Insulation Resistance 5,000 Megohms min
Connector Body (UFL/RP-SMA) (Gold /Gold) Plated
Center Pin Gold Plated
Dielectric Teflon
O-Ring Not Present
Cable Type RG178
There are yet no reviews for this product.
