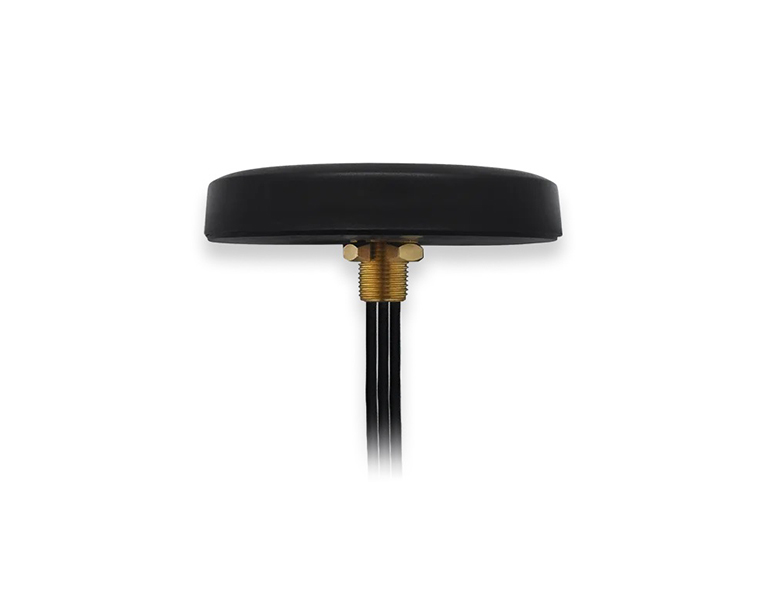

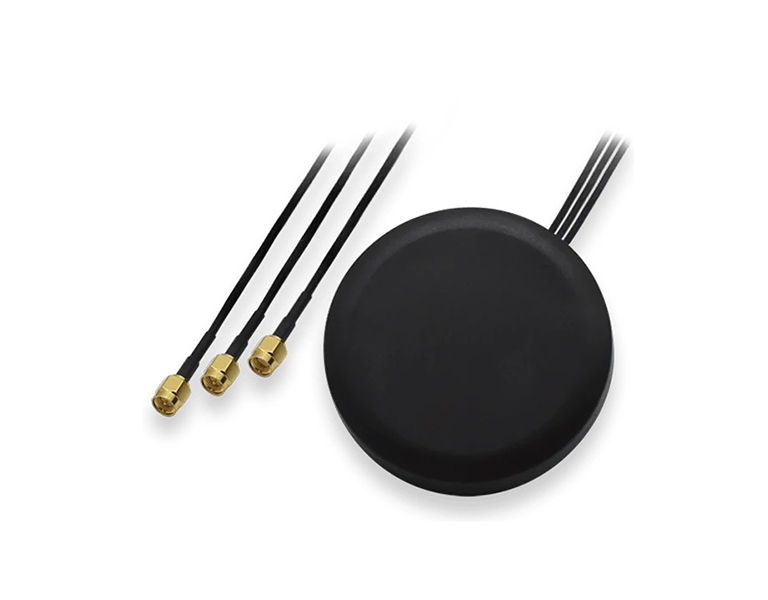

COMBO SISO Mobile/GNSS/WiFi ROOF SMA Antenna. Compatible with RUT240, RUT950, RUT955, TRB245 and TRB255.
Specifications | |
GNSS Antenna | |
Frequency Range | 698-960/1710-2690 MHz |
Polarization | Linear |
Impedance | 2.5 dBi |
LNA Gain | 2.0 dBi |
LNA Noise Figure | <3.0 |
Supply Voltage | 50 Ω |
Current Consumption | <15 mA |
LNA V.S.W.R | 50 Ω |
Connector | SMA Male |
LTE Antenna | |
Frequency Range | 850/900/1800/1900/2170 MHz |
Bandwidth | ±90/280 MHz |
Polarization | Vertical |
Gain | 3.5 dBi |
V.S.W.R | <1.5:1 |
Impedance | 50 Ω |
Connector | SMA Male |
WIFI Antenna | |
Frequency Range | 2350-2500 MHz |
Bandwidth | ±100 MHz |
Polarization | Vertical |
Gain | 2.5 dBi |
V.S.W.R | 1.5:1 |
Impedance | 50 Ω |
Connector | RP SMA Male |
Mechanical/Environmental | |

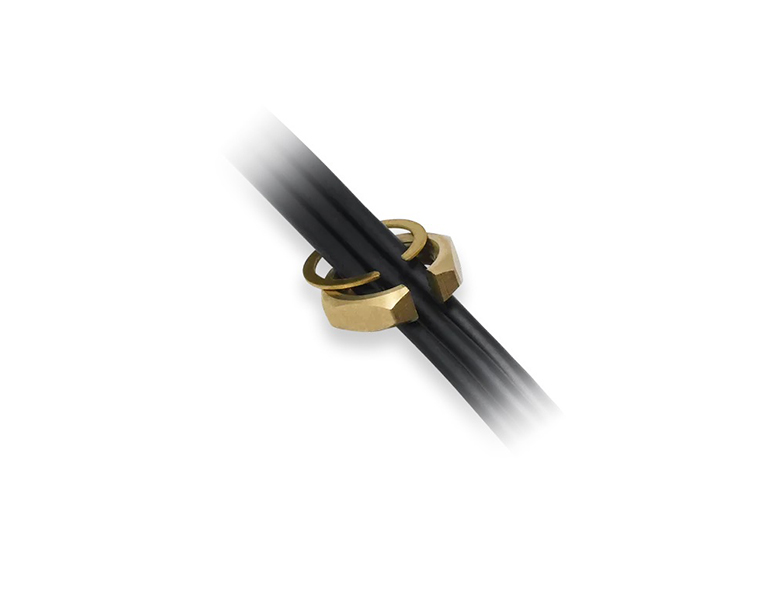

Mounting Method | Screw |
Radome Ingress Protection rating | IP65 |
Radome Material | ABS |
Weight | <250g |
Housing Dimensions | Ø 80x15 mm |
Cable | 3x RG174, 3000 mm |
RoHS Compliant | Yes |
