• Built for outdoor Wi-Fi applications
• Up to 300Mbps Wi-Fi with 2x2 MIMO technology
• High transmission power and high gain antennas provide a long-range coverage area
• Durable, weatherproof enclosure to withstand fair and foul weather
• Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
• Free cloud centralized management and Omada app for ultra convenience and easy management
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies
• Supports management vlan for an enhanced network management

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

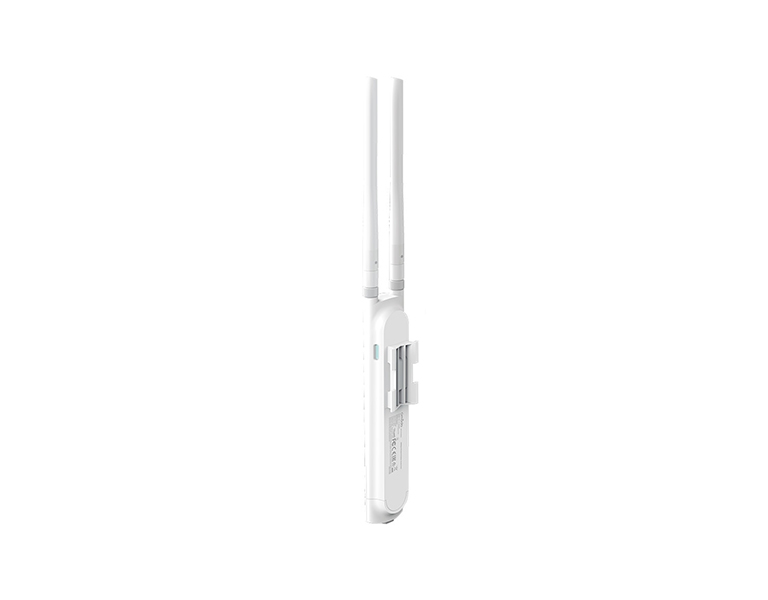

EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance
Even Better for Indoor Applications EAP110-Outdoor is just similar to a cellphone, with dimension: 215 x 46 x 27mm.

Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

Flexible Deployment
EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.

Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	24 months

HARDWARE FEATURES

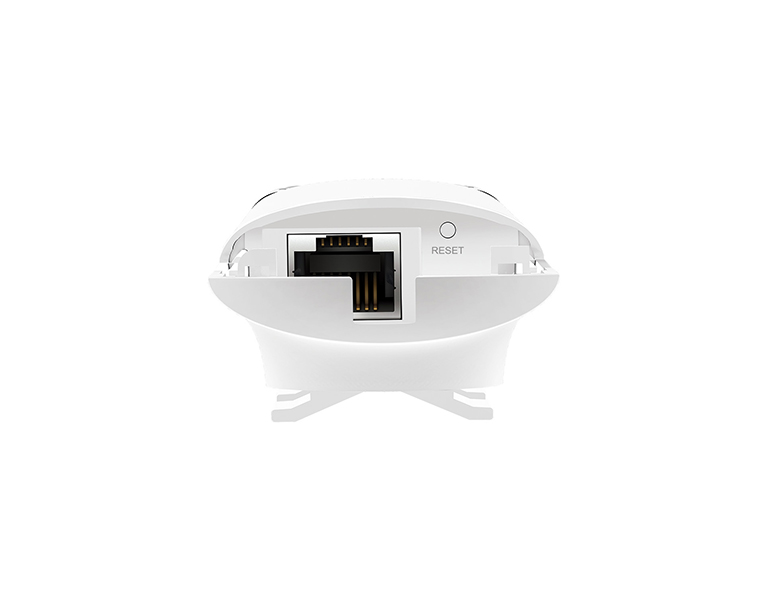

Interface	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button	Reset
Power Supply	24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	3.12 W
Dimensions ( W x D x H )	216 × 46 × 27 mm
Antenna Type	2*3dBi External Omni waterproof
Weatherproof Enclosure	IP65
Mounting	Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards	IEEE 802.11n/g/b
Frequency	2.4GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Transmit Power	CE： ≤20dBm (EIRP) FCC: ≤22dBm
Wireless Functions	Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
MANAGEMENT
Omada Cloud Access	Yes
Omada App	Yes
Omada Cloud Controller	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Omada Controller Software	Yes
Cloud Access	Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
OTHERS
Certifications	CE, FCC, RoHS
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: -30°C-65°C Storage Temperature: -40°C-70°C Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing
Package Contents	300Mbps Wireless N Outdoor Access Point,EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

*Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
